1x1 Side Entry Tab Down RJ45 Connector Female Ethernet Socket For Network Switch

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-5921WDNL

Detail Information

Product Name: RJ45 Modular Jack Gender: Female
Type: Rj45 Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc
Mount Style: PCB Mount OEM/ODM: Yes
High Light:

rj45 connector pcb

,

rj45 connector pcb mount

,

Side Entry Tab Down RJ45 Connector

Product Description

Lan Switch connector tab down RJ45 modular Jack , Network RJ 45  with 10/100 BASE

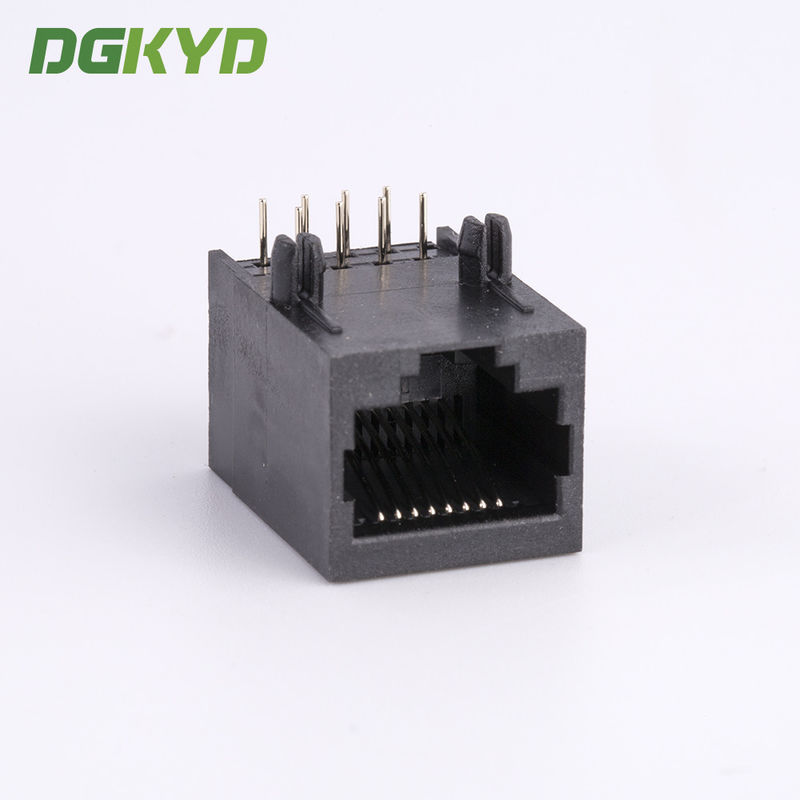

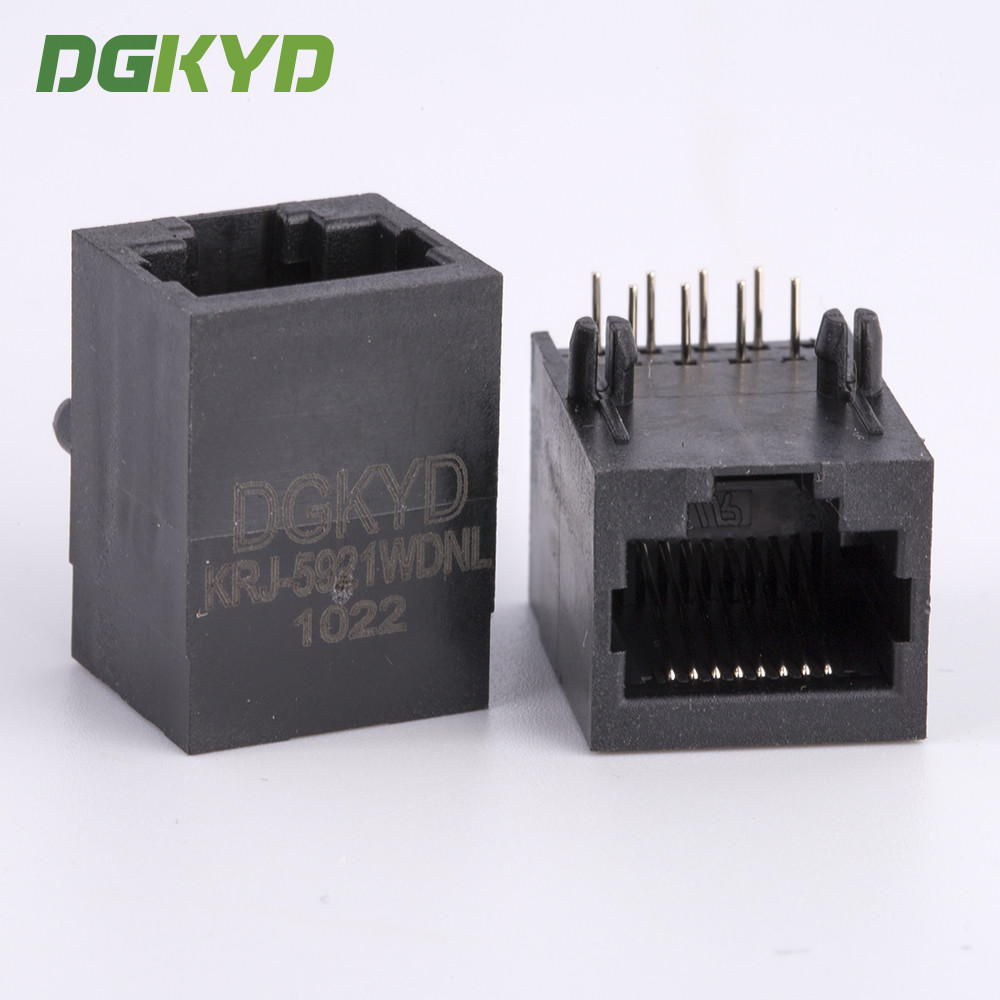

1x1 Side Entry Tab Down RJ45 Connector Female Ethernet Socket For Network Switch 0

Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) with LEDS
  • Single port 1X1 Tab-Down RJ45
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • Length:21.3m

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.
