1 X 4 port RJ45 Multiple Port Connectors Integrated magnetics 100 base-tx

China 1 X 4 port RJ45 Multiple Port Connectors Integrated magnetics 100 base-tx supplier
1 X 4 port RJ45 Multiple Port Connectors Integrated magnetics 100 base-tx supplier 1 X 4 port RJ45 Multiple Port Connectors Integrated magnetics 100 base-tx supplier 1 X 4 port RJ45 Multiple Port Connectors Integrated magnetics 100 base-tx supplier 1 X 4 port RJ45 Multiple Port Connectors Integrated magnetics 100 base-tx supplier 1 X 4 port RJ45 Multiple Port Connectors Integrated magnetics 100 base-tx supplier 1 X 4 port RJ45 Multiple Port Connectors Integrated magnetics 100 base-tx supplier

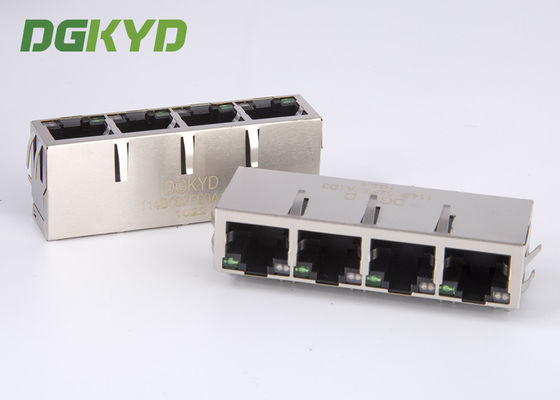

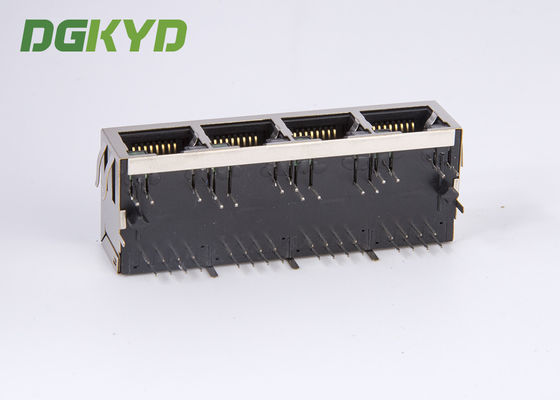

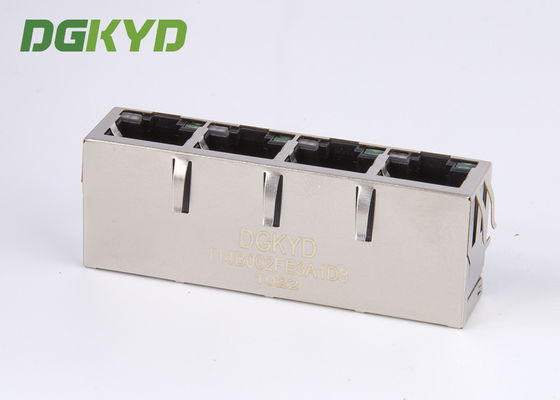

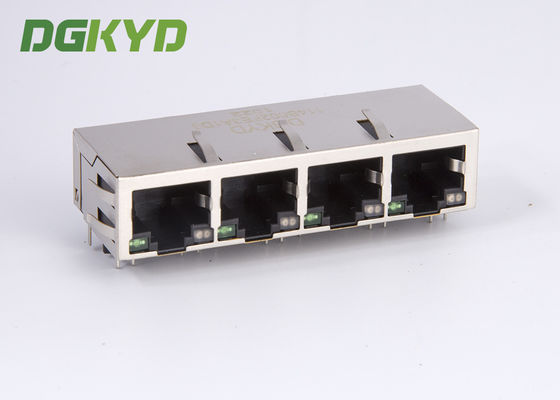

Large Image :  1 X 4 port RJ45 Multiple Port Connectors Integrated magnetics 100 base-tx

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: DGKYD114B002FE3A1D3

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Shielded: YES Product Name: 4-Port RJ45
Number Of Positions: 8 Number Of Contacts Loaded: 8
Application: 10/100M Net Card,PCMCIA Net Card Performance: CAT 5

Shieded RJ45 Multiple Port Connectors Integrated 100 BASE magnetics 1 x 4



  • 10/100Base-Tx RJ45 4 port 1X4 Side Entry (Right Angle) with LEDS
  • 4 port 1X4 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:YES
  • EMI:YES
  • LEFT/Green,RIGHT/Yellow

1 X 4 port RJ45 Multiple Port Connectors Integrated magnetics 100 base-tx

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL/ADSL and so on.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
