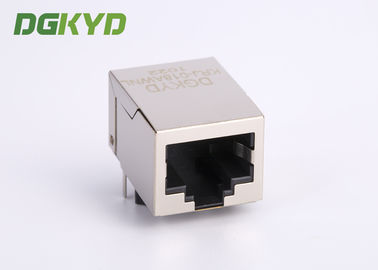

Single Port Cat5 Ethernet Connector RJ45 Network Magnetic Jack Factory Supply

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-018AWNL

Detail Information
Speed:	100BASE-TX	Latch:	Tab Down
PCB MOUNT ANGLE:	Side Entry	PACKAGE:	THT
High Light:	gigabit ethernet rj45 , poe rj45 connector , Single Port Cat5 Ethernet Connector

Product Description

Single Port RJ45 Ethernet Connector RJ45 Network Jack female connector

ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	YES
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	NONE
LATCH ORIENTATION	LATCH DOWN
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD 6U'' PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Single Port Cat5 Ethernet Connector RJ45 Network Magnetic Jack Factory Supply 0

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,

internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

For example:

Single Port Cat5 Ethernet Connector RJ45 Network Magnetic Jack Factory Supply 3

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,
