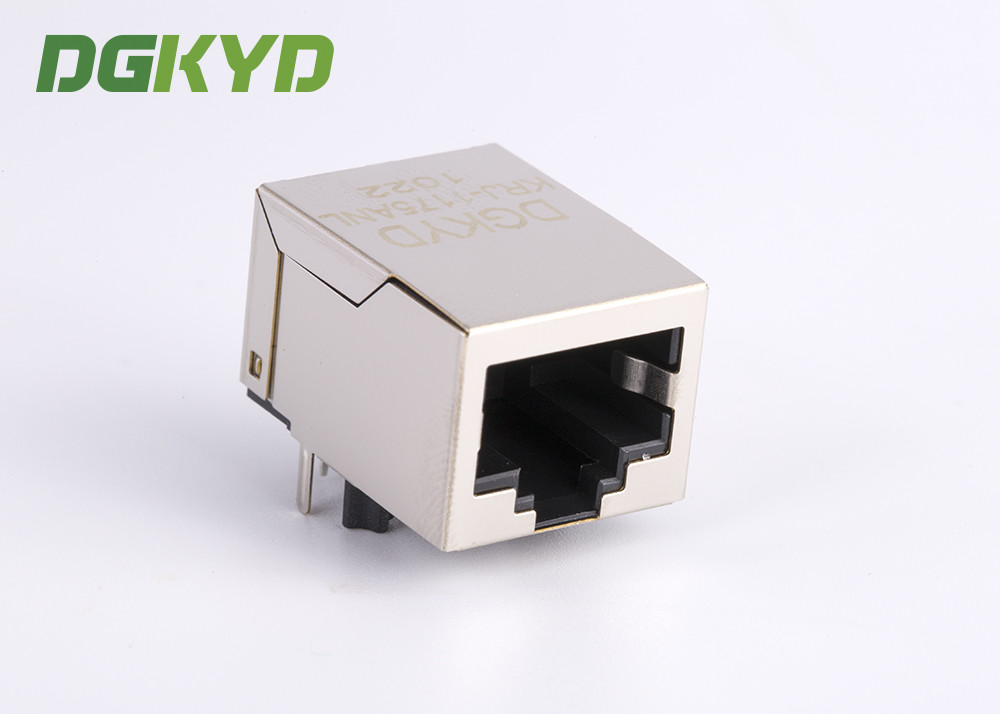

Large Image :  100 megabit RJ45 Magnetics modular jack, Single Port network cable connector rj45

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-1175ANL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
LED Color: Green & Yellow Contact Plating: Glod Plating 6u/15u/30u/50u
Housing Material: PBT Polyester Filter: With Filter
Latch: Tab Down Main Existing Cooperation Customers: JABIL/Panasonic/FOXCONN/Coampal/HUAWEI/ZTE



DESCRIPTION

100 megabit RJ45 Magnetics modular jack, Single Port network cable connector rj45

ELECTRICAL
Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
High performance for maximum EMI suppression
350uH minmum OCL with 8mA bias current
1.Current Rating 1.5 amps
2.Voltage Rating 125vac
3.Insulation Resistance 500 MΩmin
4.Contact Resistance 30 MΩmax
5.Withstanding Voltage AC 1500V RMS 50Hz or 60Hz 1 min
Instertion Loss: -1.2dB Maximum @100KHz-100MHz
Return Loss: -18dB Minimum @1MHz-30MHz
-14dB Minimum @30MHz-60MHz
-12dB Minimum @60MHz-80MHz
Common Mode Rejection: -30dB Minimum @1MHz-100MHz
Cross Talk: -30dB Minimum @1MHz-100MHz
MECHANICAL
1.Insertion Force 2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g
8 CONTACTS….900g 10 CONTACTS....1050g
2.Retention Strength 7.7KG.F min between jack and plug
3.Durability 800 mating cycles min
MATERIAL
1.Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness
phosphor bronze alloy selective gold plating over nickel
3.Shield 0.20~0.25mm thickness brass with tin plated
4.Gold Plating 6u inch,15u inch,30u inch,50u inch
5.LED Specification LED Color: LED Wavelength: Forward(V MAX): Typical (V TYP): Luminous Intensity:
Green 560-580 nm 2.5V 2.1-2.2V 9-25 MCD
Yellow 580-610 nm 2.5V 2.1-2.2V 9-30 MCD
LED intensity/wave length measured with Photo Research PR-650 Colormeter
With a forward current of 20 mA,Absolute Maximum Ratings (Ta=25°C)
6.RoHS peak wave solder RoHS peak wave solder temperature rating 240°C±5°C
ENVIRONMENTAL
Operating Temperature: -40°C to 85°C
Working Temperature -40°C to 85°C



  • 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with side entry
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Length:21.3mm(0.85inch)
  • EMI fingers:NO
  • LEFT LED:Green,RIGHT LED:Yellow

Integrated RJ45 connector main used to :
10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,
internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.
