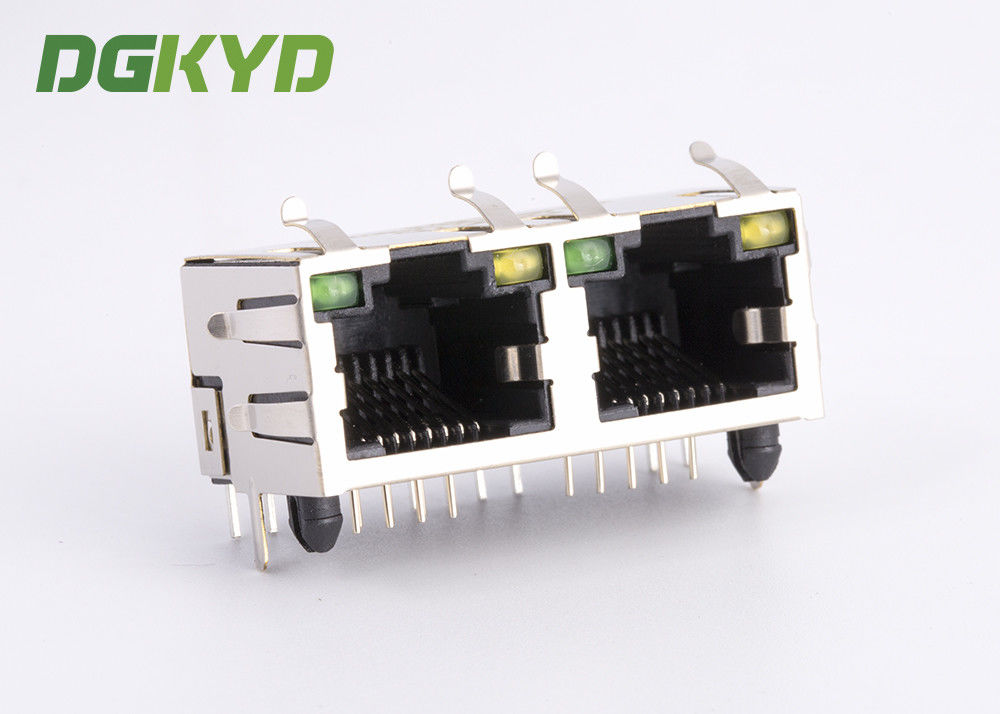

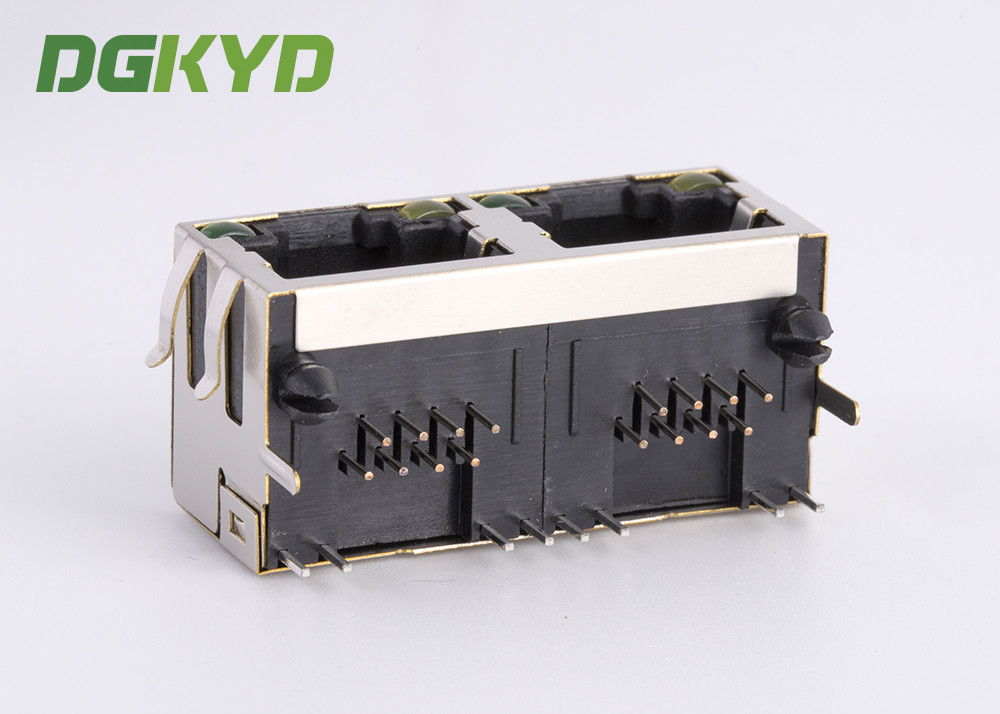

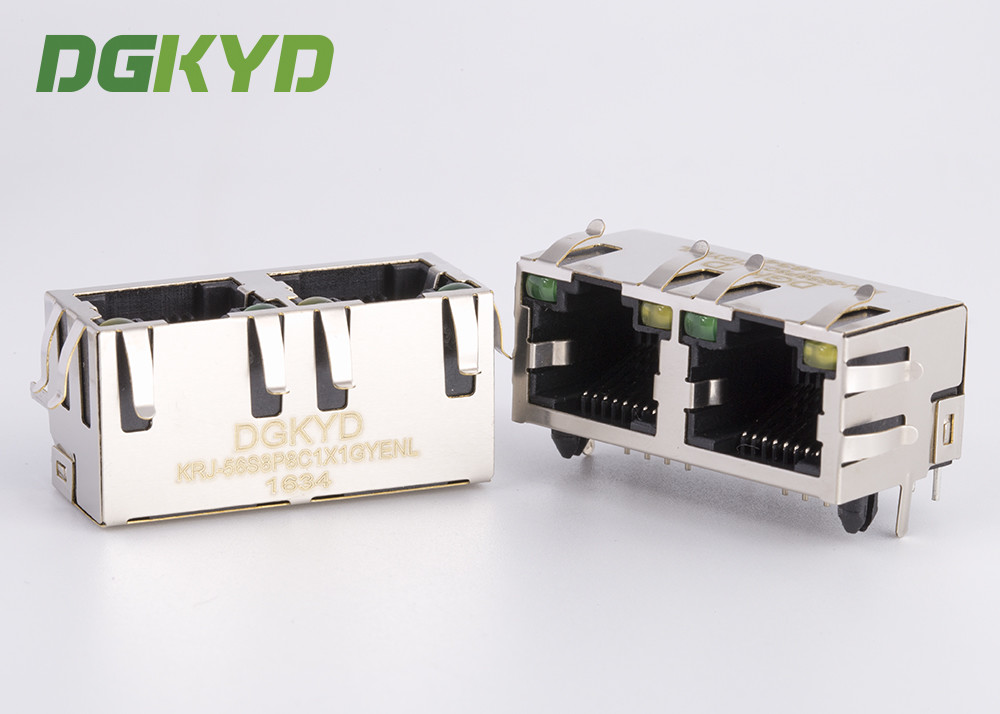

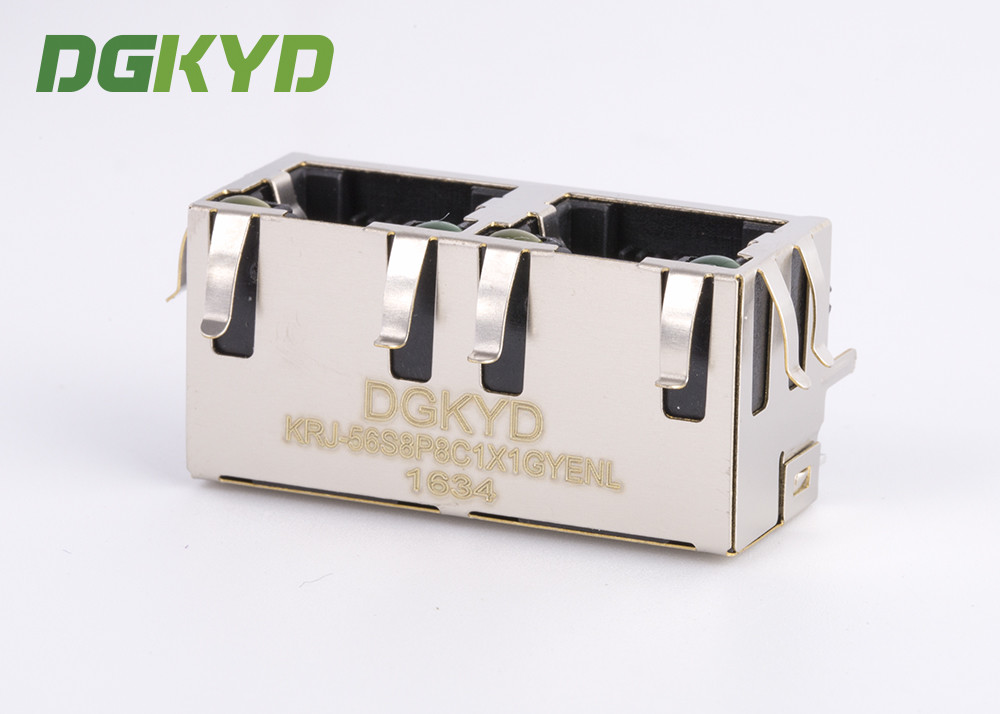

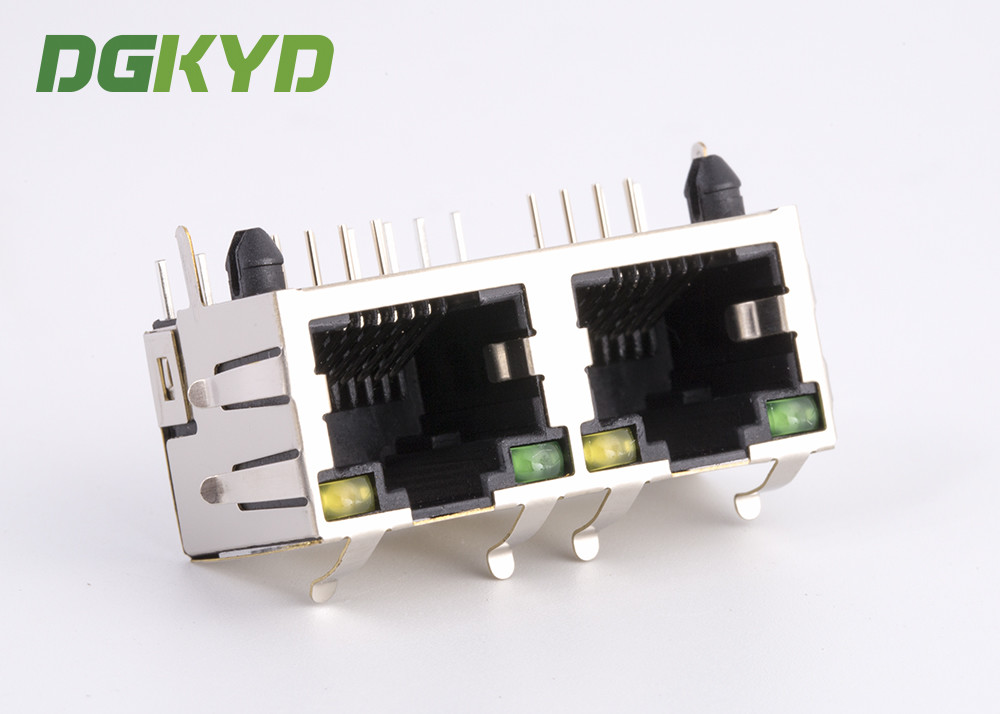

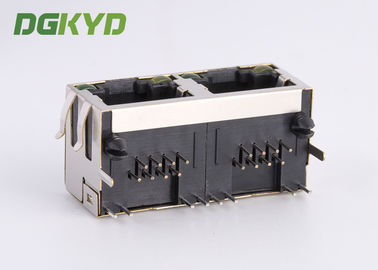

Factory customized 15.75mm depth shield 2 Port RJ45 ethernet jack with LEDs

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin : DongGuan of China Brand Name : DGKYD
Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number : KRJ-56S8P8C1x2GYENL

Detail Information

Product Name: 2-Port RJ45 Jack Shieded: YES
Number Of Positions: 8 Number Of Contacts Loaded: 8
Application: Set-top Box,internet Camera,net Bridge Latch: Tab Up

Product Description

Factory customized 15.75mm depth shield right angle tab up 2 Port RJ45 ethernet jack with LEDs

Factory customized 15.75mm depth shield 2 Port RJ45 ethernet jack with LEDs



Descriptions:

  • 10/100/1000Base-Tx RJ45 2 port 1X4 Side Entry (Right Angle) with LED
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • LEDS: YES

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 0.6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver, IP phone,internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL/ADSL and so on.
