Shielded Tab Up cat6 1000BASE magnetics RJ45 Connector with Double USB 2.0 PORT

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-1001USB2NL

Detail Information

Performance: CAt6 Connector Type: Magnetic RJ45 With Dual Deck USB
High Light:

usb rj45 connector

,

rj45 to usb connector

Product Description

Shielded Tab Up cat6 1000BASE magnetics RJ45 Connector with Double USB 2.0 PORT

P/N:KRJ-1001USB2NL

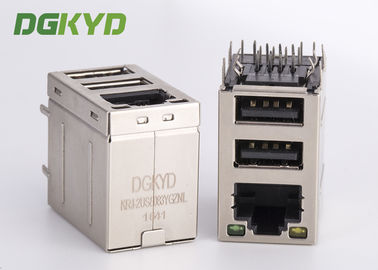

Shielded Tab Up cat6 1000BASE magnetics RJ45 Connector with Double USB 2.0 PORT 0

Descriptions:

  • 10/100/1000Base-Tx RJ45 single port with LEDS with two USB
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:29.0mm
  • LEDS:YES
  • EMI finger:NO
  • LEFT:Green,RIGHT:Yellow
  • Usage:KRJ-1001USB2NL

Applications:

• Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver, IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA, DSL/ADSL and so on.

For example:

Shielded Tab Up cat6 1000BASE magnetics RJ45 Connector with Double USB 2.0 PORT 1



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
