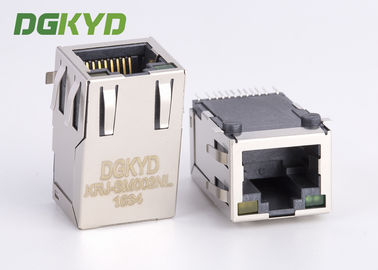

Metal Shielded 100MB RJ45 integrated magnetics connector module with POE Single Port Tap Up

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD211B072CA1A5D

Detail Information

Modular Jack: RJ45 With Integrated Magnetics Port Configuration: Single
Port Matrix Configuration: 1x1 Connector Style: Jack
Shielded: Yes Performance Category: Cat 5

Product Description

100M RJ45 Single Port Tap Up with Shielded  RJ45 with integrated magnetics

  • 10/100Base-Tx RJ45 single port 1X1 with LEDS
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement



Metal Shielded 100MB RJ45 integrated magnetics connector module with POE Single Port Tap Up



RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,

IP phone, internet set top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,

DSL/ADSL and so on.

For example:

Metal Shielded 100MB RJ45 integrated magnetics connector module with POE Single Port Tap Up
