1x1 Single Port 90 Degree 8P8C RJ45 Jack 10/100Base With Transformer Customized RJ45 With Transformer

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-0042GYNL

Detail Information

SPEED: 100BASE-TX LED OPTION: G/Y
CONTACT MATING AREA PLATING: GOLD 6 U'' PCB MOUNT ANGLE: SIDE ENTRY
High Light:

panel mount rj45 connector

,

surface mount rj45 connector

,

1x1 Single Port 8P8C RJ45 Jack

Product Description

Network 90 Degree RJ45 8P8C 10/100Base Tab Down Transformer

ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION G/Y
LATCH ORIENTATION LATCH DOWN
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK

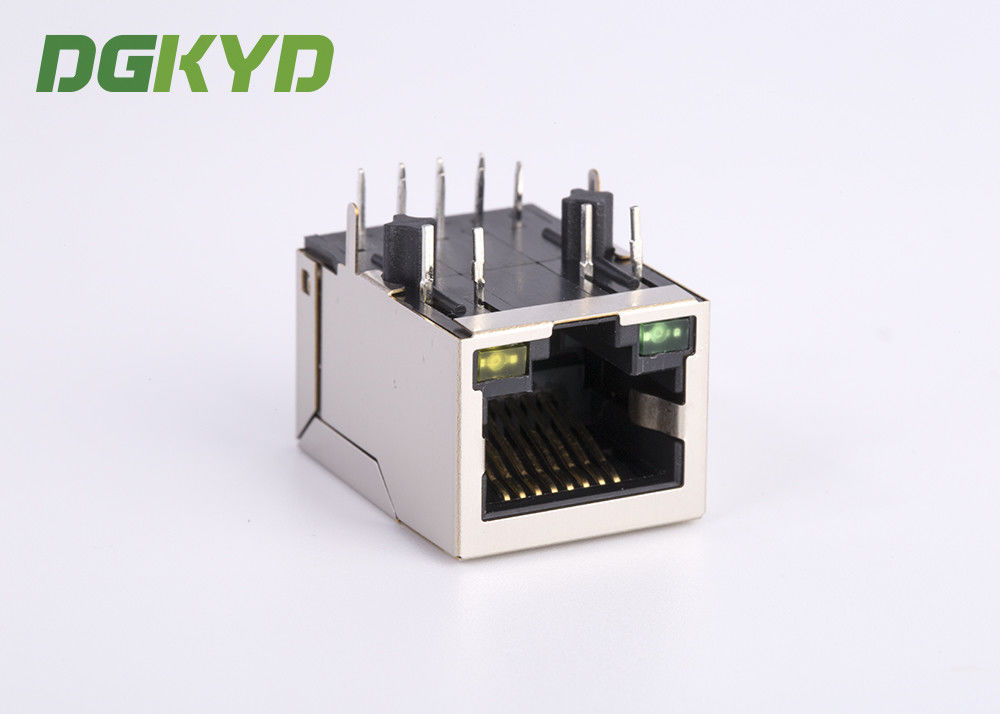

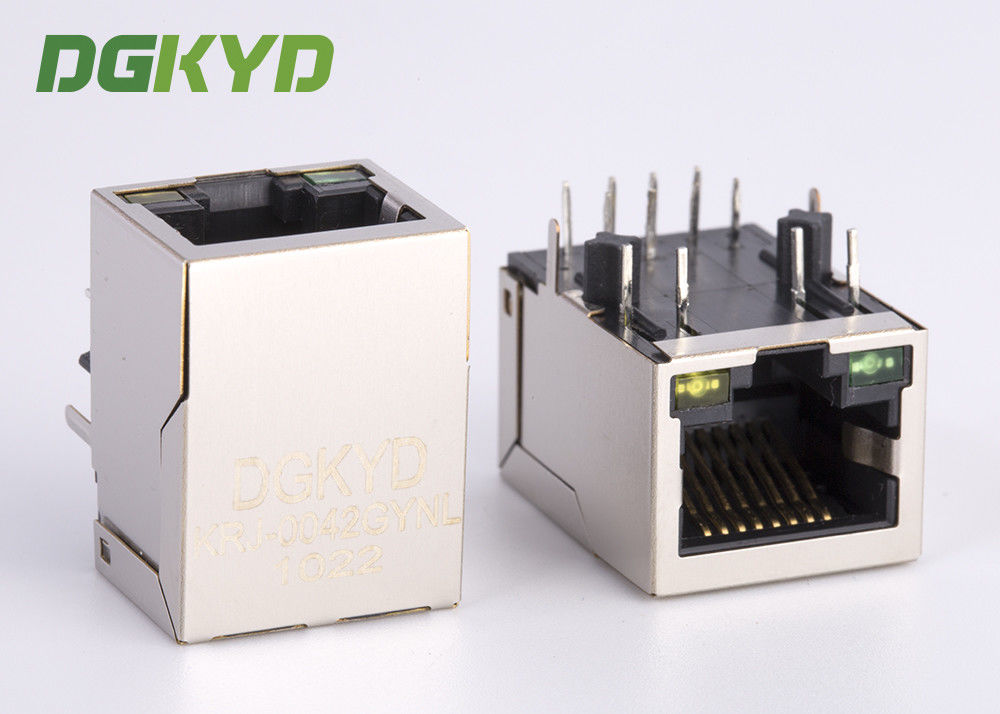

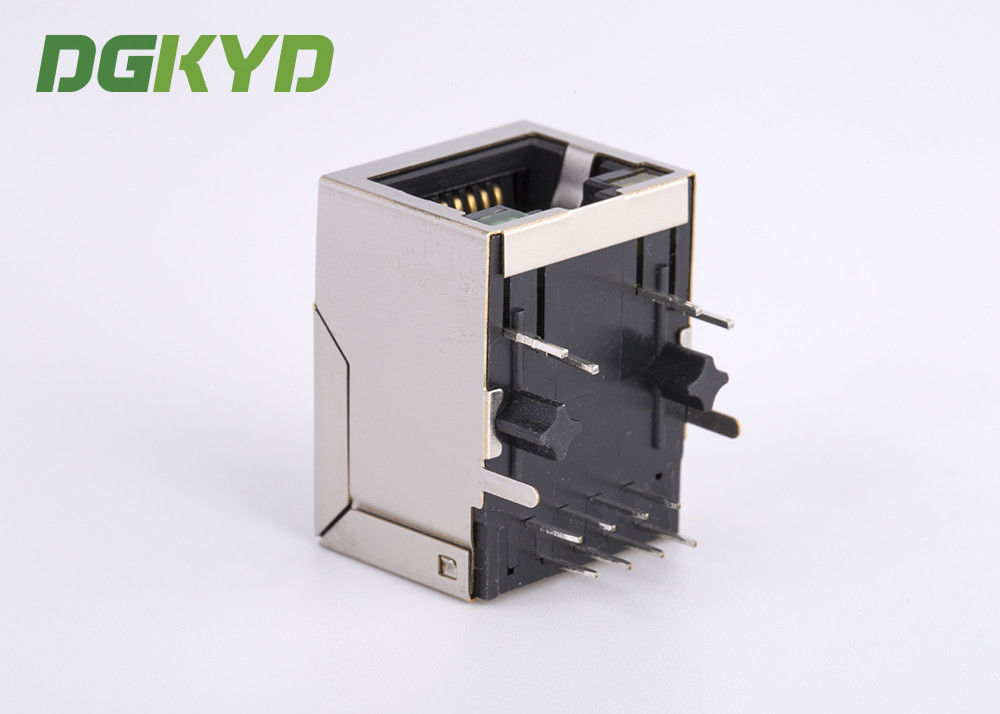

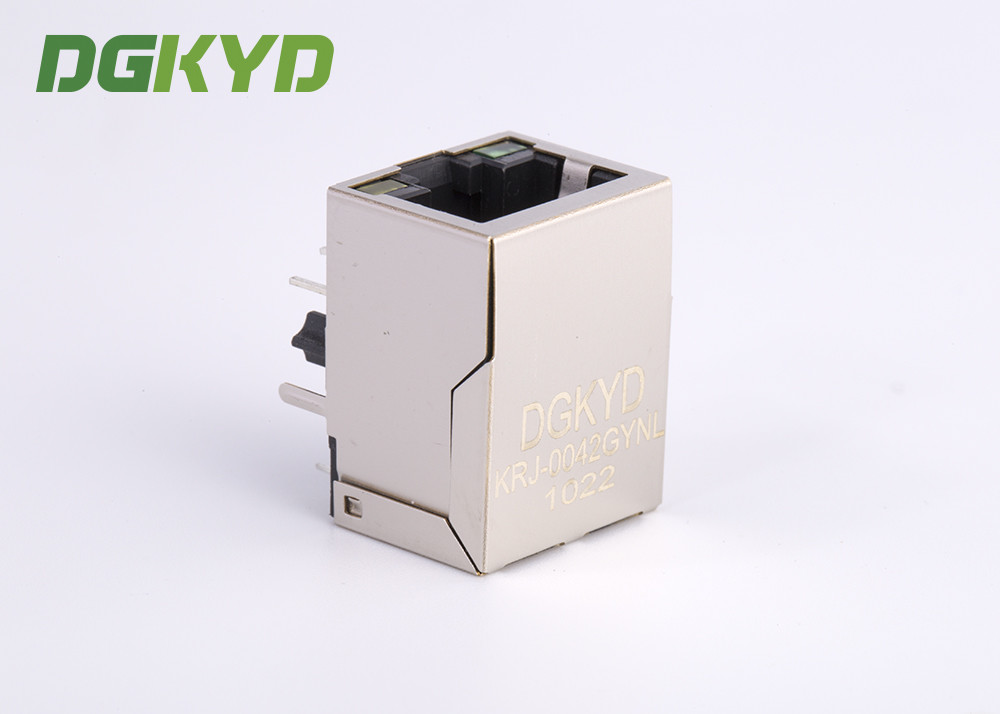

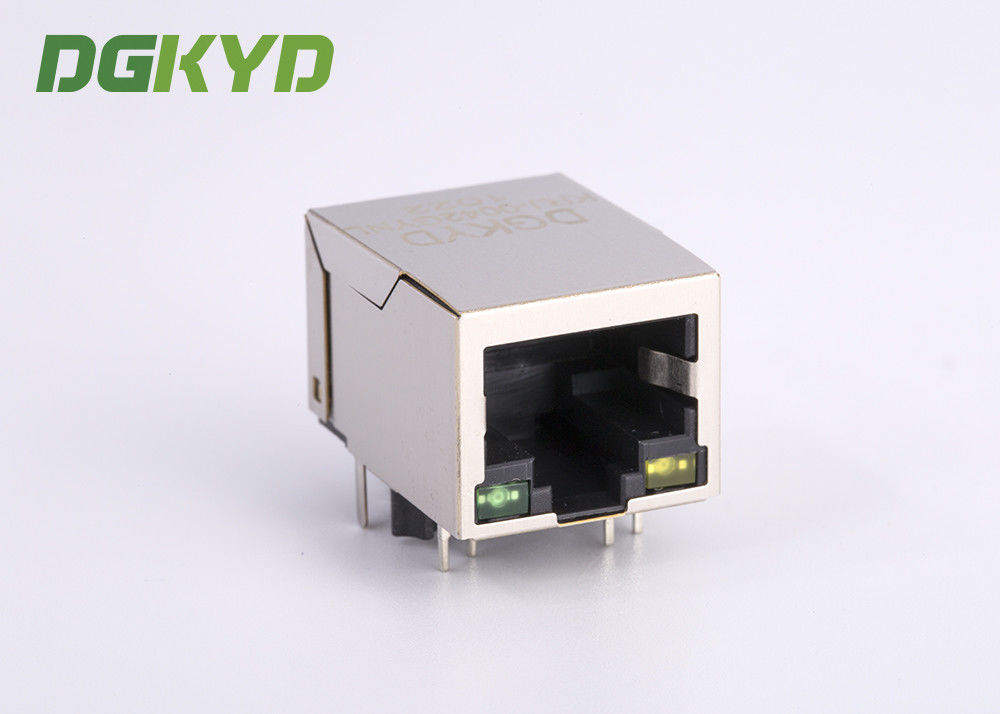

1x1 Single Port 90 Degree 8P8C RJ45 Jack 10/100Base With Transformer Customized RJ45 With Transformer 01x1 Single Port 90 Degree 8P8C RJ45 Jack 10/100Base With Transformer Customized RJ45 With Transformer 11x1 Single Port 90 Degree 8P8C RJ45 Jack 10/100Base With Transformer Customized RJ45 With Transformer 2



Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL/ADSL and so on.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
