RJ45 Connector 1X1 10P8C With Shielded Communication Interface DGKYD5621118GWA2D1Y3
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 4800Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD561488AB1A3DY1027 |
|
Detail Information |
|||
| Product Type: | RJ45 Connector | Voltage Rating: | Jack |
|---|---|---|---|
| PCB Mount Style: | DIP | Shape: | Rectangle |
| Number Of Positions/Contacts: | 8p8c (RJ45, Ethernet) | Filter: | Without Filter |
| Latch: | TAB-UP | Gold Plating On Contact Pins: | G/FU |
| Operating Temperature: | - 40 ℃ ~ 85 ℃ | Storage Temperature: | - 40 ℃ ~ 85 ℃ |
| High Light: | RJ45 Multi Port Socket 8p8,RJ45 Socket 8p8 Connector,RJ45 Four Port Direct Plug Connector |
||
Product Description

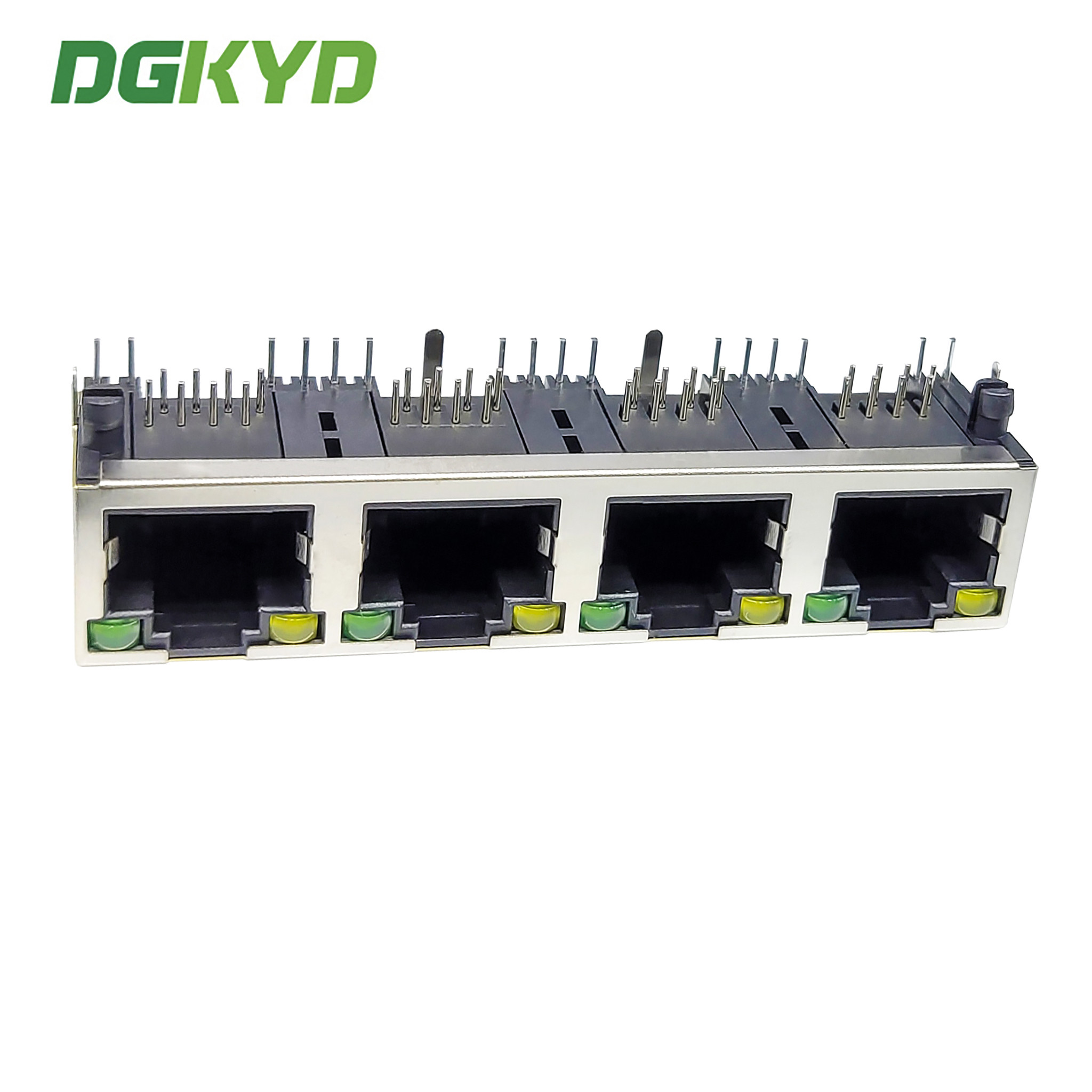

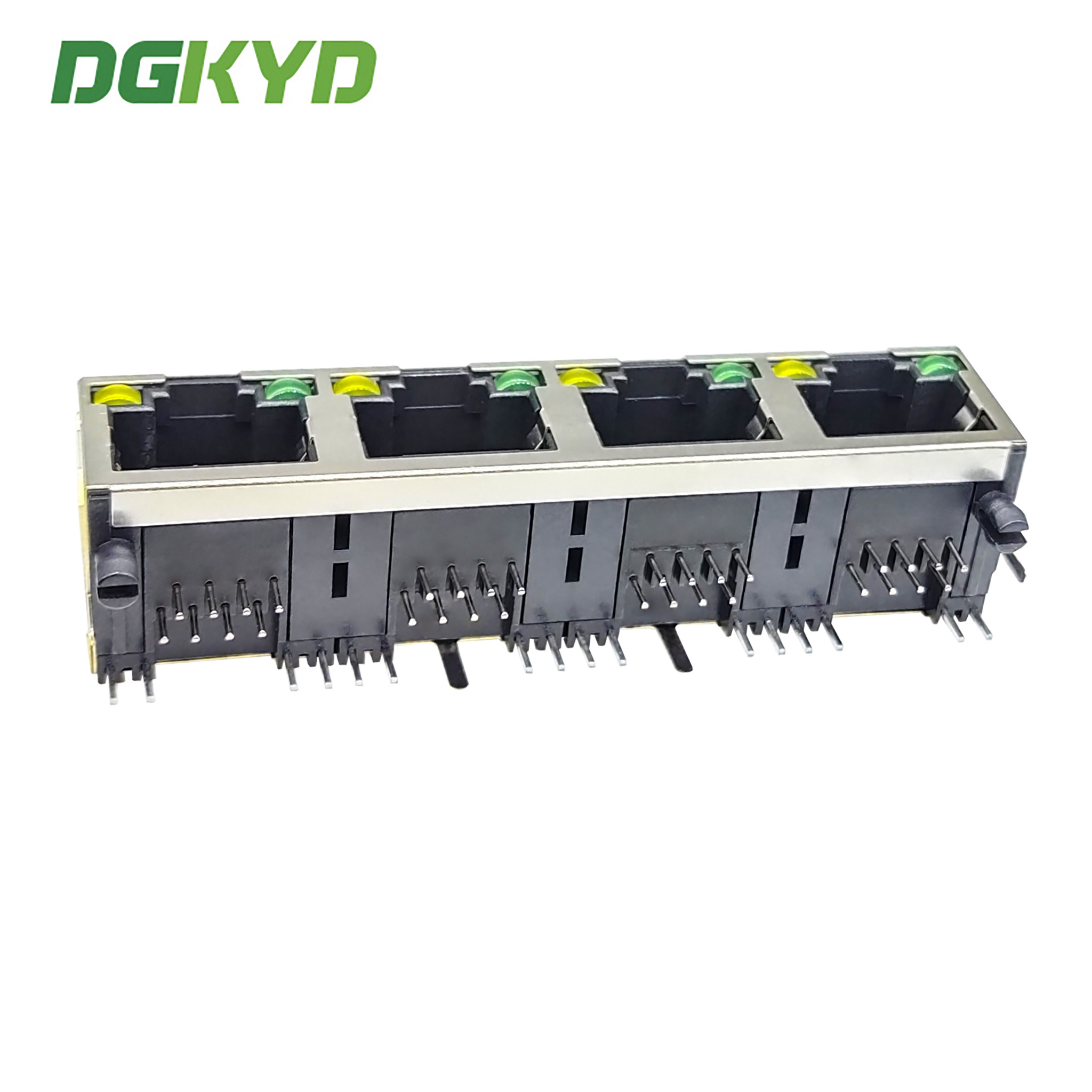

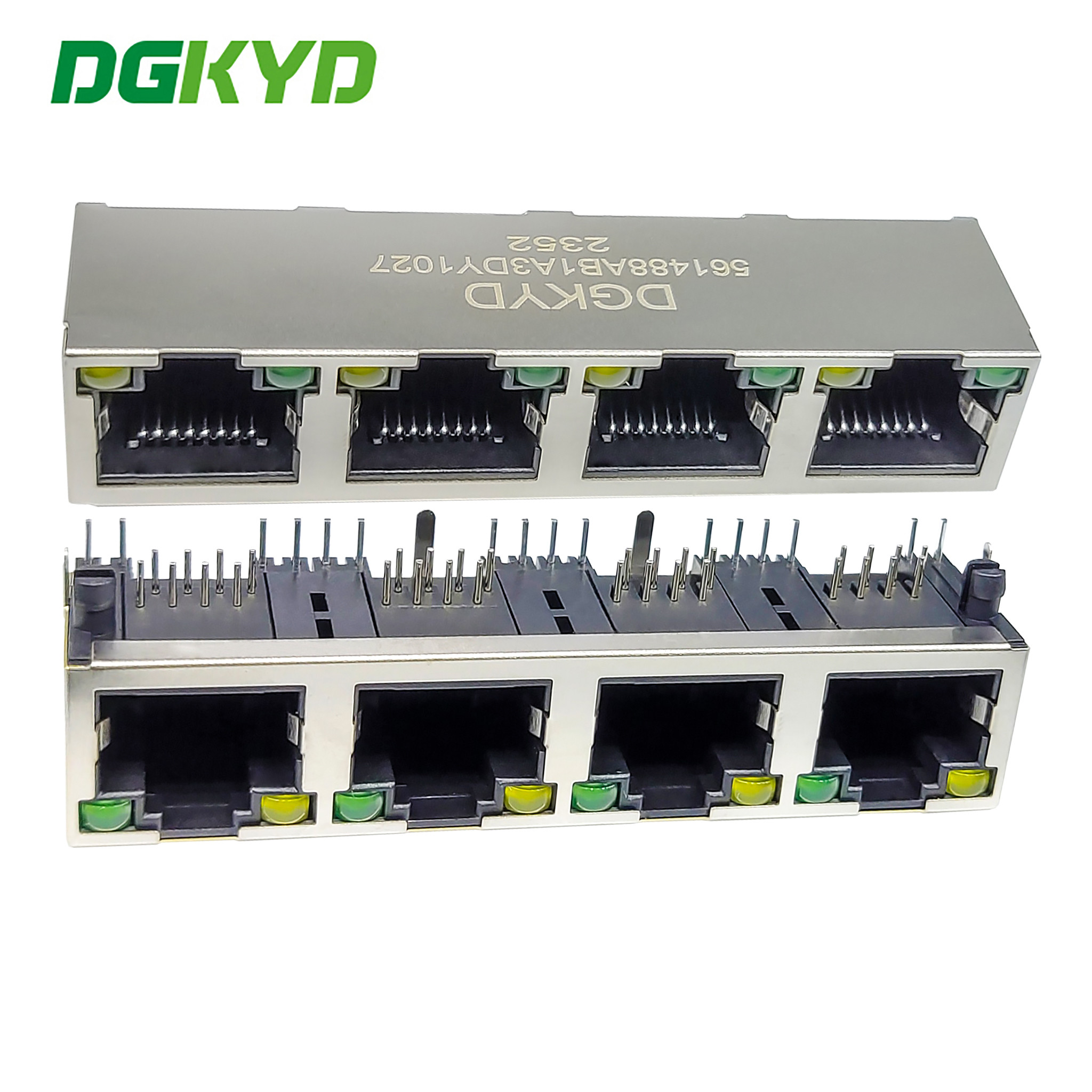

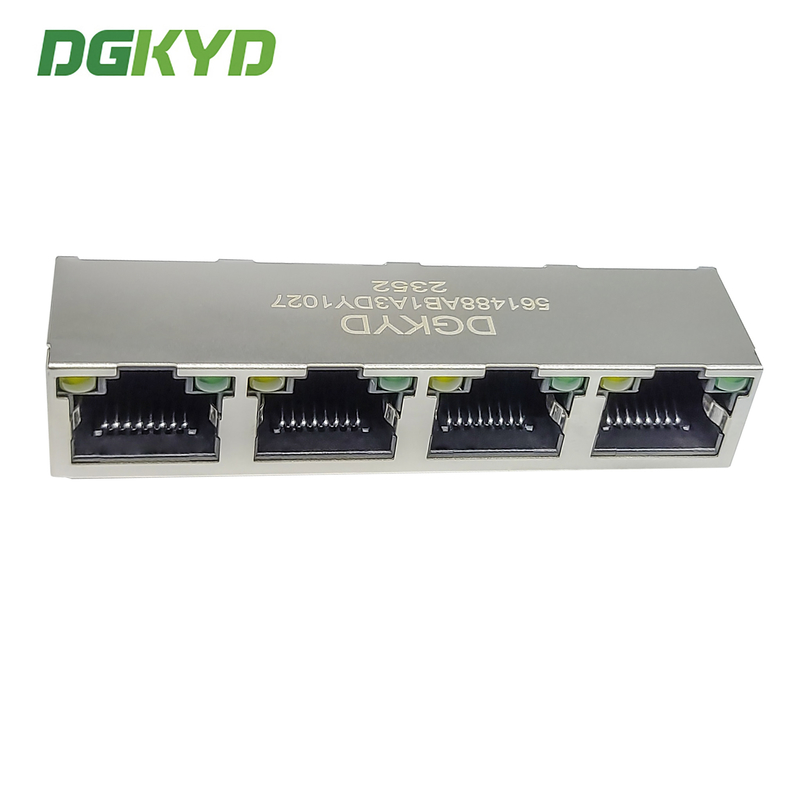

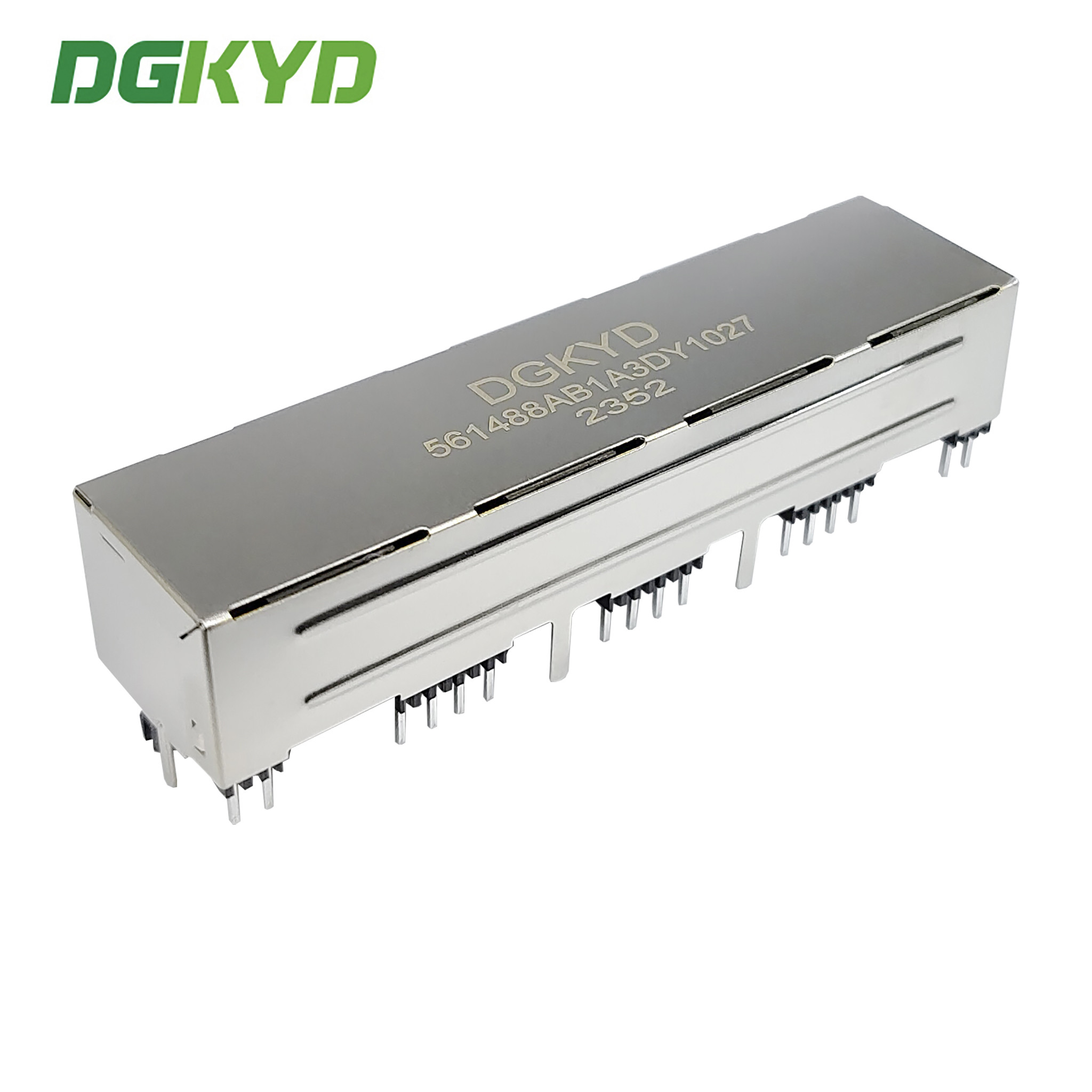

DGKYD561488AB1A3DY1027 RJ45 multi port socket 8p8 connector four port direct plug connector network port socket
Product Specification Document
DGKYD561488AB1A3DY1027.pdf
Parameters
| Part Number | DGKYD561488AB1A3DY1027 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | Without Filter | LED Option | With LED |
| LED Color | Yellow/Green | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | 4 Ports | Number of Positions | 8 |
| Jack Configuration | 1X4 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold G/Fu | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PA46 Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
