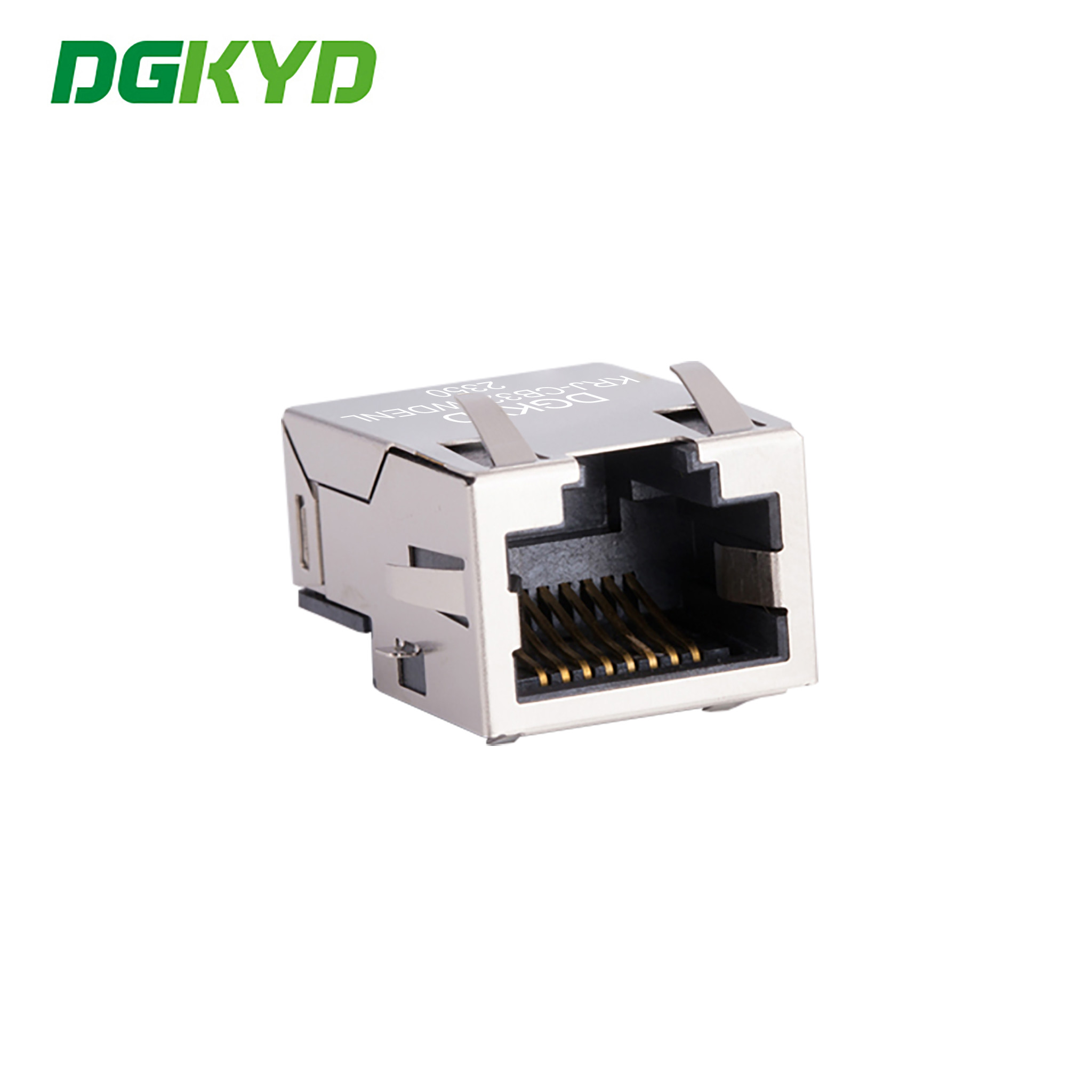

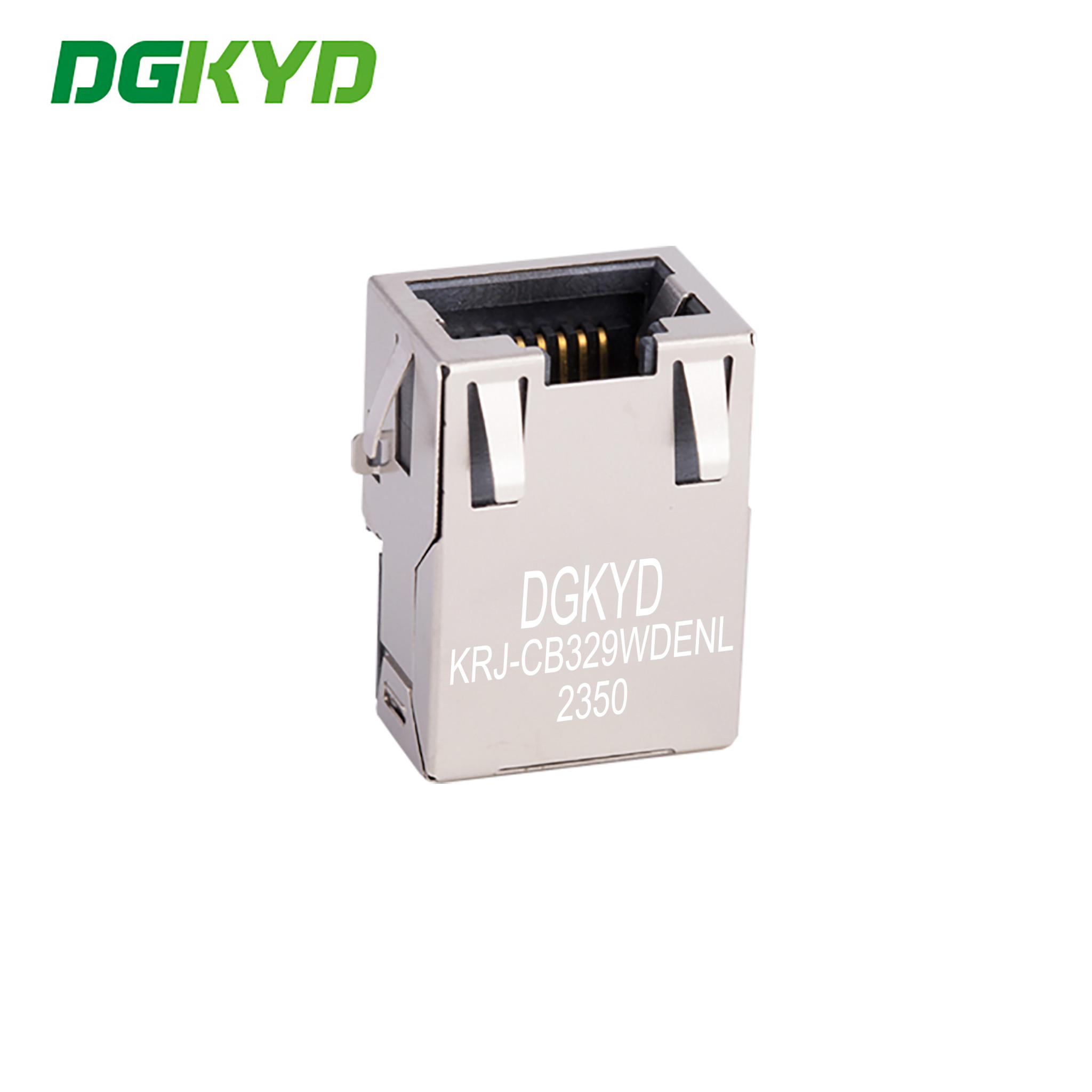

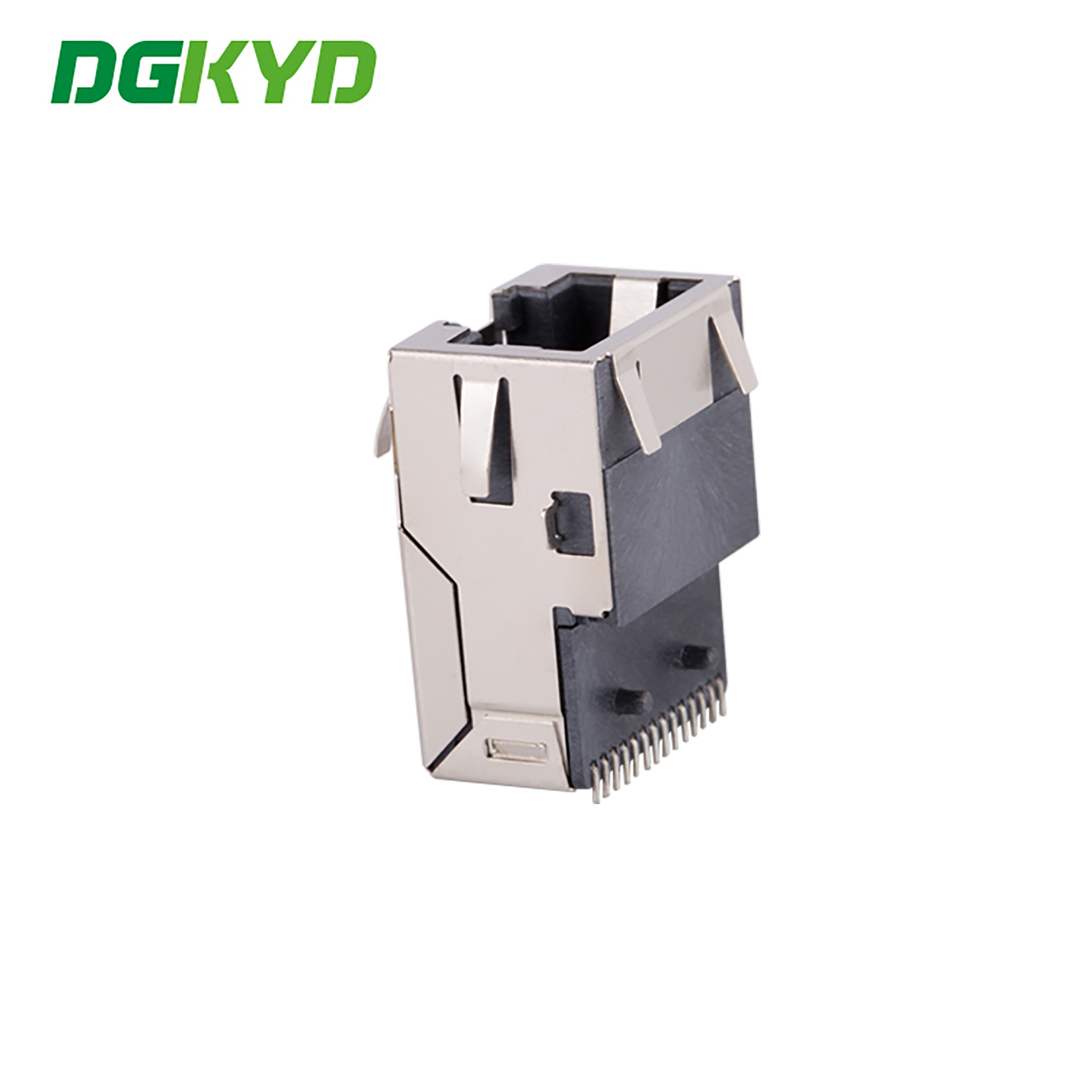

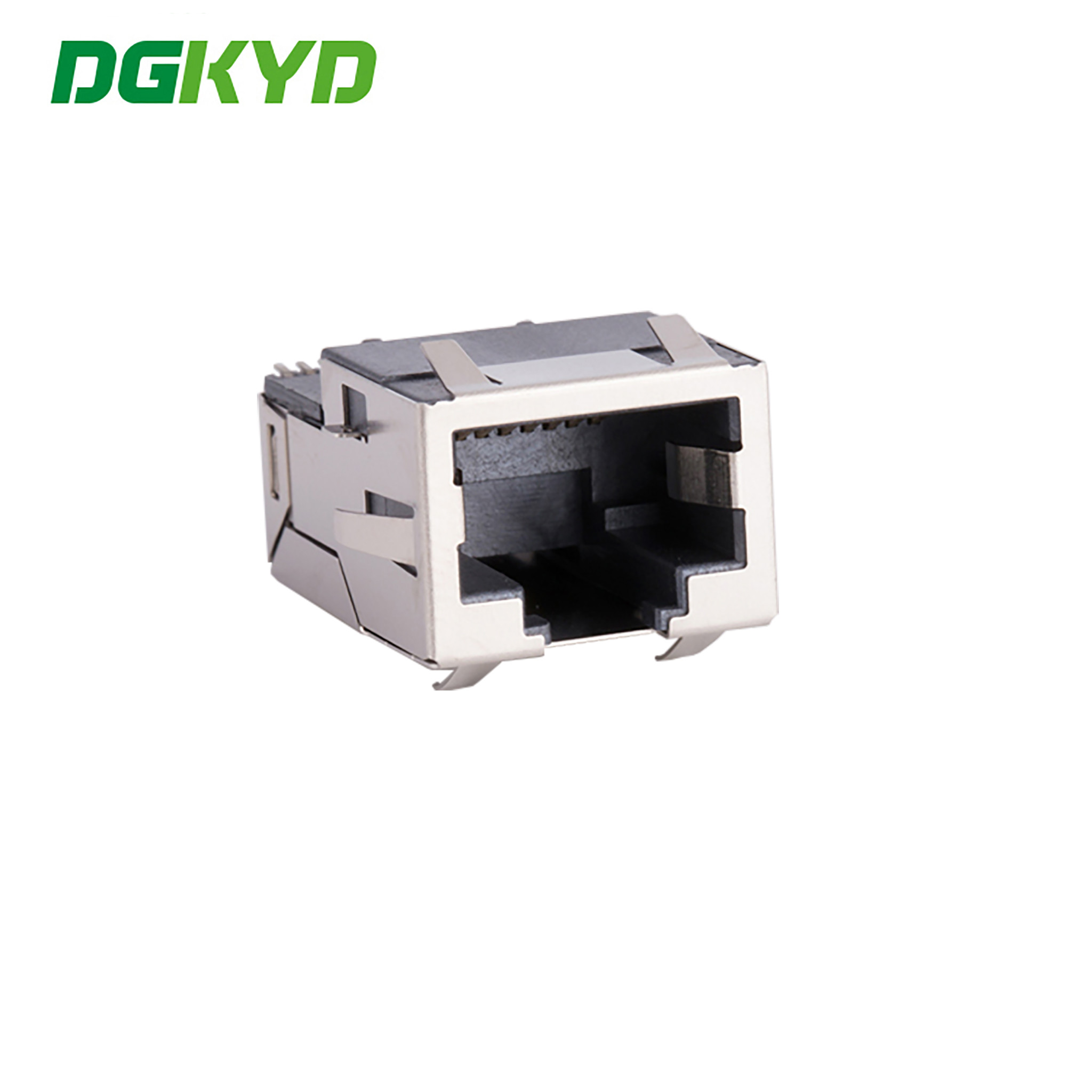

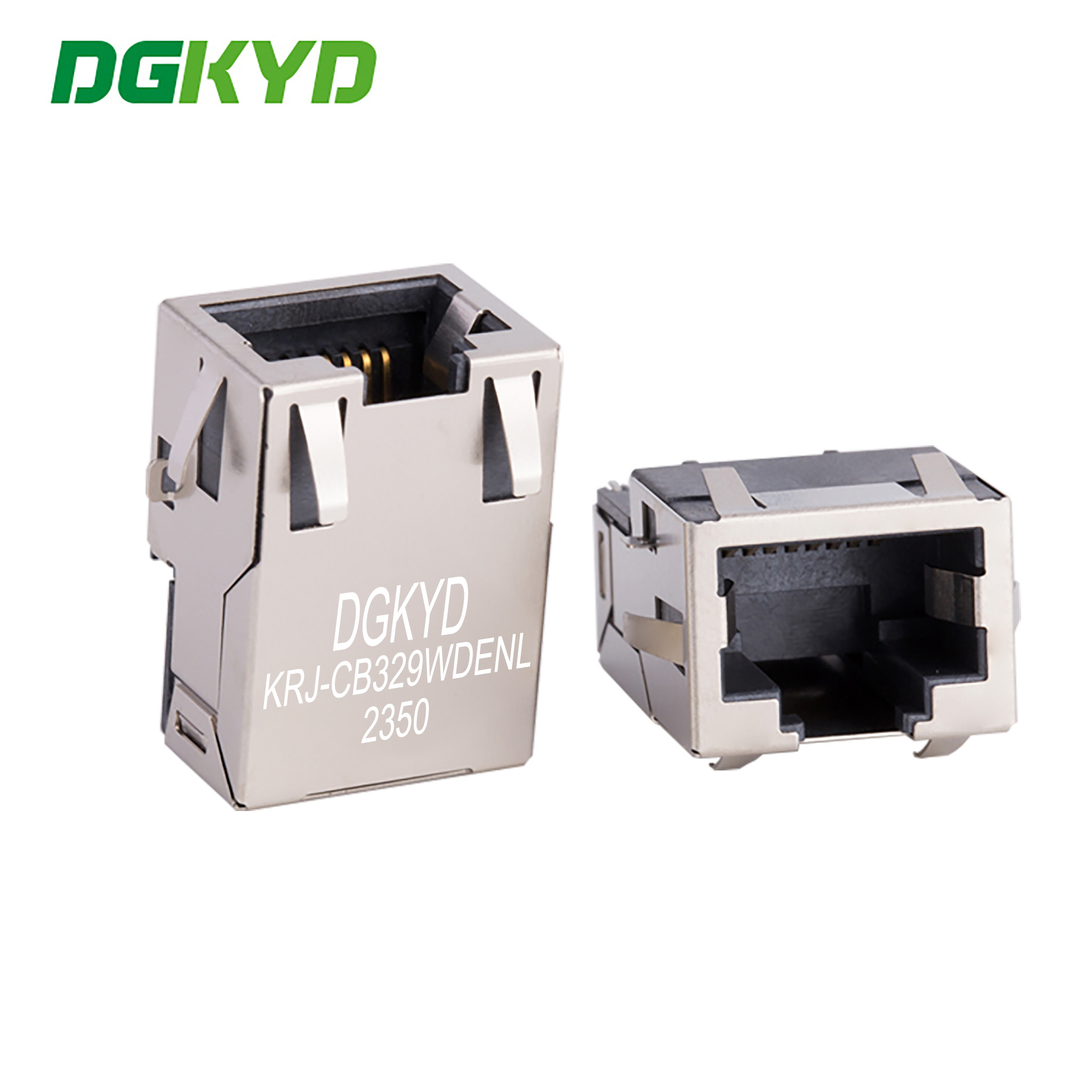

KRJ-SM015NL RJ45 Socket Patch Network Interface Integrated With 100M Network Transformer Communication Interface
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-CB329WDENL |
|
Detail Information |
|||
| Rroduct Height: | 11.35mm | Product Name: | Extra Low Profile RJ45 Connector |
|---|---|---|---|
| Application: | PCB | Gender: | Female |
| LED Color: | N/A | Contact Plating: | Glod Plating 6u/15u/30u/50u |
| Housing Material: | LCP Black | Filter: | With Filter |
| Latch: | TAB-UP | Shield: | Metal Shield |
| Pin: | 10pin | ||
| High Light: | Sink Plate Rj45 Pcb Connector,SMD Rj45 Pcb Connector,11.35mm Rj45 Female Connector Pcb Mount |
||
Product Description
Product Specification Document
Parameters
| Part Number | KRJ-CB329WDENL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | Without Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 10 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Descriptions:
Quick detail:
1X1 Heavy plate rj45 Tab-down
Rj45 with transformer and contact area with”6U”Gold
SMD RJ45 without led and connector board of high is 8.85mm
Length: 21.5mm
90degree
