RJ45 Connector 1X1 10P8C With Shielded Communication Interface DGKYD5621118GWA2D1Y3
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 |
|
Detail Information |
|||
| Model Number: | 5222 | Category: | Phone Jacks |
|---|---|---|---|
| Component Type: | PCB Jack | Type: | RJ45 |
| Magnetic: | NONE | Performance Category: | Cat 5 |
| Insetion Type: | Side Entry | Color: | Black |
| Current Rating (Amps): | 1.5A | Material: | PBT |
| Termination: | DIP | Operation Temperature: | -40°C~+85°C |
| High Light: | 1x1 Rj45 Network Connector,DIP Rj45 Network Connector |
||
Product Description

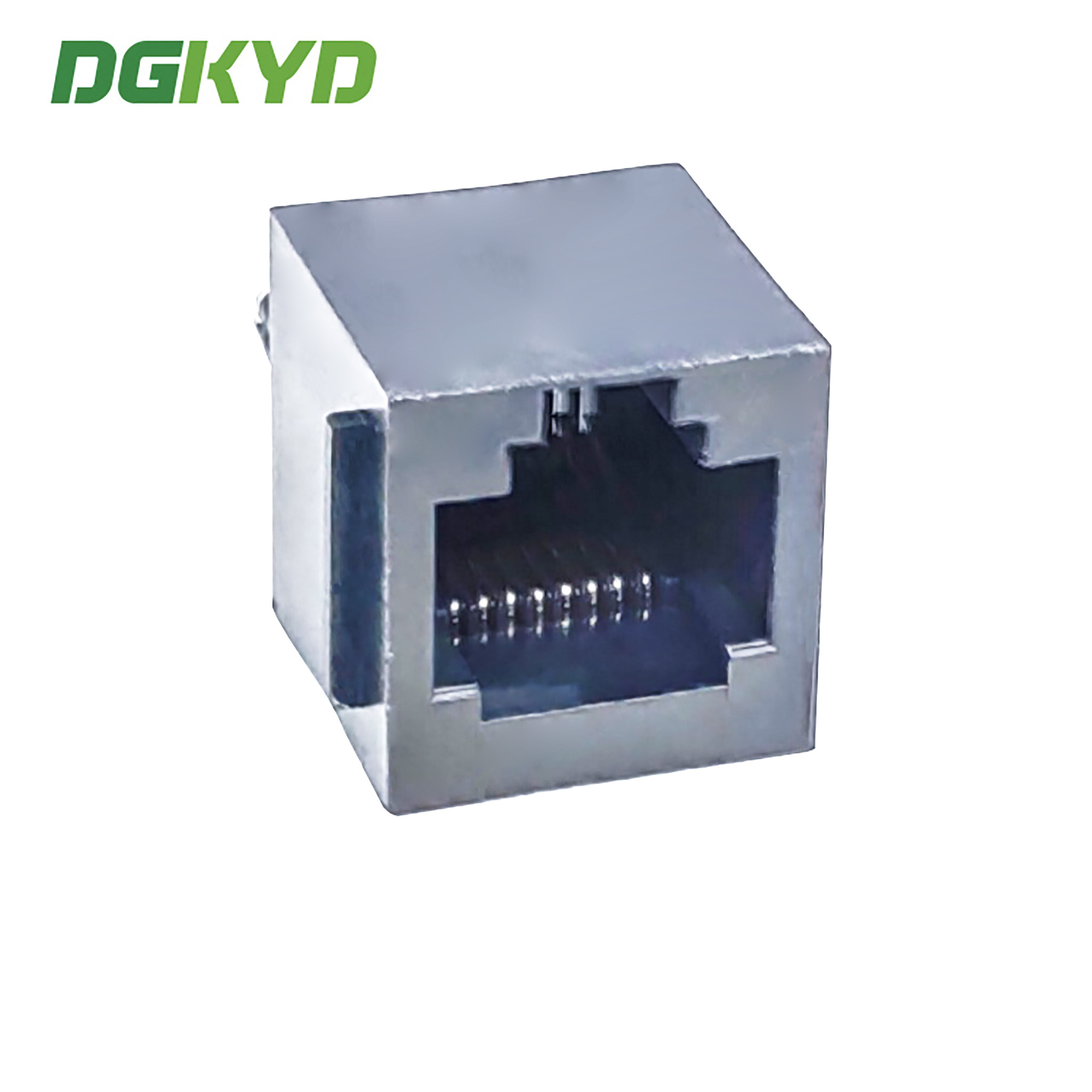

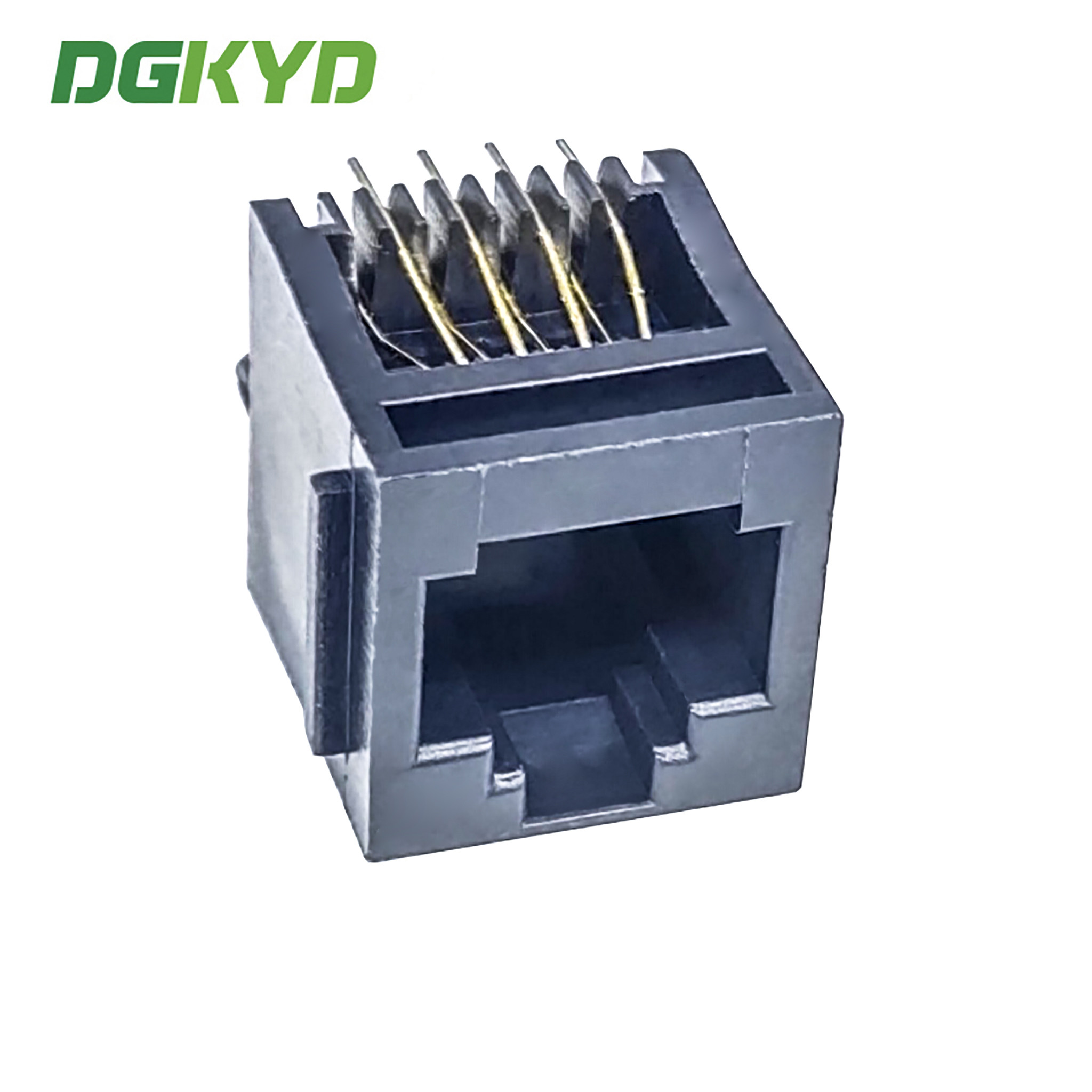

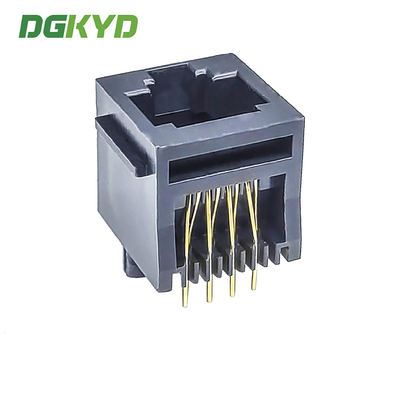

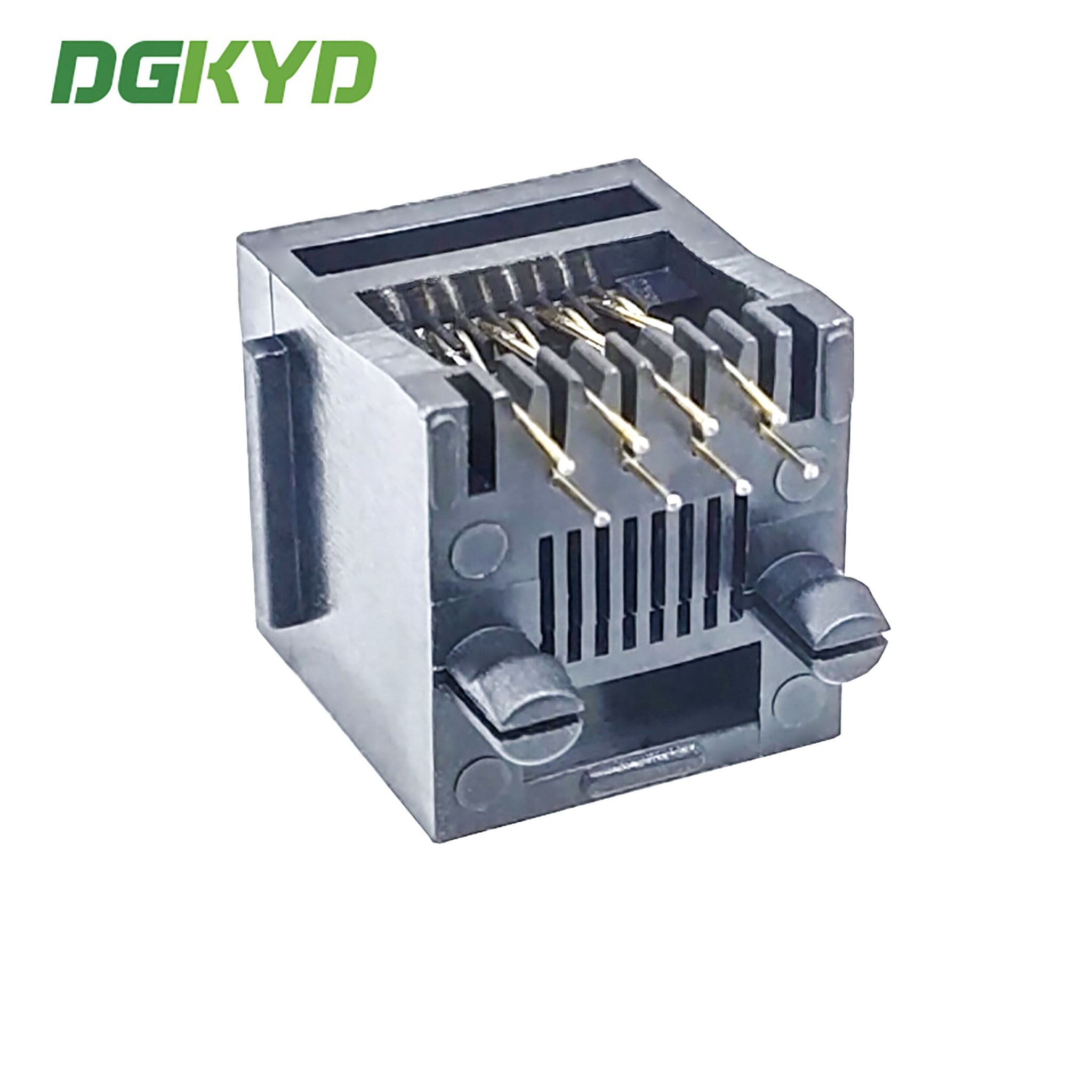

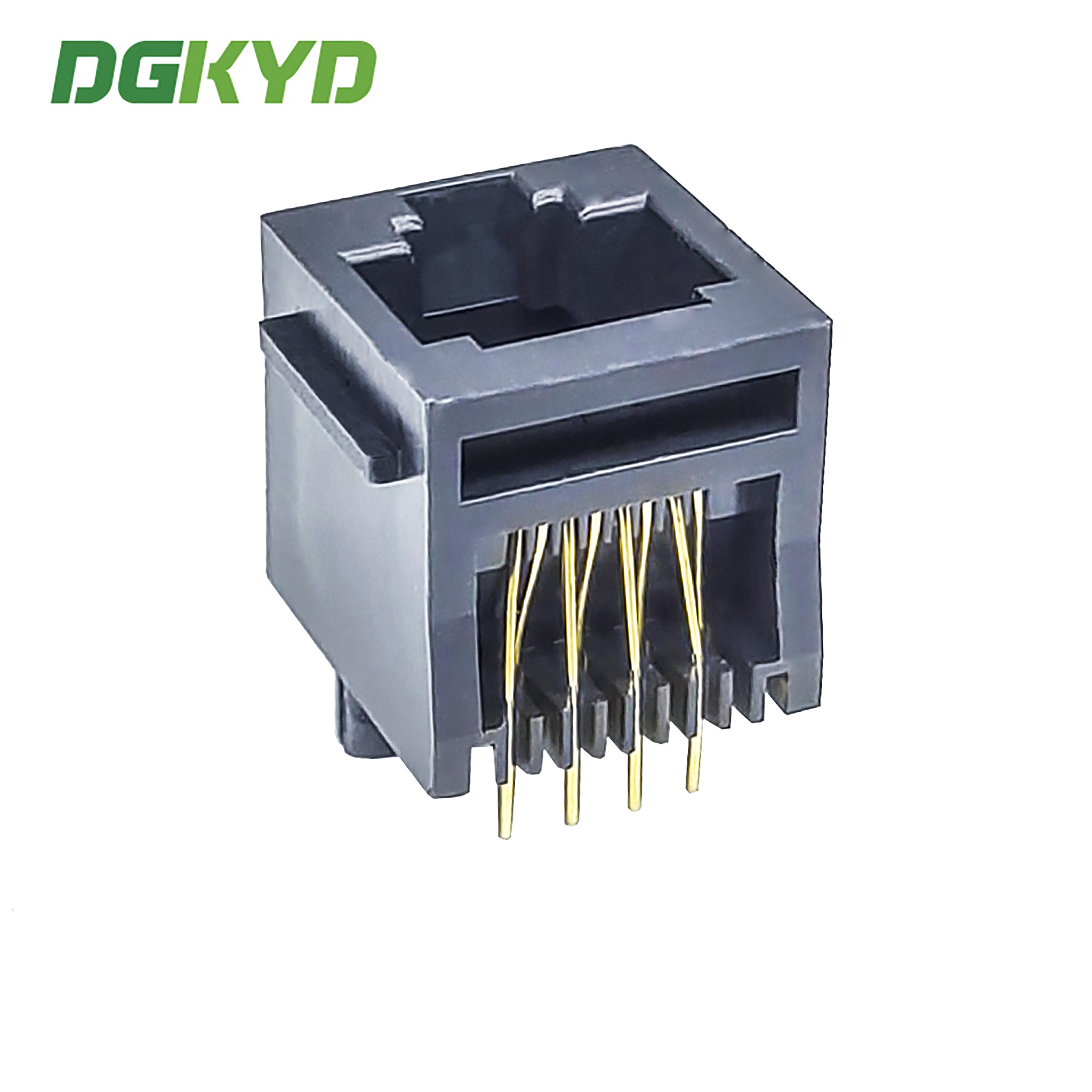

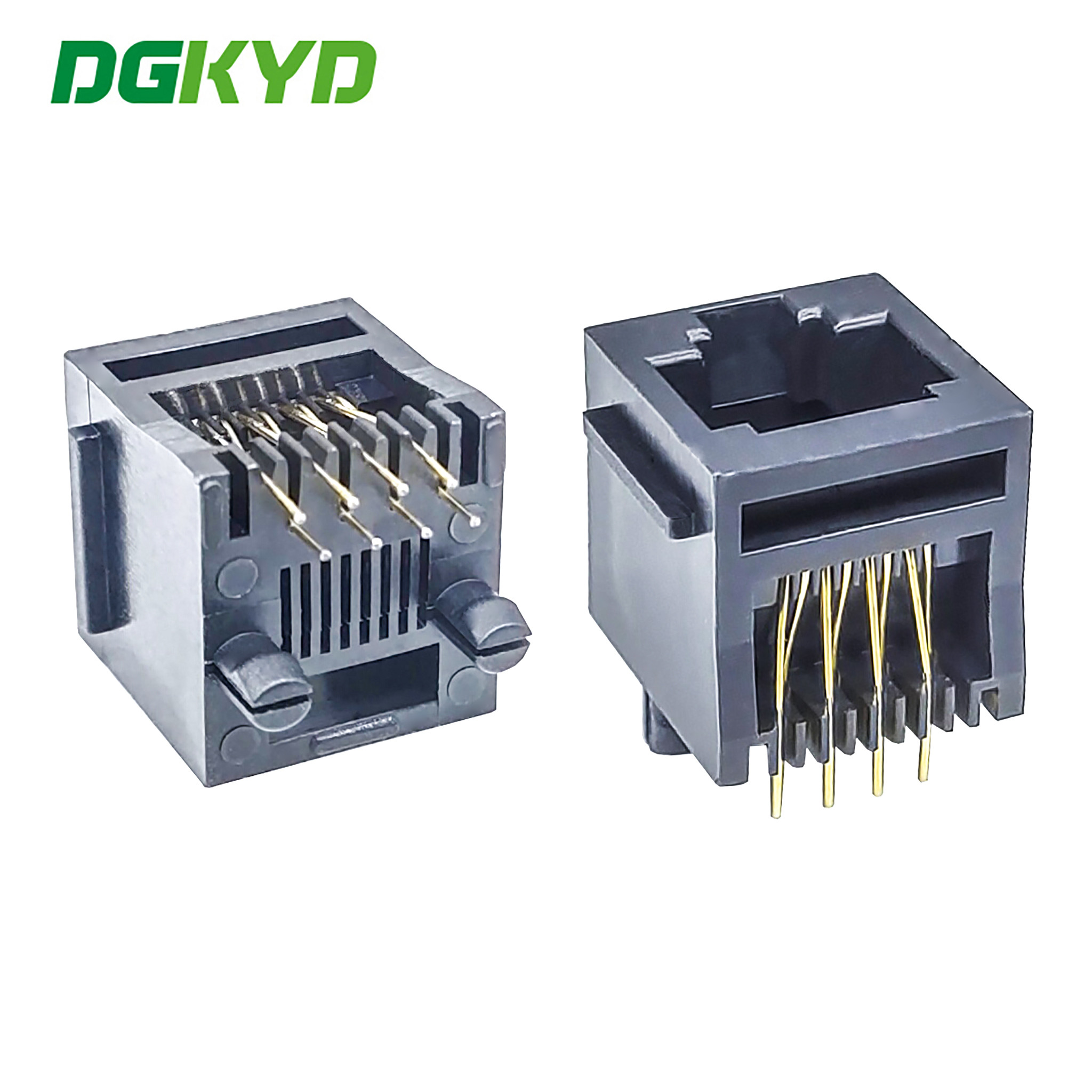

vertical RJ45 PCB socket female head 1x1 port 8Pin DIP Ethernet connector through hole solder DGKYD5222E1188IWA1DY1
Product Specification Document
Parameters
| Part Number | DGKYD5222E1188IWA1DY1 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | Without Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | No | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold G/Fu | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
