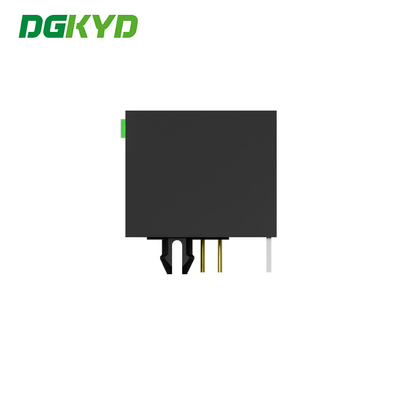

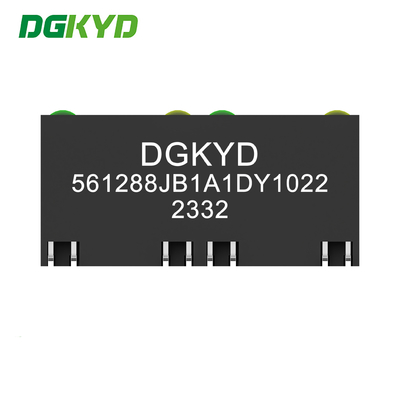

RJ45 Female Male PCB Connector Shield RJ-45 8p8c Plug Cat5e Cat6 Cat6a Cat8 Keystone Jack Ethernet RJ45 Socket Connector

Name: RJ45 Female Male PCB Connector Shield RJ-45 8p8c Plug Cat5e Cat6 Cat6a Cat8 Keystone Jack Ethernet RJ45 Socket Connector
Brand: DGKYD
SKU: DGKYD561288JB1A1DY1022
Rating: 4.9 (127 reviews)

Minimum Order Quantity :	Negotiation	Price :	Please contact us to get the latest price.
Packaging Details :	1560Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD561288JB1A1DY1022

Detail Information
Product Type:	RJ45	Encapsulation Method:	Double In-line Package
PCB Mount Style:	DIP	Shape:	Rectangle
Shield:	Brass	Plastic Housing Material:	Black PBT
Number Of Pins:	8	Number Of Cores:	8
Dimension (mm):	31.5* 15.1* 12.8	Gold Plating On Contact Pins:	G/FU
Operating Temperature:	- 40 ℃ ~ 85 ℃	Storage Temperature:	- 40 ℃ ~ 85 ℃
High Light:	female male cat 5e connectors , pcb rj45 connector cat6 , 8p8c cat 6a connector

Product Description

RJ45 Female Male PCB Connector Shield RJ-45 8p8c Plug Cat5e Cat6 Cat6a Cat8 Keystone Jack Ethernet RJ45 Socket Connector

Product Specification Document

DGKYD561288JB1A1DY1022.pdf

FAQ

1.Ask: What products and services our company mainly provide?Answer: Electronic Connector, Include Pin Header,Female Header,Box Header,Wafer Header,USB,RJ45,D-SUB,DC Jack,Terminal Blocks etc.
2.Ask: Are you trading company or manufacturer?
Answer: We are factory.
3.Ask: If I want to customize products, how will it work?
Answer : Please provide drawings or pictures, We will have professional engineers to connect with you. OEM service is welcome.
4.Ask: When we can get the sample? how about the cost?
Answer: Sample will be sent in 3-5 days for free if buyer agree to pay for shipping cost.
5.Ask: What's your delivery time?
Answer: Our normal delivery time is 5-15 days. If it is urgent, we will deal with it urgently.
6.Ask: How we can trust your quality?
Answer: We have 16 years of production experience,all material in RoHS,Reach standard,100% test before delivery.
7.Ask: What's your price?

Answer: Our price is factory direct selling price and can be negotiated
8.Ask: What's your after-sale service?
Answer: We can provide you with technical support. If you have any problems, we can solve them for you at the first time

Parameters

Part Number	DGKYD561288JB1A1DY1022	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	Withtout LED
LED Color	No	Panel Stops	Without Panel Stops
Shielded	No	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Double Ports	Number of Positions	8
Jack Configuration	1X2	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Tag:

RJ45 Female Male PCB Connector Shield RJ-45 8p8c Plug Cat5e Cat6 Cat6a Cat8 Keystone Jack Ethernet RJ45 Socket Connector

female male cat 5e connectors

pcb rj45 connector cat6

8p8c cat 6a connector
