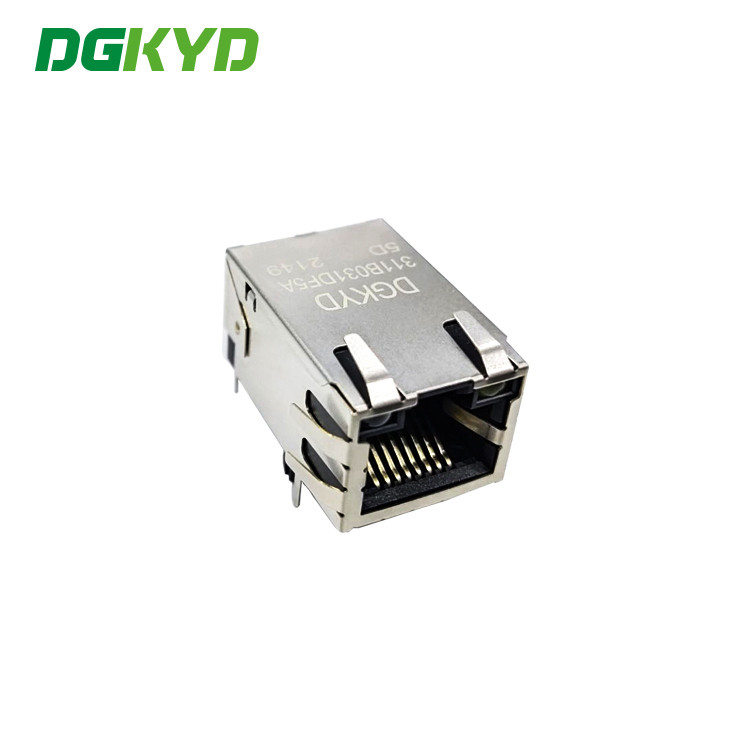

PA66 Shielded 6U ethernet rj45 connector 25.8mm Network Socket RJ45 With Transformer

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD311B031DF5A5D

Detail Information

Part Number: DIP Ethernet RJ45 Connector HOUSING: PA66
Type Of Installation: PCB Receptacles LED Color: Yes.L-Green/Orange/R-Yellow
Package: Carton Pallet Colour: Black
Contact Plating: 6u Glod Plating TERMINAL: PHOSPHOR BRONZE
Storage Temperature: - 40 ℃ ~ 85 ℃ Applications Speed: 10/100 Base-T, AutoMDIX
Latch: TAB-UP
High Light:

6U Ethernet Rj45 Connector

,

PA66 Shielded Ethernet Rj45 Connector

,

25.8mm Network Socket

Product Description

PA66 Shielded 6U Ethernet Rj45 Connector 25.8mm Network Socket



DGKYD311B031DF5A5D L-25.8mm network socket 6U PA66 shielded connector RJ45 port facing up with isolation shrapnel



 Parameters

Part Number

DGKYD311B031DF5A5D

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Up
Filter With Filter LED Option With LED
LED Color Yes.L-Green/Orange/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions 

6

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PA66 Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Why Choose Us

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.



Drawings

 PA66 Shielded 6U ethernet rj45 connector 25.8mm Network Socket RJ45 With Transformer 0PA66 Shielded 6U ethernet rj45 connector 25.8mm Network Socket RJ45 With Transformer 1PA66 Shielded 6U ethernet rj45 connector 25.8mm Network Socket RJ45 With Transformer 2
