12 Pin Gigabit Integrated Filtering 10Gbit/S RJ45 Angled Connector

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD411Q082AF5D1D

Detail Information

Modular Jack & Plug Interface Type: LAN Jack Connector Type : Modular Jack
Housing Material: PBT Black Shielded: Yes
Performance Category: 1000M BASE-TX Latch Orientation: STANDARD(BOTTOM)
Status Indicator: NONE Number Of Positions: 12
High Light:

12 Pin gigabit ethernet rj45

,

10Gbit/S network rj45 connectors

,

10Gbit/S RJ45 Angled Connector

Product Description

12 pin Single Port rj45 Connector Gigabit Integrated Filtering High Performance Computer Connectors



Applications

  • Ethernet speed up to 10 Gbit/s
  • Power over Ethernet PoE and PoE+
  • Compliant with most IC’s for Ethernet applications such as Intel, AMD, Microchip and Realtek

 Parameters



Part Number DGKYD411Q082AF5D1D Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter With internal Filter LED Option With LED
LED Color L-Green/Orange / R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 1000M BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Singer port Number of Positions  12
Jack Configuration 1X 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6/15/30/50 Microinch Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Drawings

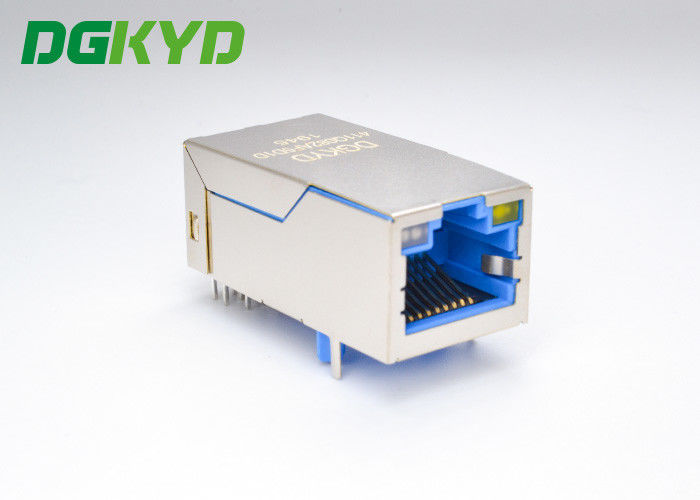

12 Pin Gigabit Integrated Filtering 10Gbit/S RJ45 Angled Connector 0

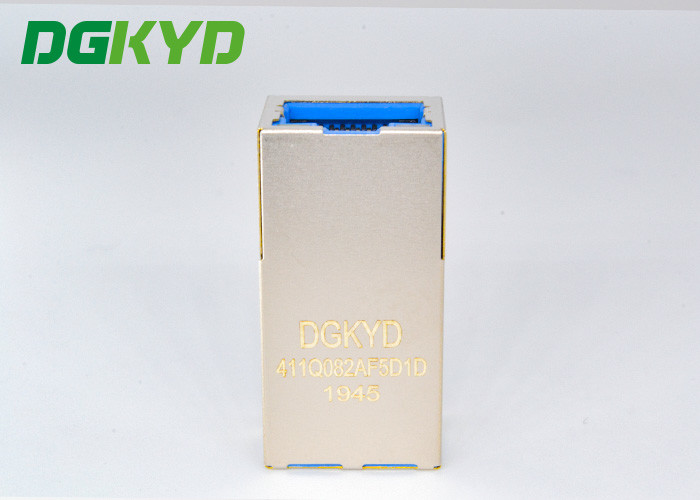

12 Pin Gigabit Integrated Filtering 10Gbit/S RJ45 Angled Connector 1

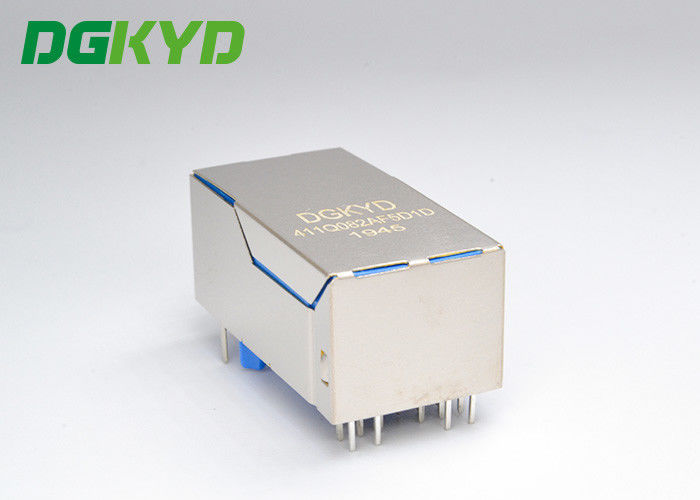

12 Pin Gigabit Integrated Filtering 10Gbit/S RJ45 Angled Connector 2



Pictures

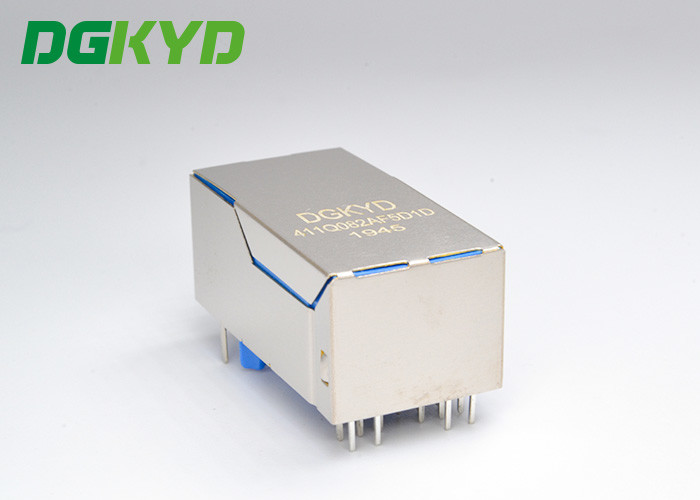

12 Pin Gigabit Integrated Filtering 10Gbit/S RJ45 Angled Connector 3
