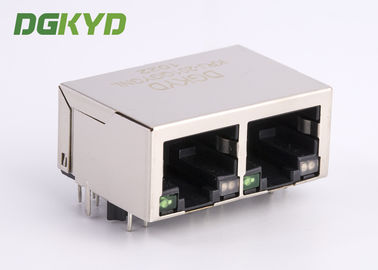

1000 BASE ganged 2 Port cat6 RJ45 Modular Jack with internal transformer RoHS compliance

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-201QGYGNL

Detail Information

Performance Category: 1000 BASE-TX Port Configuration: Ganged Two Port
Product Name: Cat RJ45 Connector Port Orientation: Side Entry

Product Description

1000BASE 2Port Tab Down Transformer RJ45 Modular Jack  for CAT6

P/N:KRJ-201QGYWEL



Descriptions:

  • 10/100/1000Base-Tx RJ45 2 port 1X2 Vertical with LEDS with side entry
  • Double port 1X2 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:YES
  • EMI finger:NO
  • LEFT LED:Green,RIGHT LED:Yellow
  • Usage:KRJ-201QGYWENL

1000 BASE ganged 2 Port cat6 RJ45 Modular Jack with internal transformer RoHS compliance
