33mm Metal shielded 1000 BASE Cat6 PoE RJ45 connector with EMI fingers , LED's

China 33mm Metal shielded 1000 BASE Cat6 PoE RJ45 connector with EMI fingers , LED's supplier
33mm Metal shielded 1000 BASE Cat6 PoE RJ45 connector with EMI fingers , LED's supplier 33mm Metal shielded 1000 BASE Cat6 PoE RJ45 connector with EMI fingers , LED's supplier 33mm Metal shielded 1000 BASE Cat6 PoE RJ45 connector with EMI fingers , LED's supplier 33mm Metal shielded 1000 BASE Cat6 PoE RJ45 connector with EMI fingers , LED's supplier 33mm Metal shielded 1000 BASE Cat6 PoE RJ45 connector with EMI fingers , LED's supplier 33mm Metal shielded 1000 BASE Cat6 PoE RJ45 connector with EMI fingers , LED's supplier

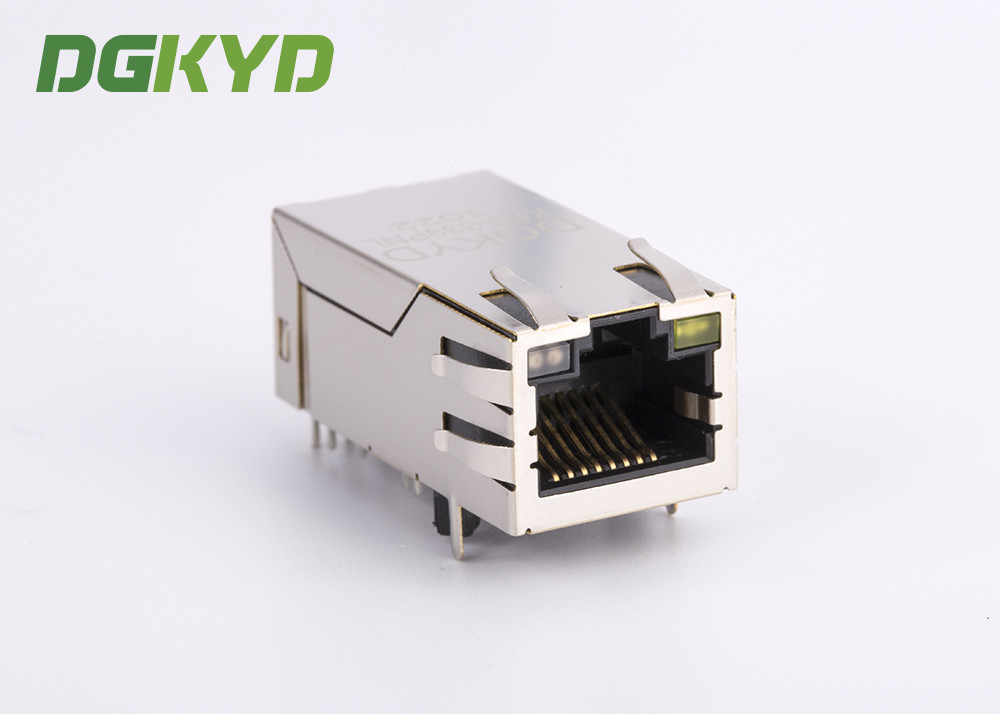

Large Image :  33mm Metal shielded 1000 BASE Cat6 PoE RJ45 connector with EMI fingers , LED's

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-339PNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Housing Material: UL 94V-0 Rated Glass -filled Thermoplastic Contact Material: Copper Alloy
Contact Plating: Selective Gold Plating In The Contact Interface Voltage Rating: 150 VAC (maximum)

Cat6 PoE RJ45 Modular Plug with EMI fingers , Cat 6 Shielded Ethernet Connectors

33mm Metal shielded 1000 BASE Cat6 PoE RJ45 connector with EMI fingers , LED's

Descriptions:

  • 10/100/1000Base-Tx RJ45 single port 1X1
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range : -40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:16
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:33.0mm
  • LEDS:YES
  • EMI fingers:YES
  • LEFT:Green/Orange,RIGHT:Yellow
  • Usage:KRJ-339PNL
  • Provides 100 grams (minimum) of Contact Normal Force
  • Performance levels from CAT3 thru CAT6a
  • A variety of shielding options to provide EMI/RFI protection
  • contacts for all configurations of RJ-11 and RJ-45
  • Numerous keying options available on select models to match keyed plugs Available with customer specified single or bi-color LED’s
