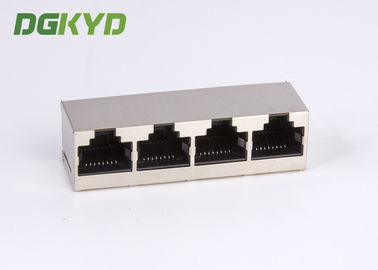

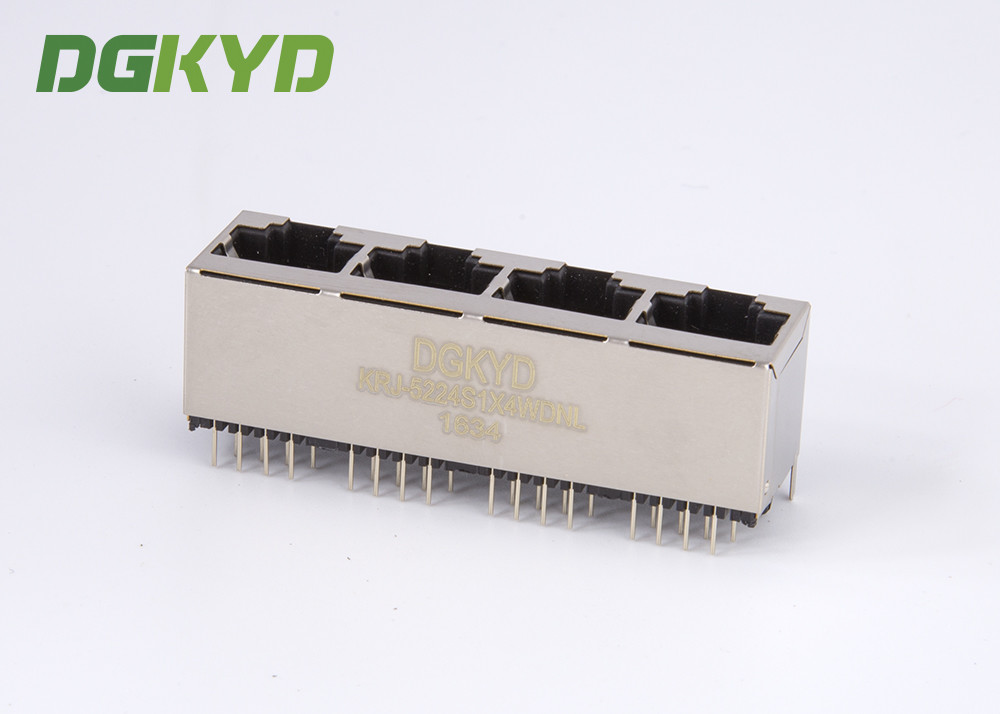

Top entry 180 degree 1x4 multiple port rj45 Connector without internal magnetics

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-5224S1X4WDNL

Detail Information
Port Orientation: Top Entry Port Configuration: Ganged Four Port
Jack Type: RJ45 Modular Jack Performance: 10/100/1000Mb

Product Description

1x4 Tab Up RJ45 Network Connector /180degree rj45 Modular Jack without internal magnetics

Top entry 180 degree 1x4 multiple port rj45 Connector without internal magnetics

Descriptions:

  • 180degree RJ45 4 port 1X4 Vertical without LED with top entry
  • 4 port 1X4 Tab-up RJ45 with internal magnetics
  • Number of positions:8pieces round needle
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:15.6mm
  • LEDS:NO
  • Usage:KRJ-5224S14NL

Applications:



RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.





Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with "FU"gold
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated
