10/100Base Tab Down rj45 lan Jack Network Connector with lan transfomer

China 10/100Base Tab Down rj45 lan Jack Network Connector with lan transfomer supplier
10/100Base Tab Down rj45 lan Jack Network Connector with lan transfomer supplier 10/100Base Tab Down rj45 lan Jack Network Connector with lan transfomer supplier 10/100Base Tab Down rj45 lan Jack Network Connector with lan transfomer supplier 10/100Base Tab Down rj45 lan Jack Network Connector with lan transfomer supplier 10/100Base Tab Down rj45 lan Jack Network Connector with lan transfomer supplier 10/100Base Tab Down rj45 lan Jack Network Connector with lan transfomer supplier

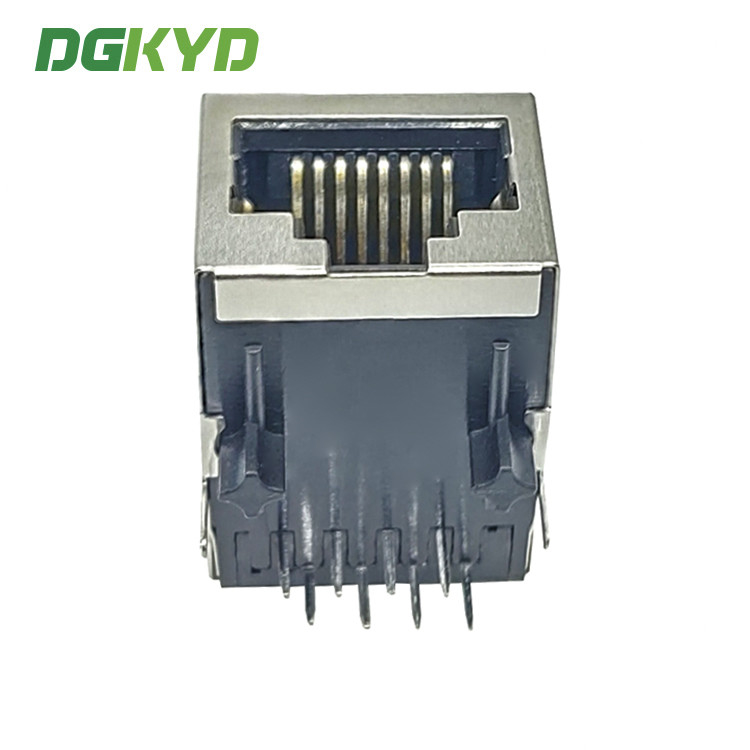

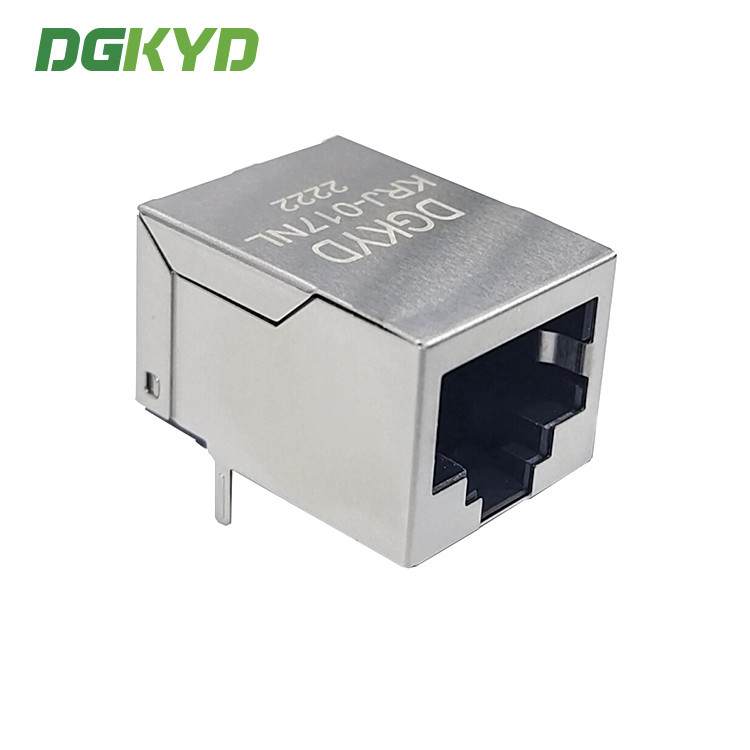

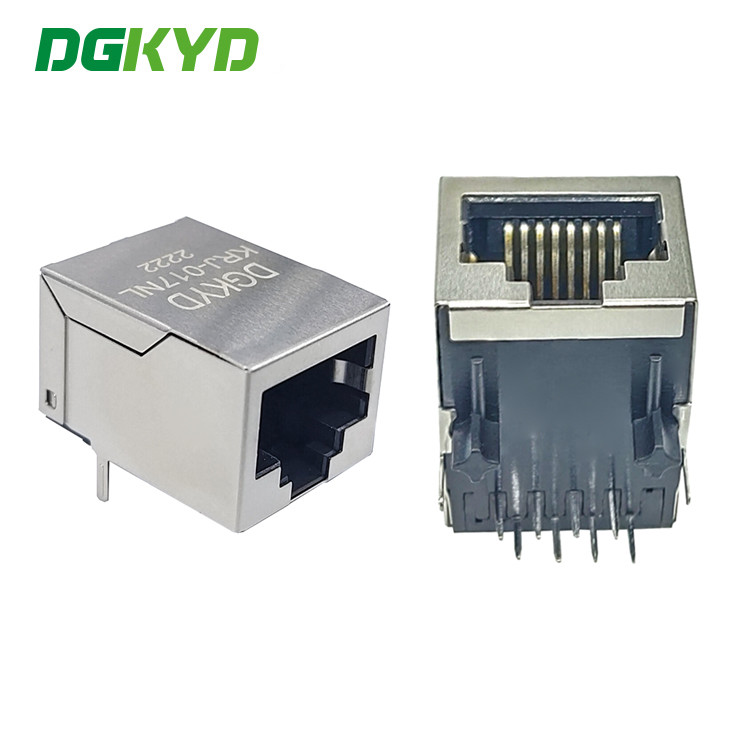

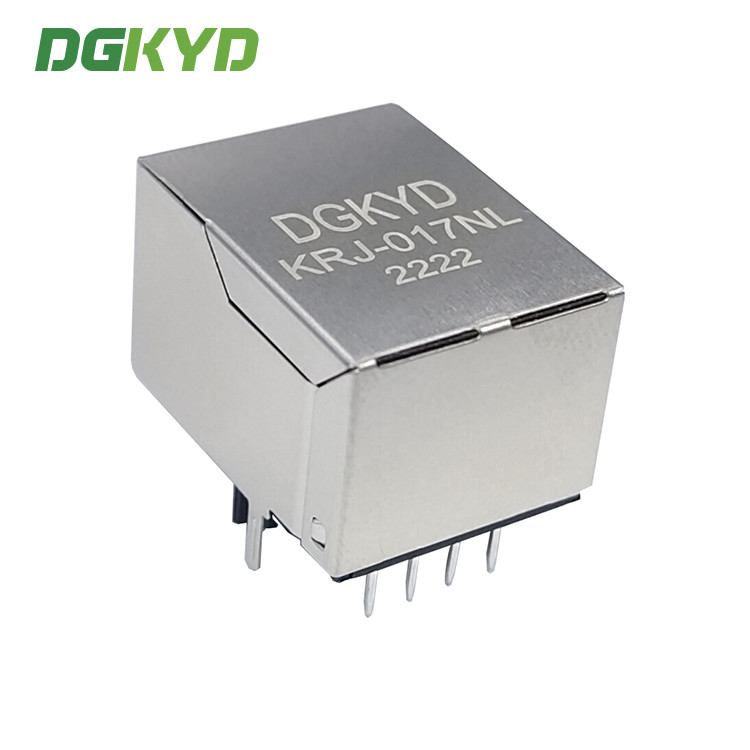

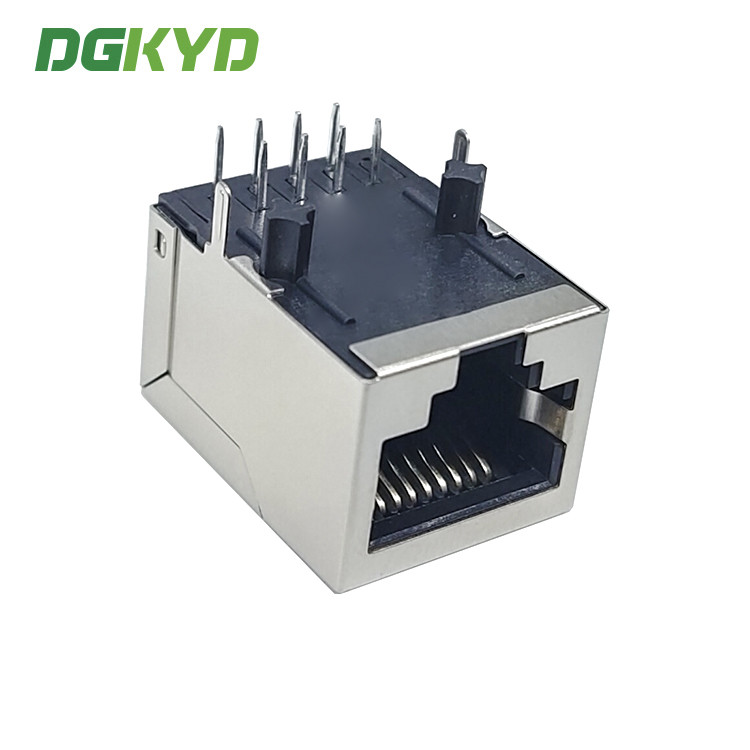

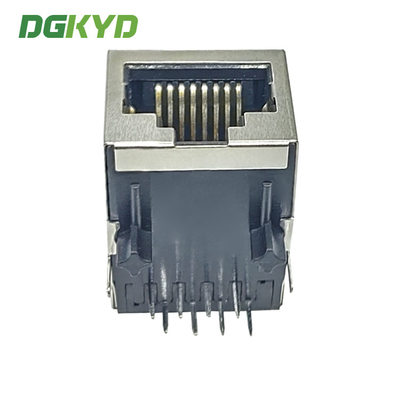

Large Image :  10/100Base Tab Down rj45 lan Jack Network Connector with lan transfomer

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-017NL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Category: Modular Jacks/Plugs Component Type: PCB Jack
Magnetic: Yes Performance Category: 5, 5e
Product Name: Magnetic Jack, Modular Jack 8/8 Material - Plating Mating: Gold

10/100Base 1x1 Tab Down rj45 Modular Jack, Network Connector, RJ45 Combo with lan transfomer Useage J0011D01NL



Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1 Vertical without LED with side entry
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:NO
  • EMI fingers:NO
  • Usage:J0011D01NL/HR901105A/KRJ-017NL



10/100Base Tab Down rj45 lan Jack Network Connector with lan transfomer



Application:



Telecommunications / Networking / Industrial Wi-Fi Access Points (or ‘Hotspots’) Surveillance / Security Cameras Point-of-Sale (POS) Systems Small Office/Home Office (SOHO) Switches and Routers Set Top Boxes Existing 1 Gigabit Ethernet Applications
