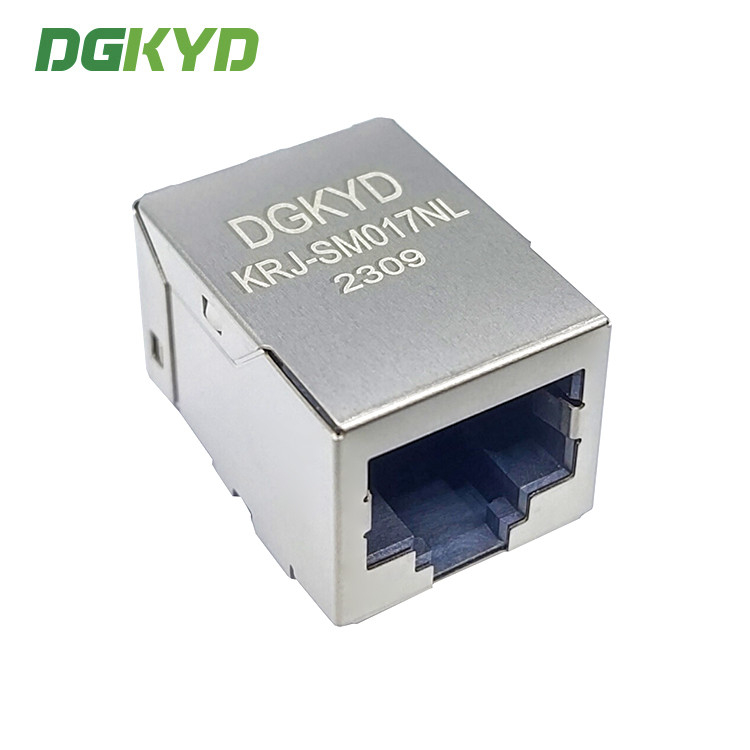

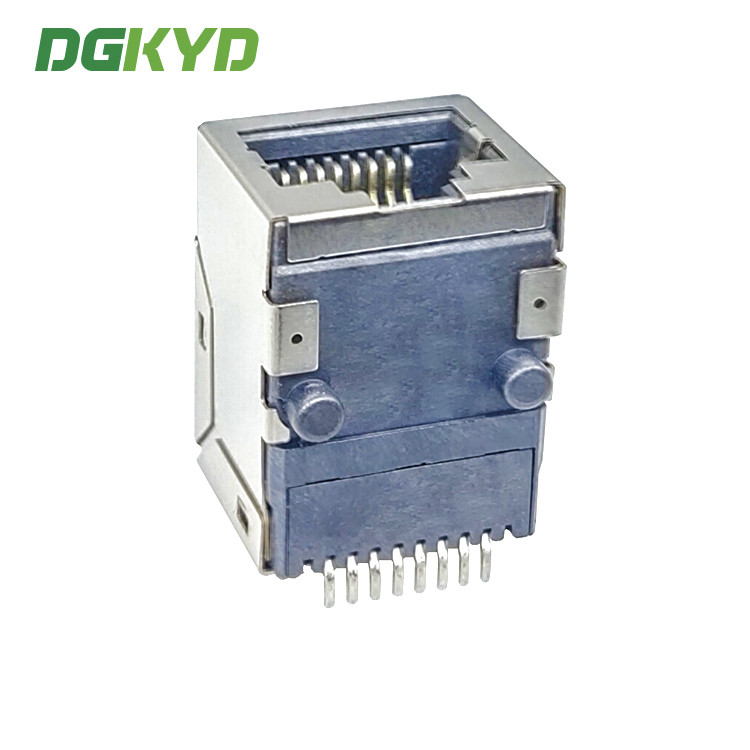

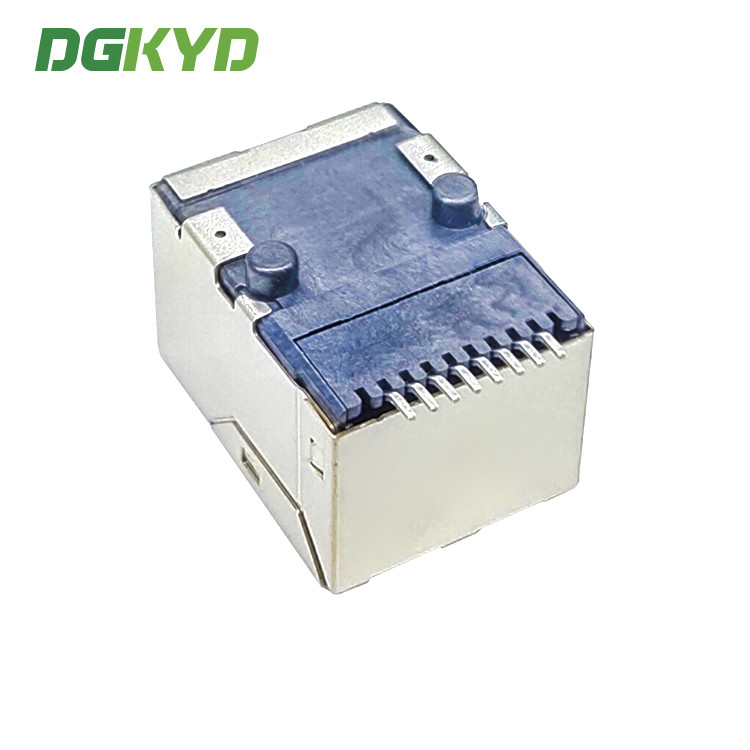

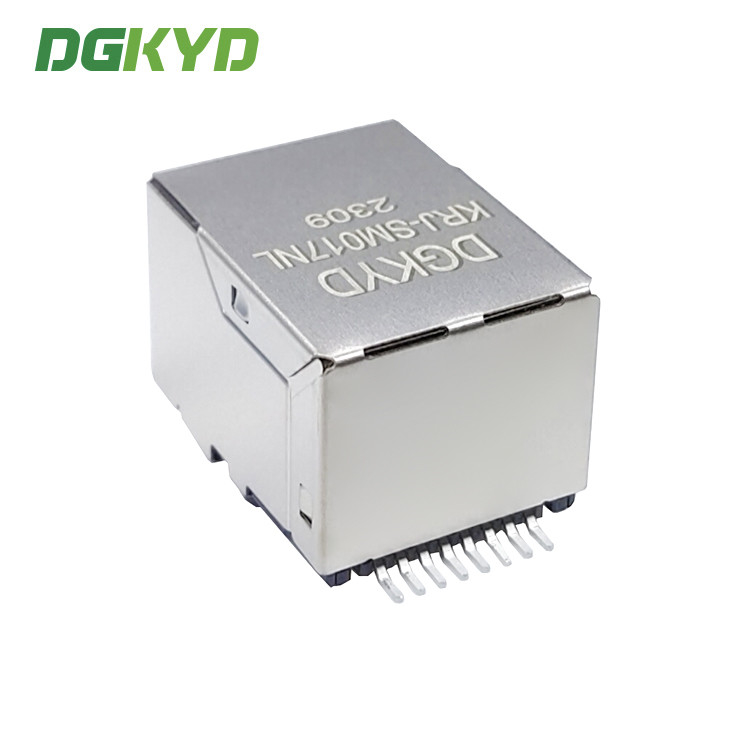

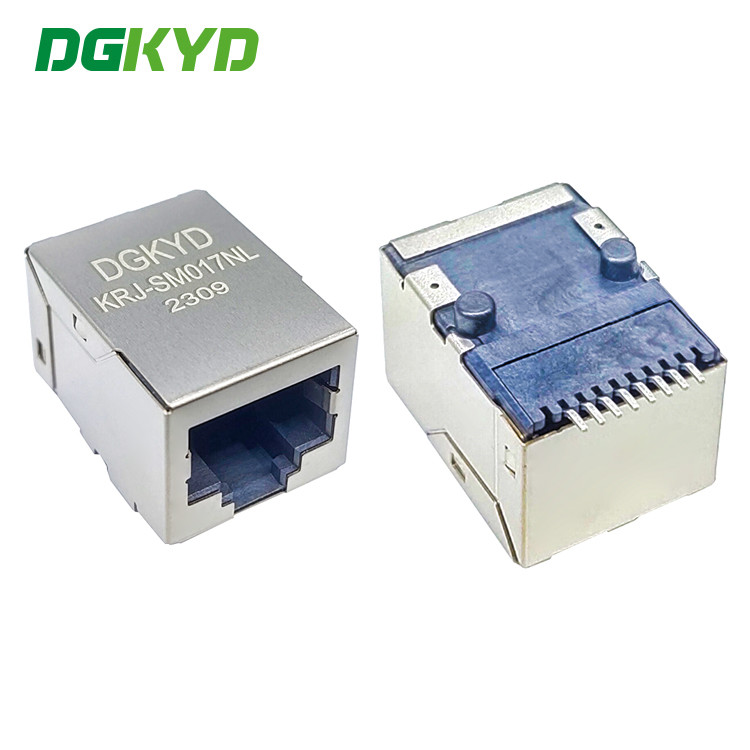

KRJ-SM017NL Shielded cat5 network jack, Low profile SMT rj45 connector with internal transformer

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-SM017NL

Detail Information

Performance: Cat5/5e PCB Mount Style: SMD
Port Orientation: Side Entry Connector Type: Low Profile RJ45 Jack
High Light:

poe rj45 jack

,

network jack rj45

,

rj45 connector with internal transformer

Product Description

Shield network SMT filter replace rj45 connector jack With Transformer

  • 10/100Base-Tx RJ45 single port 1X1 with SMT
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:NO
  • EMI fingers:NO
  • Usage:KRJ-SM017NL

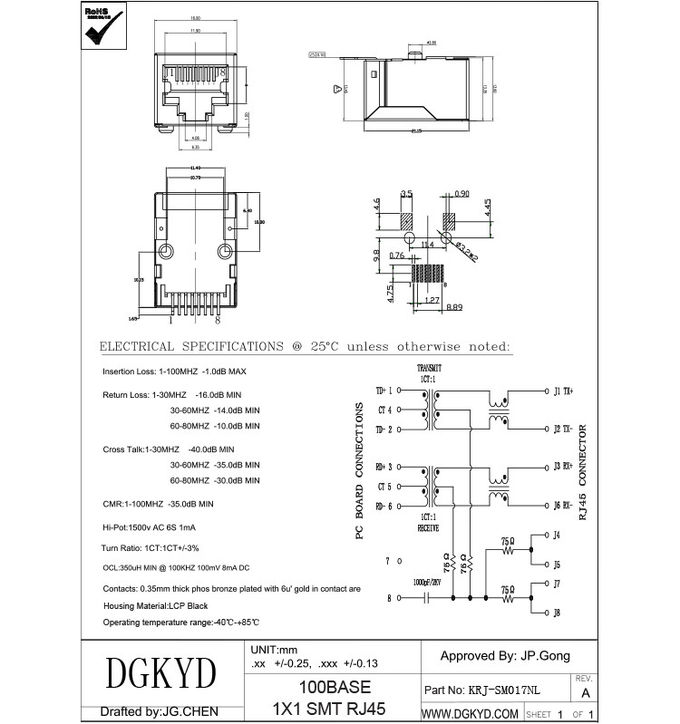

KRJ-SM017NL Shielded cat5 network jack, Low profile SMT rj45 connector with internal transformer 0KRJ-SM017NL Shielded cat5 network jack, Low profile SMT rj45 connector with internal transformer 1KRJ-SM017NL Shielded cat5 network jack, Low profile SMT rj45 connector with internal transformer 2



Integrates the high performance of dgkyd magnetics into industry standard connector designs. A complete line of Integrated RJ-45 connectors for 10BASE-T, 10/100BASE-TX, and Gigabit Ethernet. The result is an extremely robust, IEEE802.3 compliant solution. The complete FastJack series is UL60950 and EN60950 compliant.
