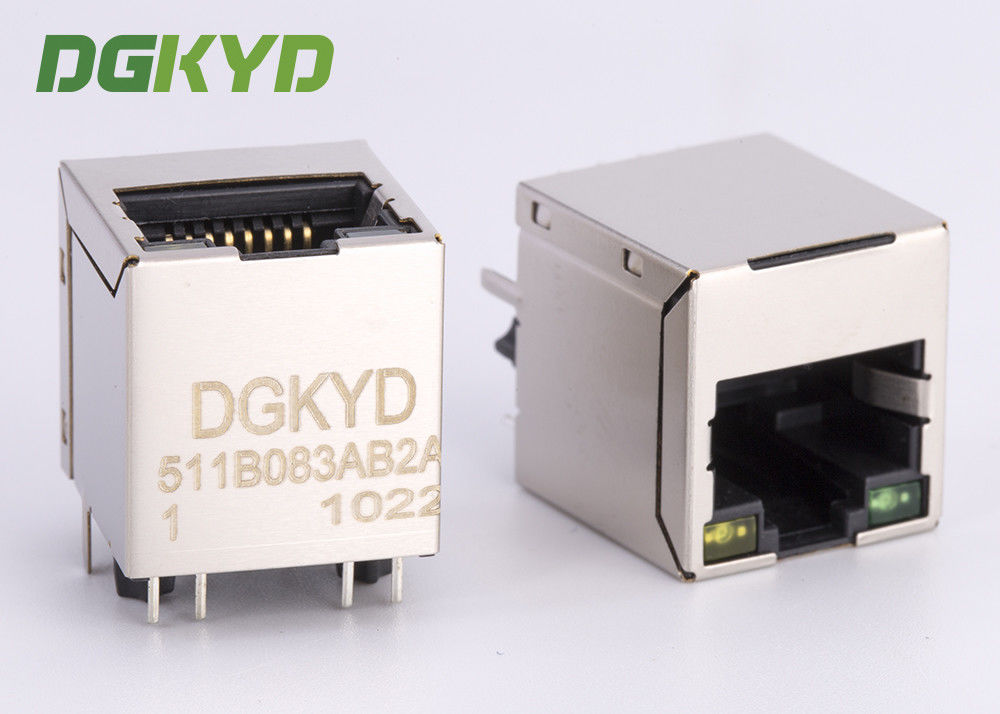

10/100 BASE 180 degree Rj45 Lan Jack vetical insertion ethernet connector factory

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD511B083AB2A1D

Detail Information
Speed:	Cat 5 5e	Port Configuration:	Top Insertion
Mount Style:	PCB Mount	Shield:	Yes
LED:	G/Y Led	Height:	16.9mm
High Light:	rj45 8p8c connectors , rj45 lan port , Top insertion Rj45 Lan Jack

Product Description

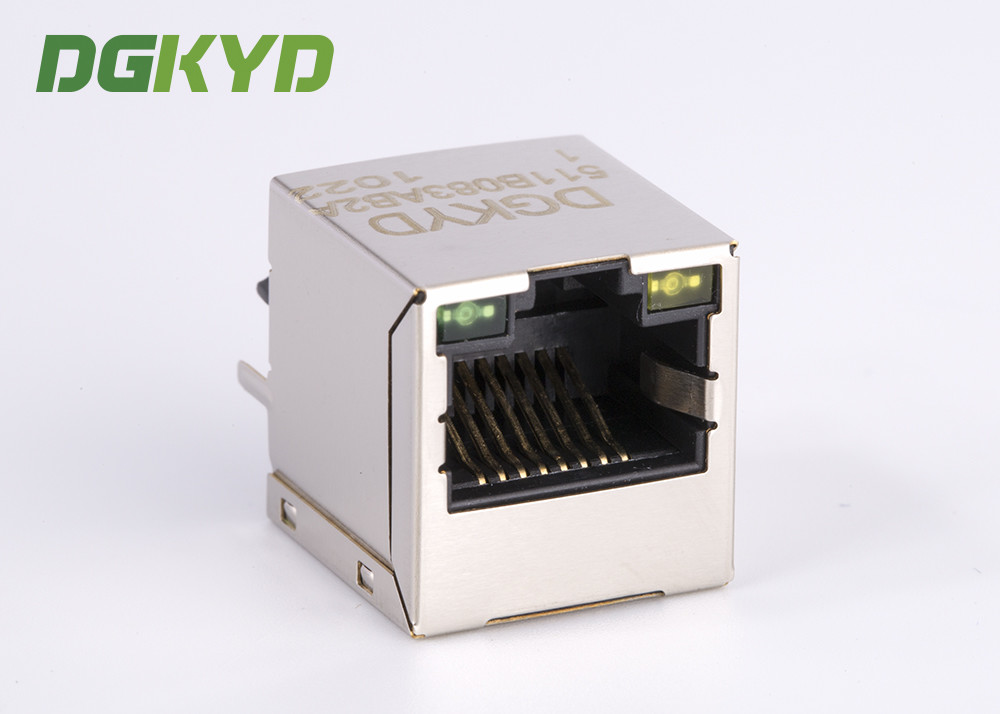

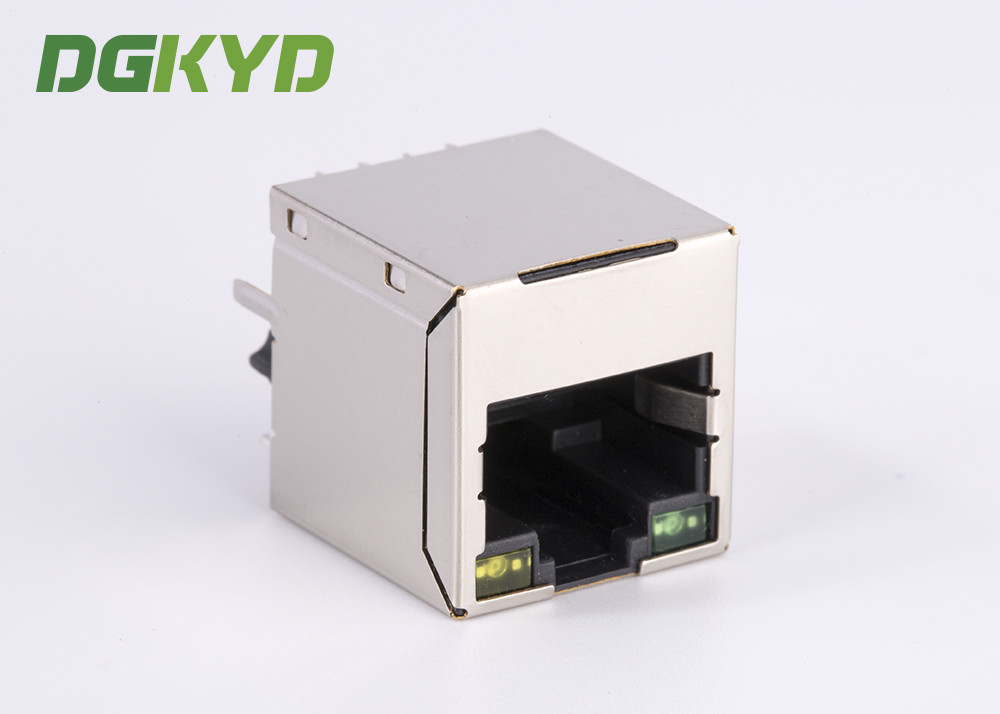

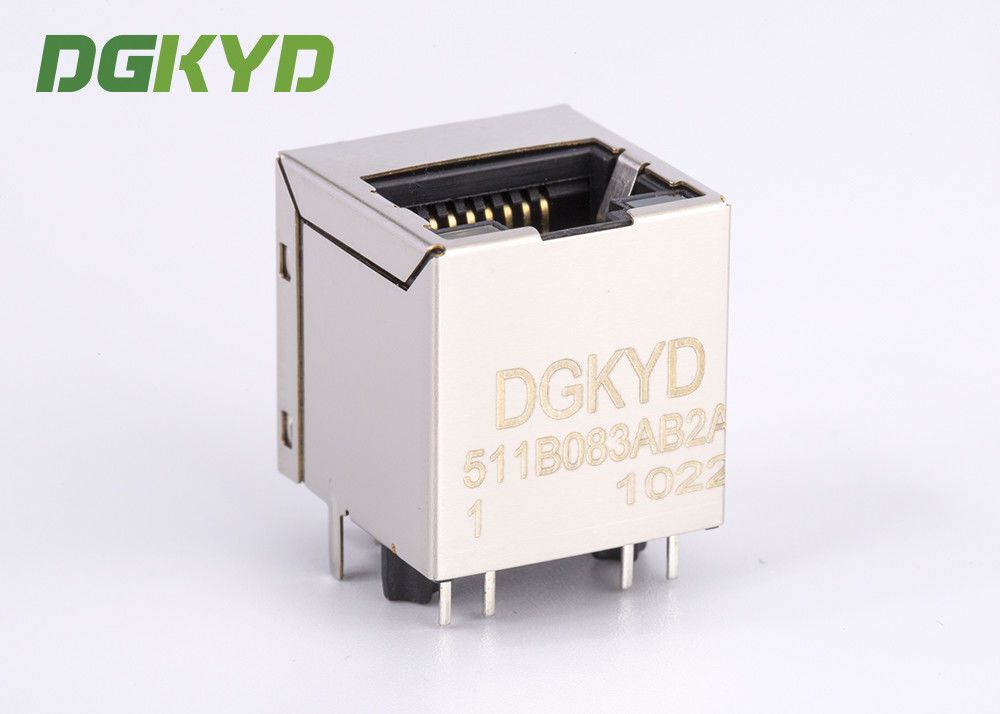

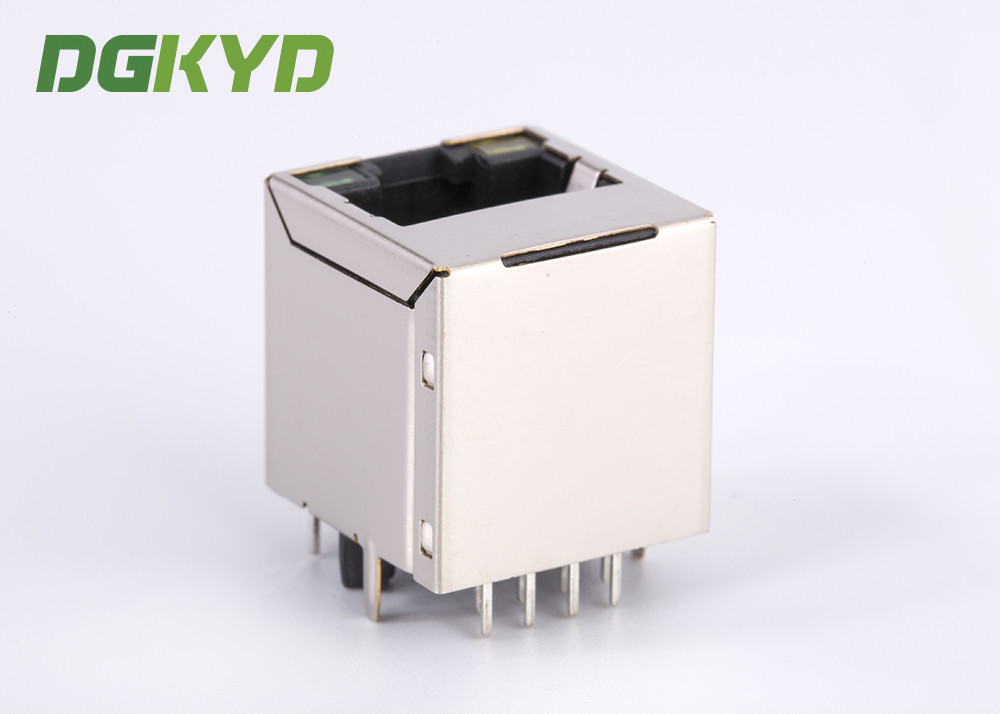

Single Port top insertion RJ45 Plug 10/100BASE with LED Rj45 Lan Jack

10/100 BASE 180 degree Rj45 Lan Jack vetical insertion ethernet connector factory 0

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.

10/100 BASE 180 degree Rj45 Lan Jack vetical insertion ethernet connector factory 3

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,customer firstly ,100% test, 0 defect, short lead time are our best advantages
