Customized 10/100base transformer plug modular rj45 network port PBT Black Housing

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin : DongGuan of China Brand Name : DGKYD
Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number : KRJ-0073NL

Detail Information

Product Name: Magnetic Jack, Modular Jack 8/8, RJ45 Grounding To PCB: Yes
Shielded: Yes Magnetic: Yes

Product Description

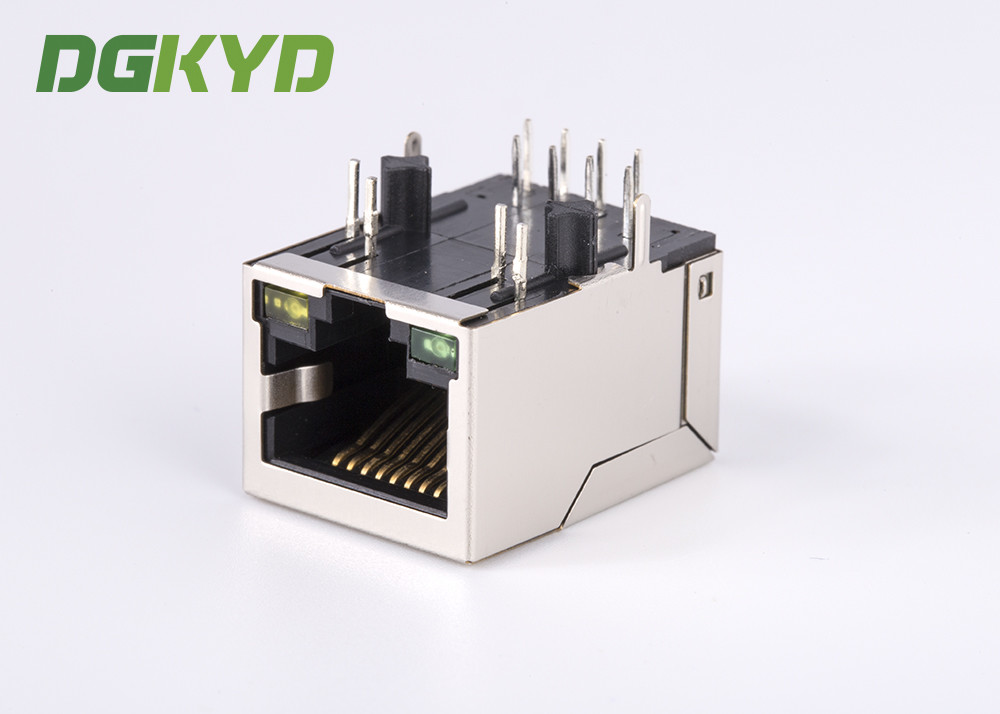

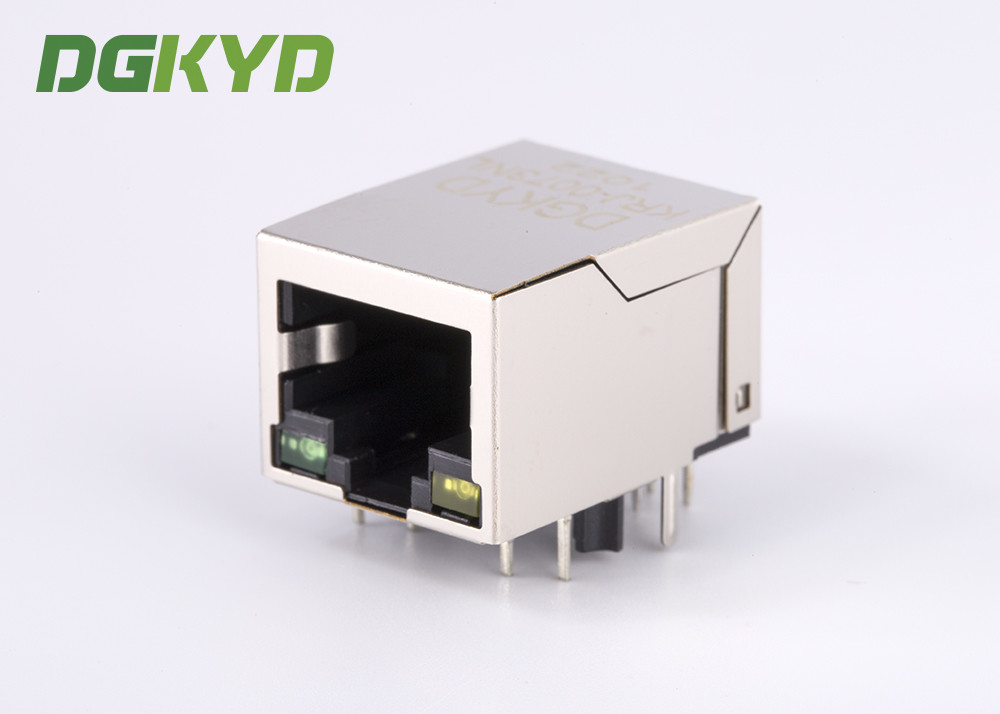

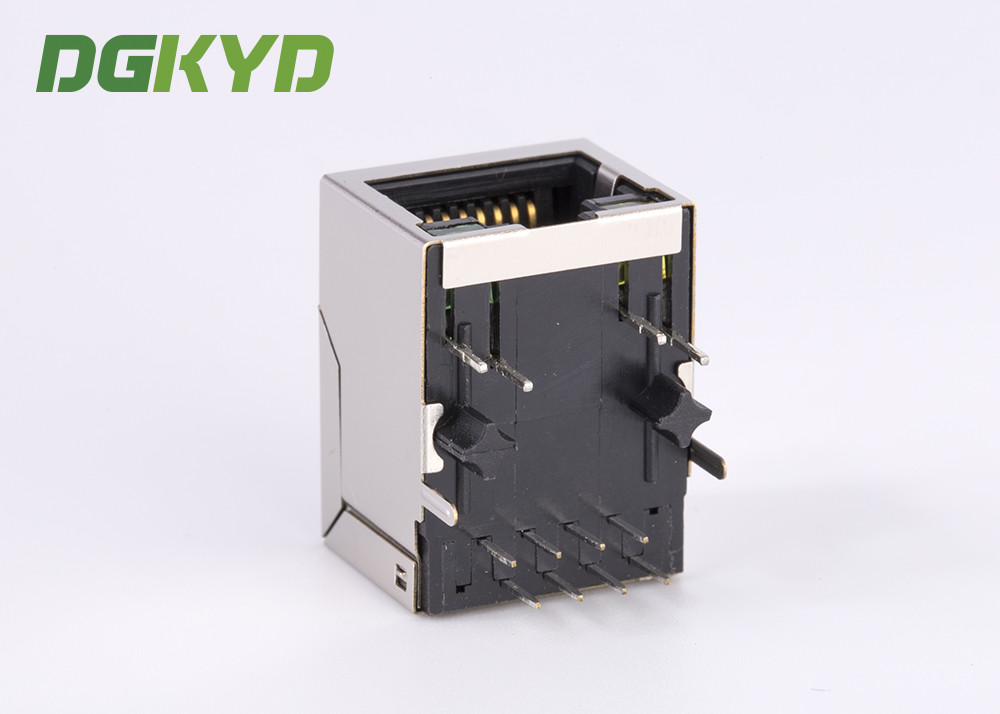

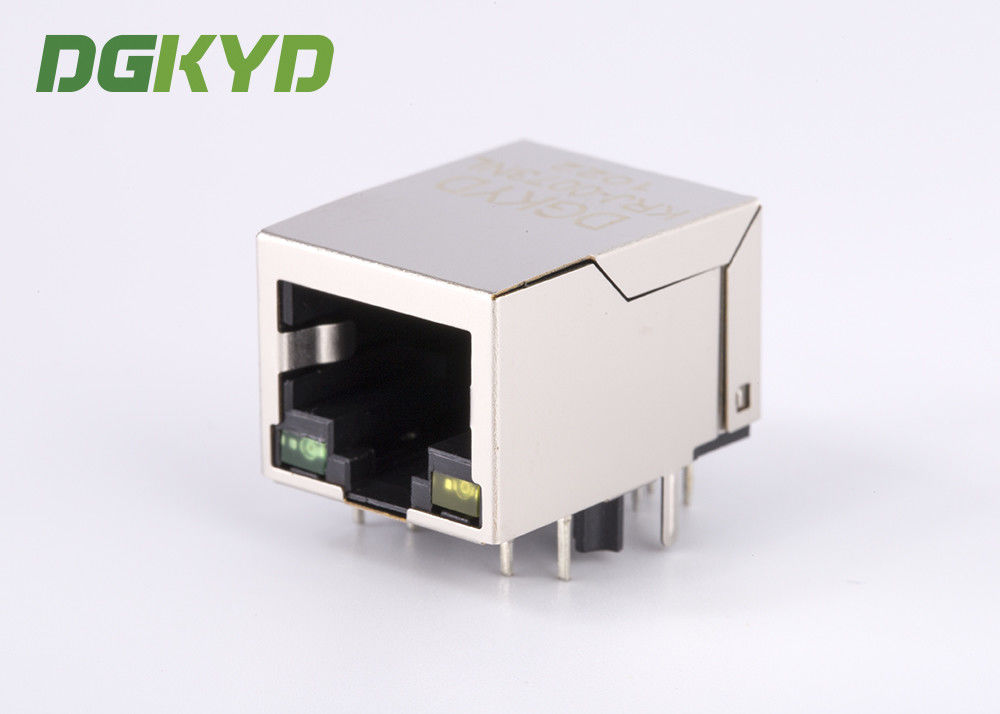

Customized 10/100base 1x1 Tab Down Rj45 Lan Jack / Transformer RJ45 network port with

PBT Black Housing

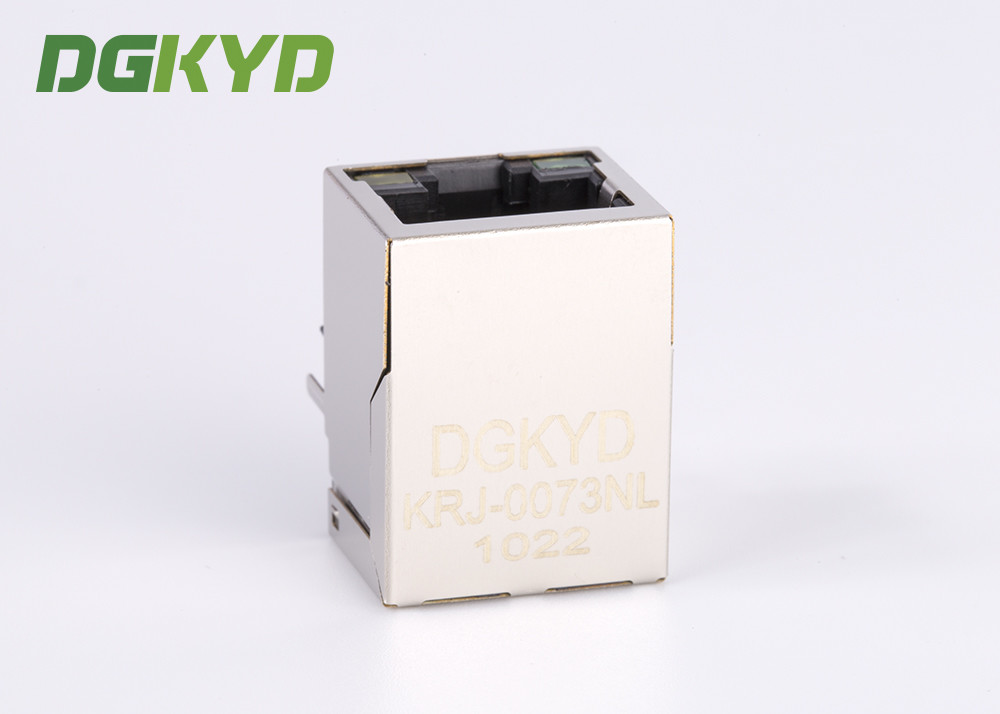

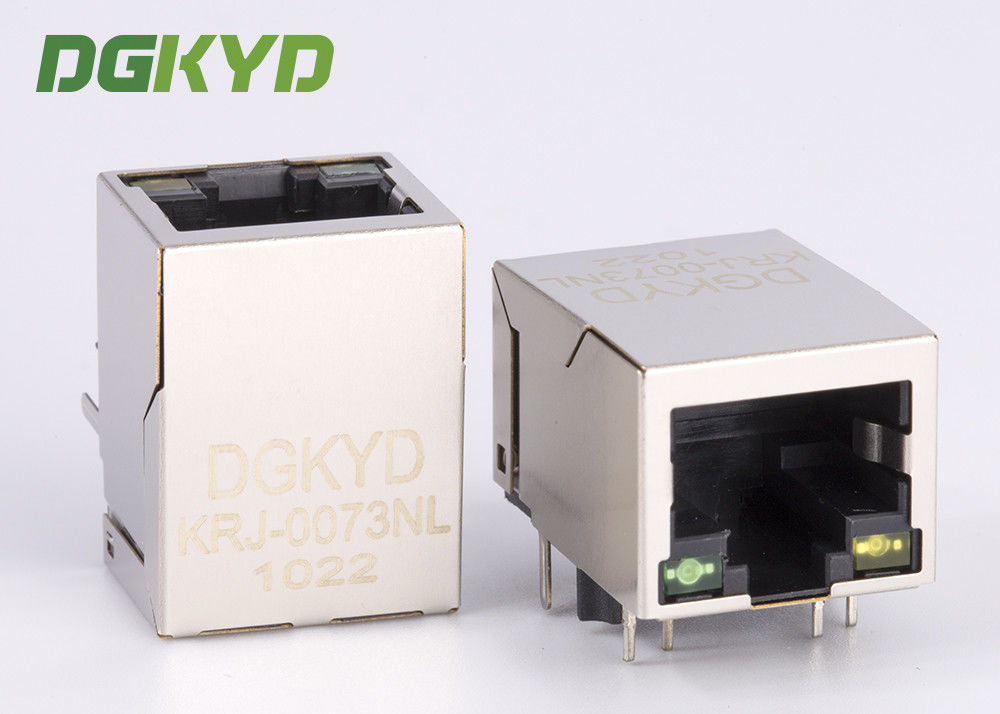

Part Number KRJ-0073NL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Down
Filter With Filter LED Option Without LED
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Housing Material  PBT Polyester Housing Color Black
Operation Temperature -40℃ to +85℃ UL Flammability Rating  UL 94V-0





Customized 10/100base transformer plug modular rj45 network port PBT Black Housing



Note:  RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the

surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger

insert and pull life should be 750 times above.
