Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack

China Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack supplier
Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack supplier Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack supplier Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack supplier Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack supplier Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack supplier Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack supplier

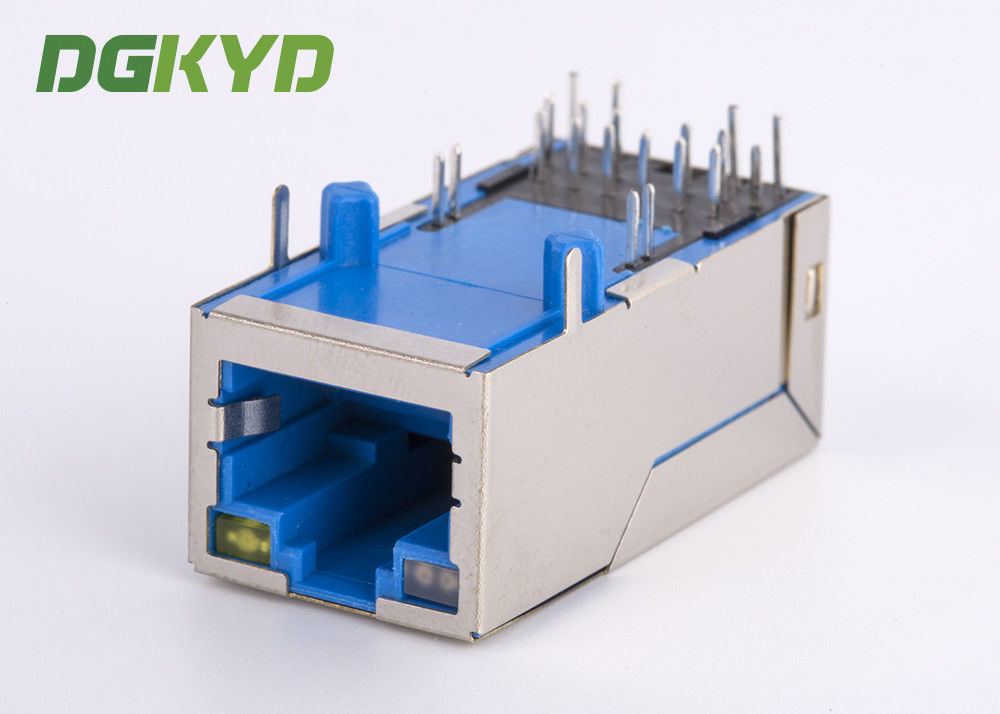

Large Image :  Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: DGKYD411Q117AF5D1DP

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Product Name: Integrated RJ45 Jack Speed: Cat 6
Number Of Contacts Loaded: 8 Port: Single
Metal Shell RJ45: Copper Alloy ,Tin And Nickel Plated RJ45 PCB Terminal: Phosphor Bronze ,Tail-Tin Over Nickl

PoE+ Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M Registered Jack

  • 10/100/1000Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) with GO/Y LEDS
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:16
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:33.0mm
  • LEDS:YES
  • EMI fingers:YES
  • LEFT:Green/Orange,RIGHT:Yellow

Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
