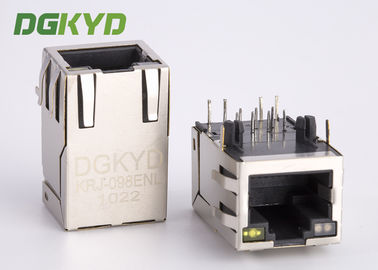

Shieded Cat6 RJ45 jack 8 pin network connector Integrated magnetics for Router
Contact Person : Bernie Gong
Phone Number : +86 189 3816 5239
WhatsApp : 8618938165239
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-118BABNL |
|
Detail Information |
|||
| Product Name: | Integrated RJ45 Female Jack | Number Of Positions: | 10 |
|---|---|---|---|
| RJ45 PCB Terminal: | Phosphor Bronze ,Tail-Tin Over Nickl | Metal Shell RJ45: | Copper Alloy ,Tin And Nickel Plated |
| Port: | Single Port | Number Of Contacts Loaded: | 8 |
Product Description
| DESCRIPTION | |||||
Industrial RJ45 Female connector, gigabit ethernet magnetic rj45 modular jack, 1GB |
|||||
| ELECTRICAL | |||||
| Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement | |||||
| High performance for maximum EMI suppression | |||||
| 350uH minmum OCL with 8mA bias current | |||||
| 1.Current Rating | 1.5 amps | ||||
| 2.Voltage Rating | 125vac | ||||
| 3.Insulation Resistance | 500 MΩmin | ||||
| 4.Contact Resistance | 30 MΩmax | ||||
| 5.Withstanding Voltage | AC 1500V RMS 50Hz or 60Hz 1 min | ||||
| Instertion Loss: | -1.2dB Maximum @100KHz-100MHz | ||||
| Return Loss: | -18dB Minimum @1MHz-30MHz | ||||
| -14dB Minimum @30MHz-60MHz | |||||
| -12dB Minimum @60MHz-80MHz | |||||
| Common Mode Rejection: | -30dB Minimum @1MHz-100MHz | ||||
| Cross Talk: | -30dB Minimum @1MHz-100MHz | ||||
| MECHANICAL | |||||
| 1.Insertion Force | 2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g | ||||
| 8 CONTACTS….900g 10 CONTACTS....1050g | |||||
| 2.Retention Strength | 7.7KG.F min between jack and plug | ||||
| 3.Durability | 800 mating cycles min | ||||
| MATERIAL | |||||
| 1.Housing | ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0) | ||||
| 2.Contact Wire | Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness | ||||
| phosphor bronze alloy selective gold plating over nickel | |||||
| 3.Shield | 0.20~0.25mm thickness brass with tin plated | ||||
| 4.Gold Plating | 3u inch,6u inch,15u inch,30u inch,50u inch | ||||
| 5.RoHS peak wave solder | RoHS peak wave solder temperature rating 240°C±5°C | ||||
| ENVIRONMENTAL | |||||
| Operating Temperature: | -40°C to 85°C | ||||
| Working Temperature | -40°C to 85°C | ||||
| APPLICATION | |||||
| NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK | |||||
| STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX. | |||||
