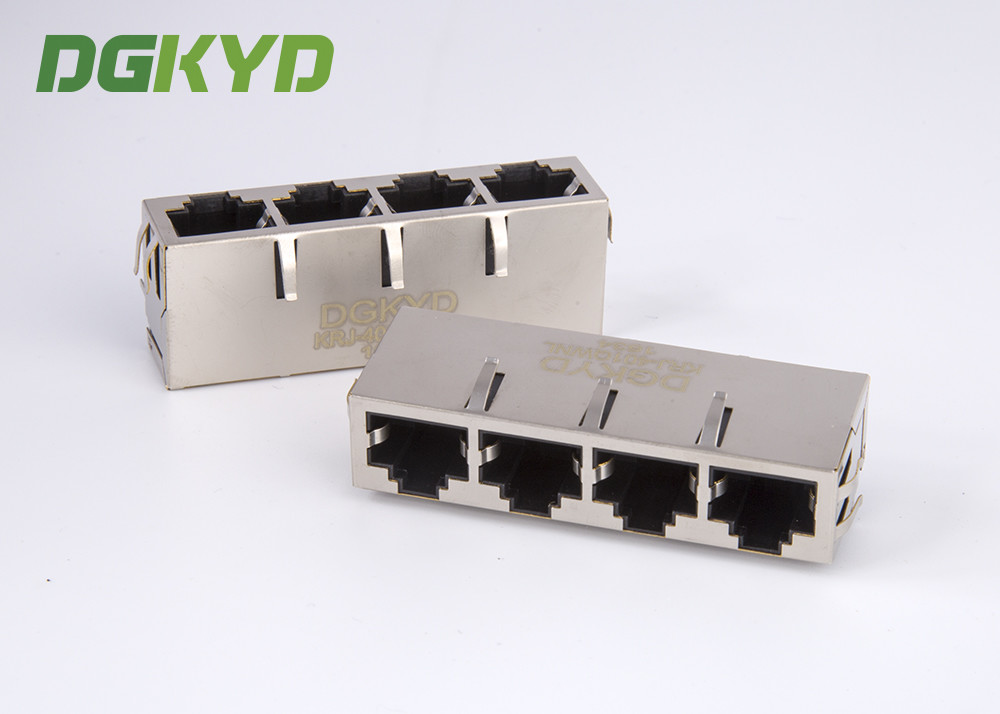

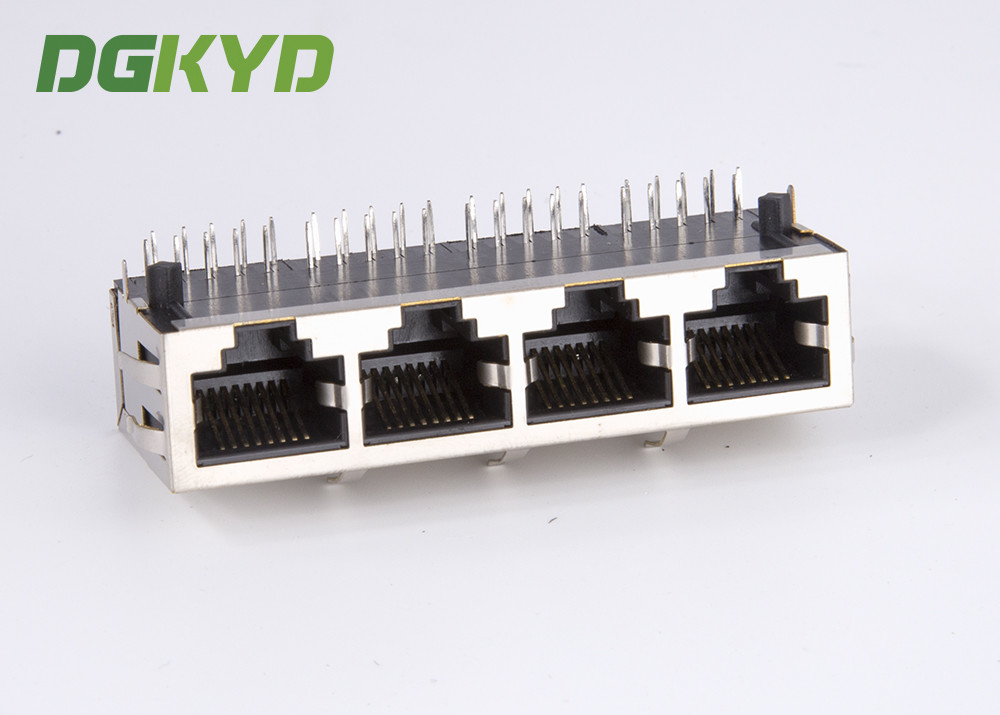

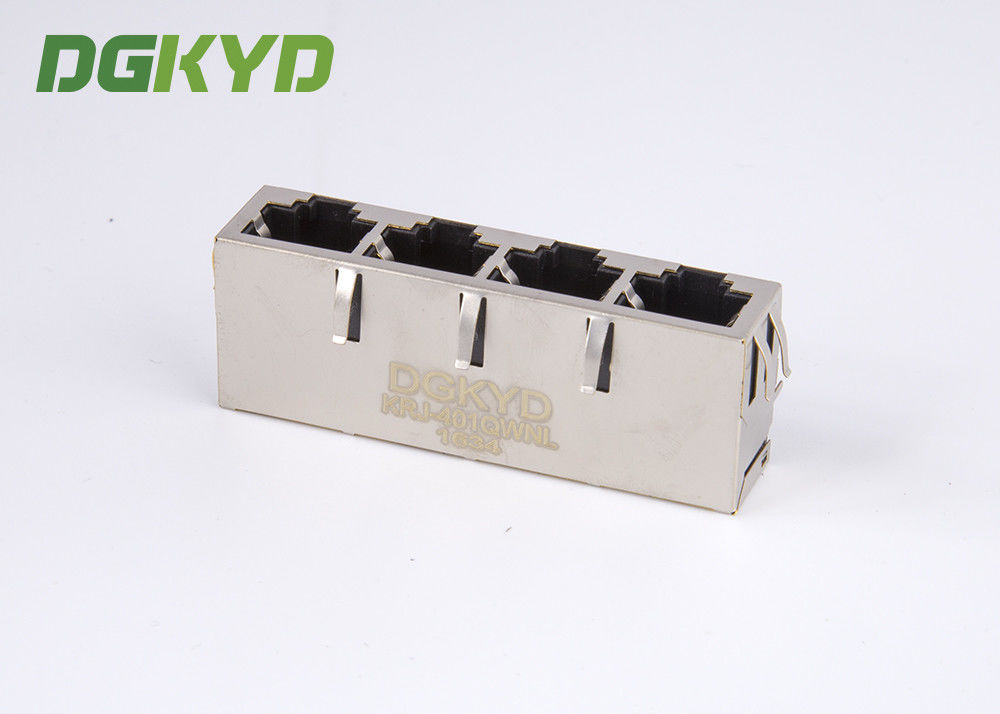

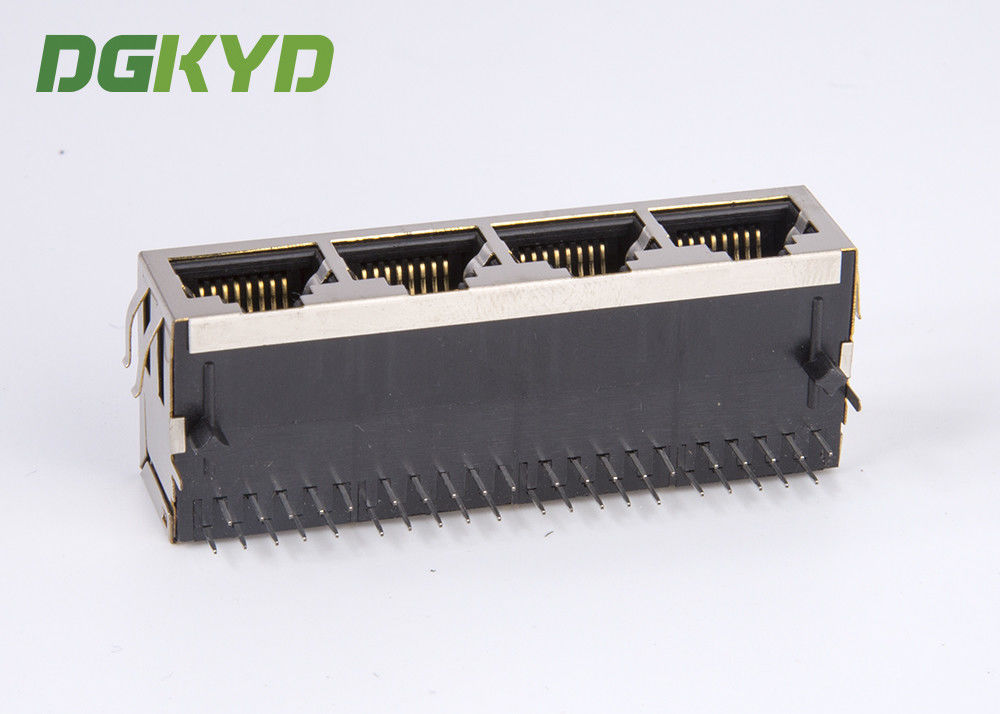

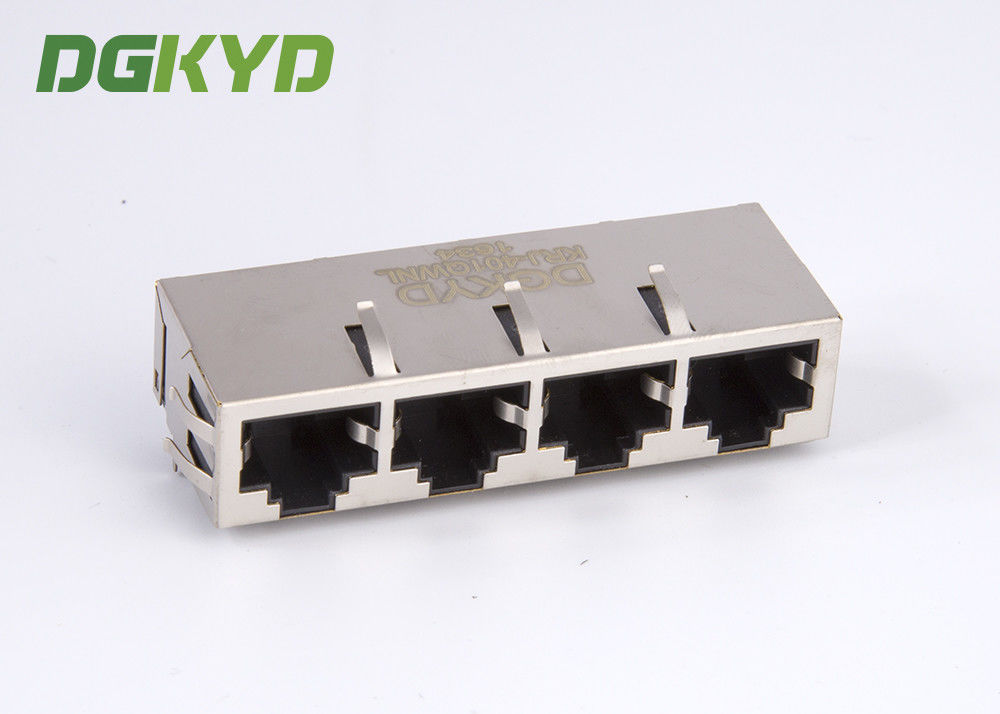

1x4 Ganged quad Port 1000Mb Gigabit Integrated RJ45 Connector modules

China 1x4 Ganged quad Port 1000Mb Gigabit Integrated RJ45 Connector modules supplier
1x4 Ganged quad Port 1000Mb Gigabit Integrated RJ45 Connector modules supplier 1x4 Ganged quad Port 1000Mb Gigabit Integrated RJ45 Connector modules supplier 1x4 Ganged quad Port 1000Mb Gigabit Integrated RJ45 Connector modules supplier 1x4 Ganged quad Port 1000Mb Gigabit Integrated RJ45 Connector modules supplier 1x4 Ganged quad Port 1000Mb Gigabit Integrated RJ45 Connector modules supplier 1x4 Ganged quad Port 1000Mb Gigabit Integrated RJ45 Connector modules supplier

Large Image :  1x4 Ganged quad Port 1000Mb Gigabit Integrated RJ45 Connector modules

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-401QWNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Number Of Positions: 10 Product Name: Integrated RJ45 Female Connector
Number Of Contacts Loaded: 8 Port: 4 Port
Metal Shell RJ45: Copper Alloy ,Tin And Nickel Plated RJ45 PCB Terminal: Phosphor Bronze ,Tail-Tin Over Nickl

 Quad Port 1000 Megabit Integrated RJ45 Connector modules KRJ - 401QWNL

DESCRIPTION
China supplier KRJ-401QWNL quad Port 1000 Megabit Integrated RJ45 Connector modules
ELECTRICAL
Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
High performance for maximum EMI suppression
350uH minmum OCL with 8mA bias current
1.Current Rating 1.5 amps
2.Voltage Rating 125vac
3.Insulation Resistance 500 MΩmin
4.Contact Resistance 30 MΩmax
5.Withstanding Voltage AC 1500V RMS 50Hz or 60Hz 1 min
Instertion Loss: -1.2dB Maximum @100KHz-100MHz
Return Loss: -18dB Minimum @1MHz-30MHz
-14dB Minimum @30MHz-60MHz
-12dB Minimum @60MHz-80MHz
Common Mode Rejection: -30dB Minimum @1MHz-100MHz
Cross Talk: -30dB Minimum @1MHz-100MHz
MECHANICAL
1.Insertion Force 2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g
8 CONTACTS….900g 10 CONTACTS....1050g
2.Retention Strength 7.7KG.F min between jack and plug
3.Durability 800 mating cycles min
MATERIAL
1.Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness
phosphor bronze alloy selective gold plating over nickel
3.Shield 0.20~0.25mm thickness brass with tin plated
4.Gold Plating 3u inch,6u inch,15u inch,30u inch,50u inch
6.RoHS peak wave solder RoHS peak wave solder temperature rating 240°C±5°C
ENVIRONMENTAL
Operating Temperature: -40°C to 85°C
Working Temperature -40°C to 85°C
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.



  • 10/100/1000Base-Tx RJ45 4 port 1X4 Side Entry (Right Angle) without LED
  • 4 port 1X4 Tab-Down 90 degree RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • Number of positions:10
  • Number of contacts loaded:8
  • Length:21.3mm
  • LEDS:NO
  • EMI fingers:YES



► Product Drawing



1x4 Ganged quad Port 1000Mb Gigabit Integrated RJ45 Connector modules

► FAQ


1.When can we get the reply?
Any inquiries will be replied within 12 hours.
We will try our best to support you.


2.What about minimum order quantity?
We have no limit for MOQ,so you can even buy only 1 piece.
Welcome to buy samples to test first.


3.Can customize,modify and develop products according to the design drawing?
Yes,we provide OEM service and can customize products according to the drawing.


4.How will you control product quality?
We strictly control every detail of production, and every product is inspected by our QC team before delivery. Moreover,our production is abided by ISO9000, 3C, CE and FCC.


5.What about delivery time?
Sample, We will send to you within 3 days after payment received. Production for big quantity needs 7 to 15 days. Andit also depends on product and quantity.
If want to know the exact time. Email us the quantity,

We will check the time for you.


6.What about terms of payment?
Payment terms: T/T, west Union Paypal and L/C etc.


7.How do I know that you have sent the products out?
Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times


8.How you will send the goods to us?
We will send the goods to you by DHL,FEDEX,UPS, EMS,AIR etc.
