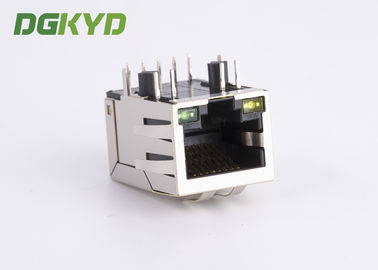

Gigabit rj45 connector female 1000Mb Ethernet jack with magnetics Y/G LED

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin : DongGuan of China Brand Name : DGKYD
Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number : DGKYD111Q096DB2A1D

Detail Information

Product Name: RJ45 Female Jack Number Of Positions: 10
Number Of Contacts Loaded: 8 Port Structure: 1
Metal Shell RJ45: Copper Alloy ,Tin And Nickel Plated RJ45 PCB Terminal: Phosphor Bronze ,Tail-Tin Over Nickl
Housing Material: PBT Polyester Latch: Tab Down

Product Description

1000 Megabit female rj45 connector Copper Alloy , Tin and Nickel plated shell



ELECTRICAL
Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
High performance for maximum EMI suppression
350uH minmum OCL with 8mA bias current
1.Current Rating 1.5 amps
2.Voltage Rating 125vac
3.Insulation Resistance 500 MΩmin
4.Contact Resistance 30 MΩmax
5.Withstanding Voltage AC 1500V RMS 50Hz or 60Hz 1 min
Instertion Loss: -1.2dB Maximum @100KHz-100MHz
Return Loss: -18dB Minimum @1MHz-30MHz
-14dB Minimum @30MHz-60MHz
-12dB Minimum @60MHz-80MHz
Common Mode Rejection: -30dB Minimum @1MHz-100MHz
Cross Talk: -30dB Minimum @1MHz-100MHz
MECHANICAL
1.Insertion Force 2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g
8 CONTACTS….900g 10 CONTACTS....1050g
2.Retention Strength 7.7KG.F min between jack and plug
3.Durability 800 mating cycles min
MATERIAL
1.Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness
phosphor bronze alloy selective gold plating over nickel
3.Shield 0.20~0.25mm thickness brass with tin plated
4.Gold Plating 3u inch,6u inch,15u inch,30u inch,50u inch
5.RoHS peak wave solder RoHS peak wave solder temperature rating 240°C±5°C
ENVIRONMENTAL
Operating Temperature: -40°C to 85°C
Working Temperature -40°C to 85°C
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.



Gigabit rj45 connector female 1000Mb Ethernet jack with magnetics Y/G LED



Competitive Advantage:



Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly,100% test, 0 defect, short lead time are our best advantages



Customer Satisfaction:



Please don’t hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.



Payment Terms:



There are many payment methods available such as Paypal,Escrow,Bank wire,Western Union and Moneygram ect



Return Policy:



If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay addtional shipping fees incurred and items returned should be kept in their original status.



Feedback:



Since your feedback is very important to our busines's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !
