1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-CB329YGZENL

Detail Information

Product Name:

Extra Low Profile RJ45 Connector SMD

Performance Category:

Cat6

High Light:

rj45 10 pin connector

rj45 10 pin

RJ45 Ethernet Connector SMD

Product Description

1Port Tab Up Gold Plate RJ45 Ethernet Connector , SMD cat6 cable rj45 connectors with plating

1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile 0

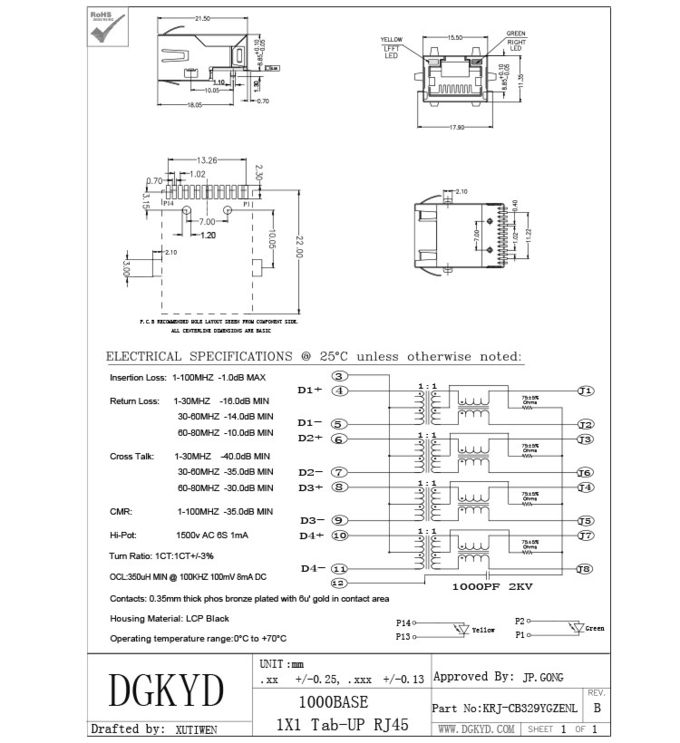

Descriptions:

10/100/1000Base-Tx SMD RJ45 1X1 Vertical with LEDS with female
1port Tab-Up Plate RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :0℃ to +70℃
Storage temperature range :-40℃ to +85℃
Number of positions:10
Number of contacts loaded:8
Shield:YES
Rohs compliant
Length:21.3mm
LEDS:YES
EMI fingers:YES
LEFT LED:Yellow,RIGHT LED:Green
Usage:KRJ-CB329YGZENL

Single-Port RJ45 connectors are robust, high-reliability magnetic jacks that provide an automated reflow-solder assembly solution designed to meet the uppermost customer demands for mechanical, electrical and environmental performance while offering cost advantages associated with increased production output
