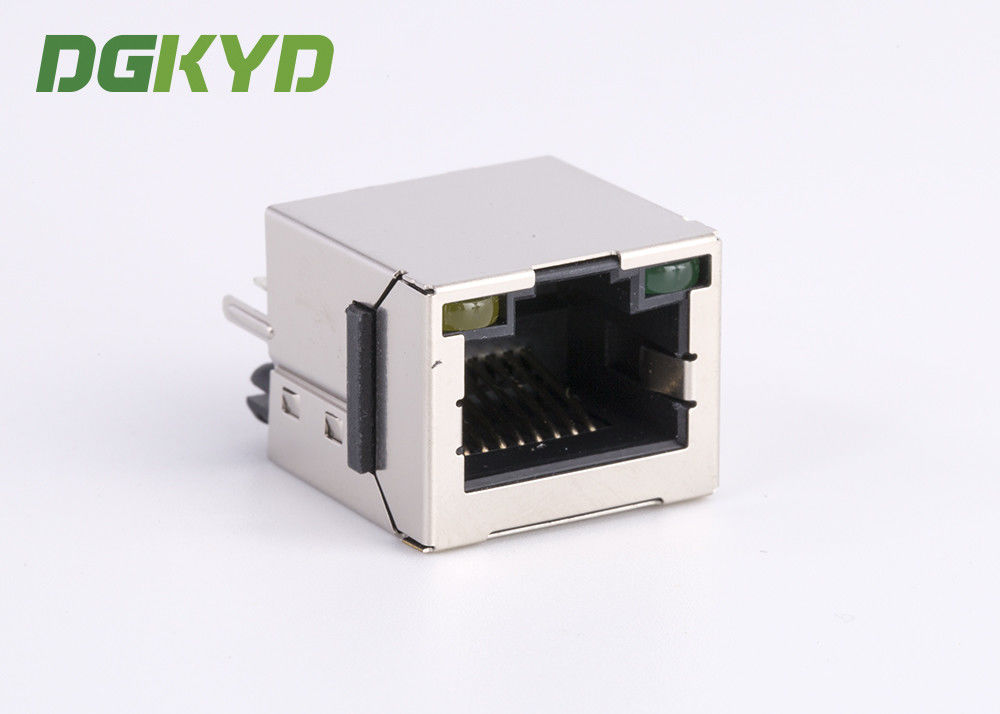

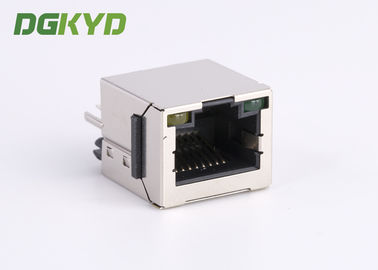

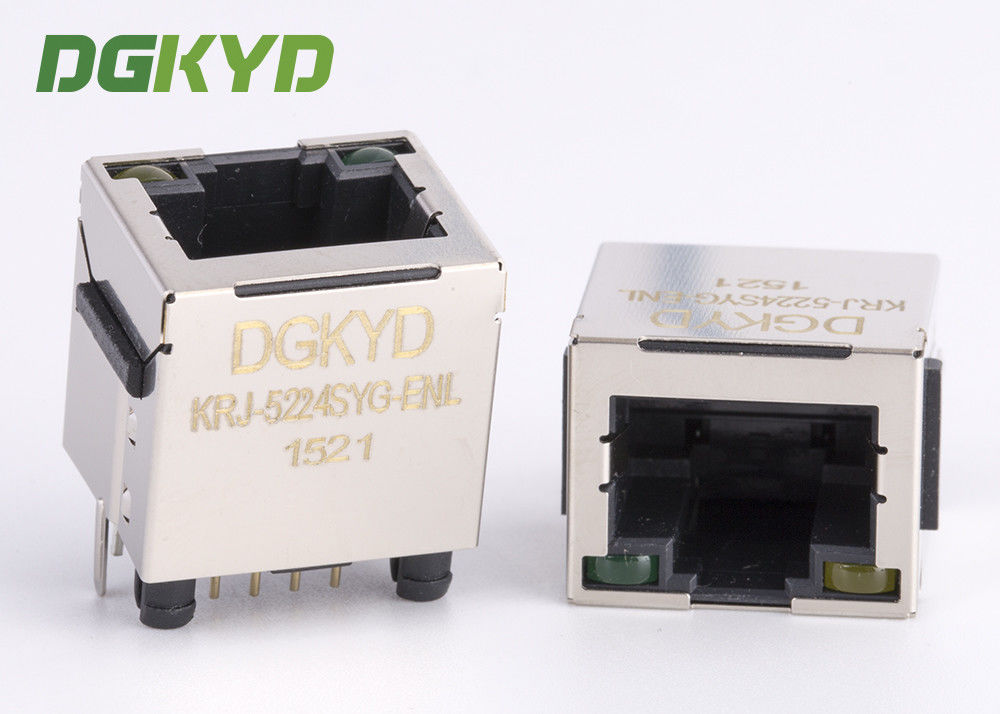

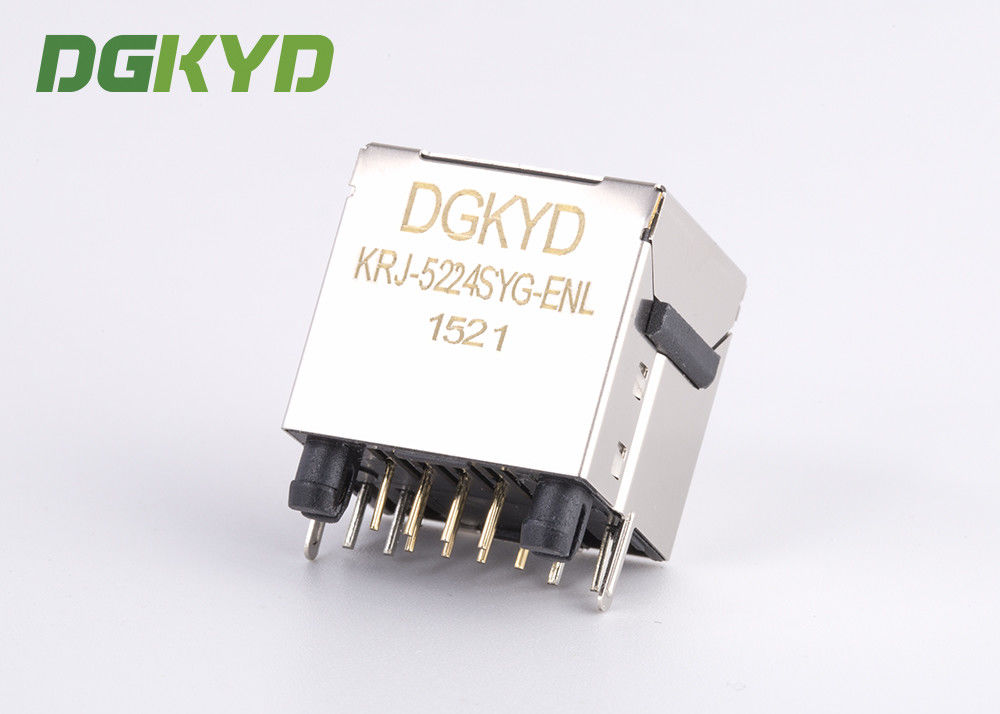

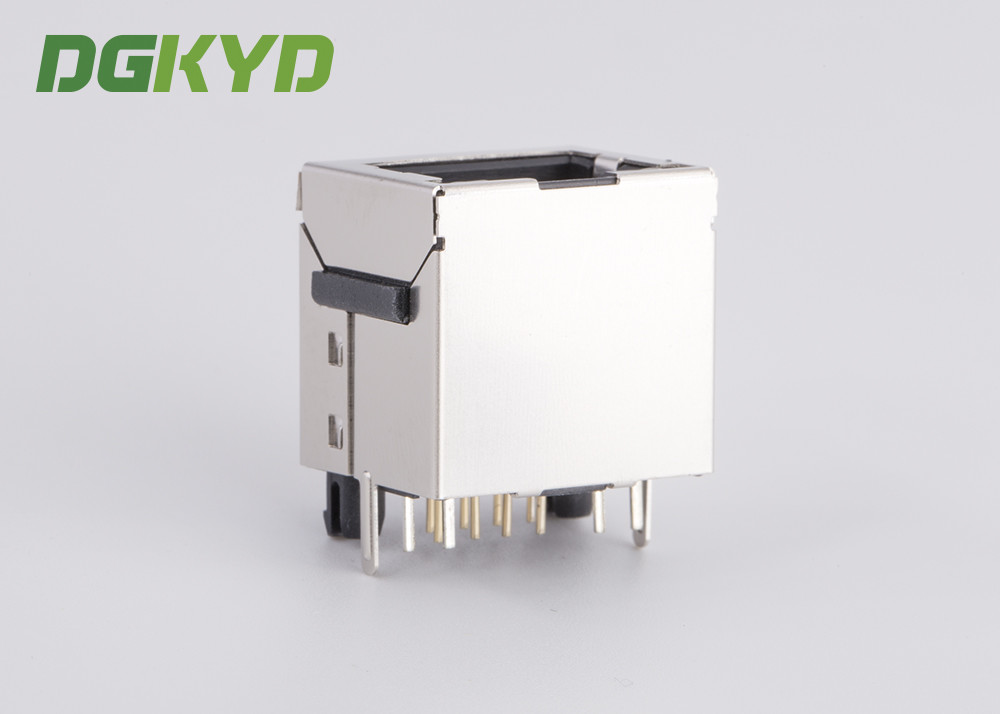

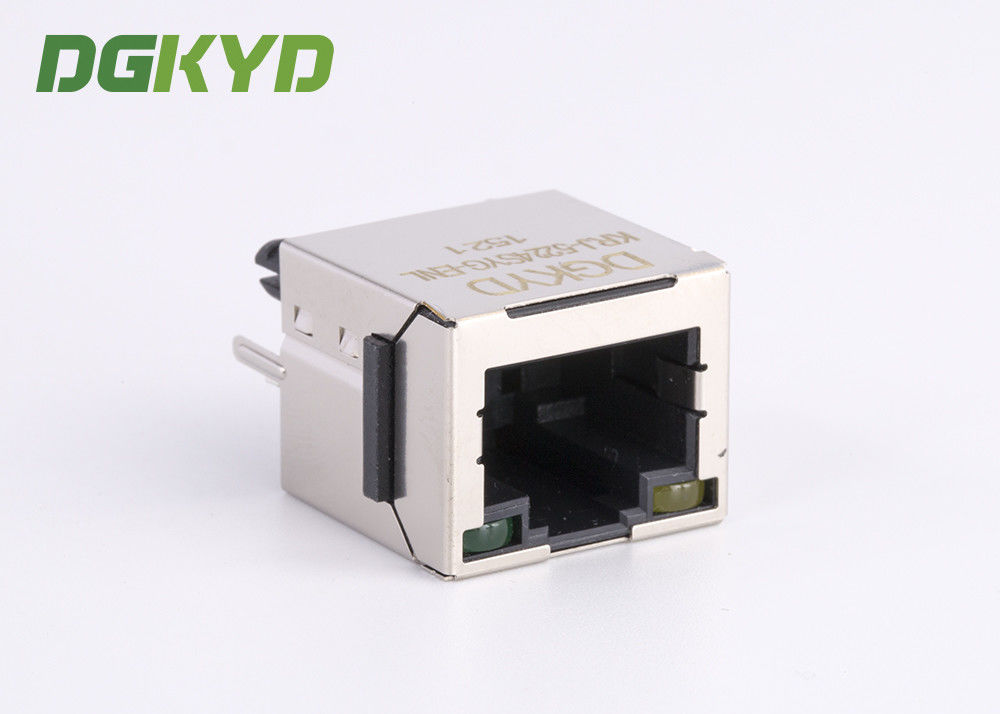

180° Top Entry Shield Rj45 Lan Jack With Panel Stops For Internet TV Box

Name: 180° Top Entry Shield Rj45 Lan Jack With Panel Stops For Internet TV Box
Brand: DGKYD
SKU: KRJ-5224SYGENL
Rating: 4.8 (100 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-5224SYGENL

Detail Information
Product Name:	RJ45 Modular Jack	Gender:	Female
Application:	Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc	Feature:	Shielded RJ45 Network Port Withou Transformer
OEM/ODM:	Yes	Type:	RJ45
High Light:	rj45 lan connector , rj45 lan port , Top Entry Shield Rj45 Lan Jack

Product Description

Shielded Internet Set-top Box RJ45 Modular Jack without Transformer 180° with panel stops

Descrition:

1X1 Single port RJ45 Modular jack without transformer
180 degree top entry RJ45 connctor
Insertion Force:2.2KG.F.max
Retention Strength;7.7KG.Fmin between jack and plug
Durabbilith:600mating cycles min
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:YES
Rohs compliant(GP)
LEDS:NO
EMI fingers:NO

Material:

Housing :ABS RESIN(UL94V-0),PBT(UL94V-0),PA66(UL94V-0),PA46(UL94V-0)optional
Contact Wire:Diameter 0.45mm phosphor bronze gold plating over nickel,0.35mm thickness phosphor bronze alloy selective gold plating over nickel

3.Shield:0.20~0.25mm thickness brass with tin plated

4.Gold Plating :3u inch ,6u inch,15u inch,30u inch,50u inch
