Shield Right Angle 1X8 Port Ganged RJ45 Multiple Port Connectors Black

China Shield Right Angle 1X8 Port Ganged RJ45 Multiple Port Connectors Black supplier
Shield Right Angle 1X8 Port Ganged RJ45 Multiple Port Connectors Black supplier Shield Right Angle 1X8 Port Ganged RJ45 Multiple Port Connectors Black supplier Shield Right Angle 1X8 Port Ganged RJ45 Multiple Port Connectors Black supplier Shield Right Angle 1X8 Port Ganged RJ45 Multiple Port Connectors Black supplier Shield Right Angle 1X8 Port Ganged RJ45 Multiple Port Connectors Black supplier Shield Right Angle 1X8 Port Ganged RJ45 Multiple Port Connectors Black supplier

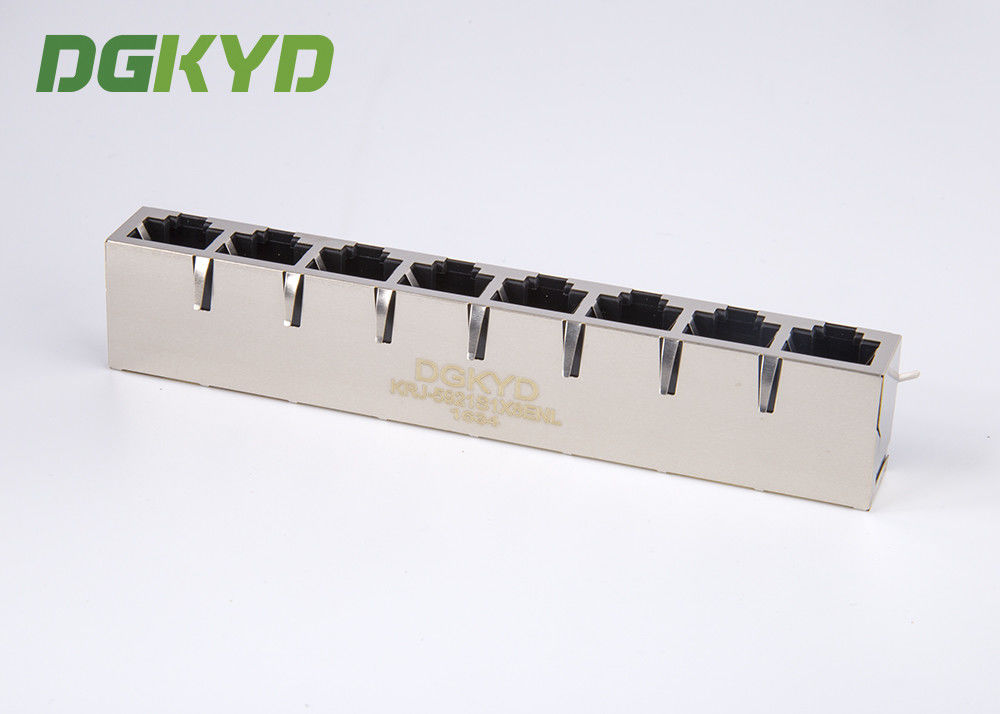

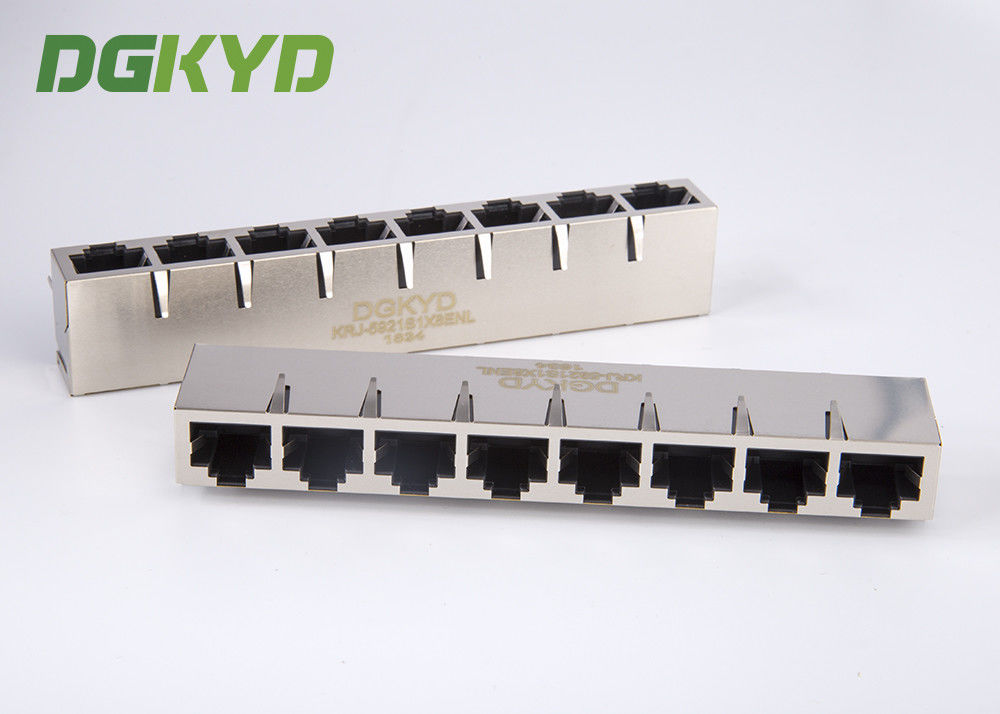

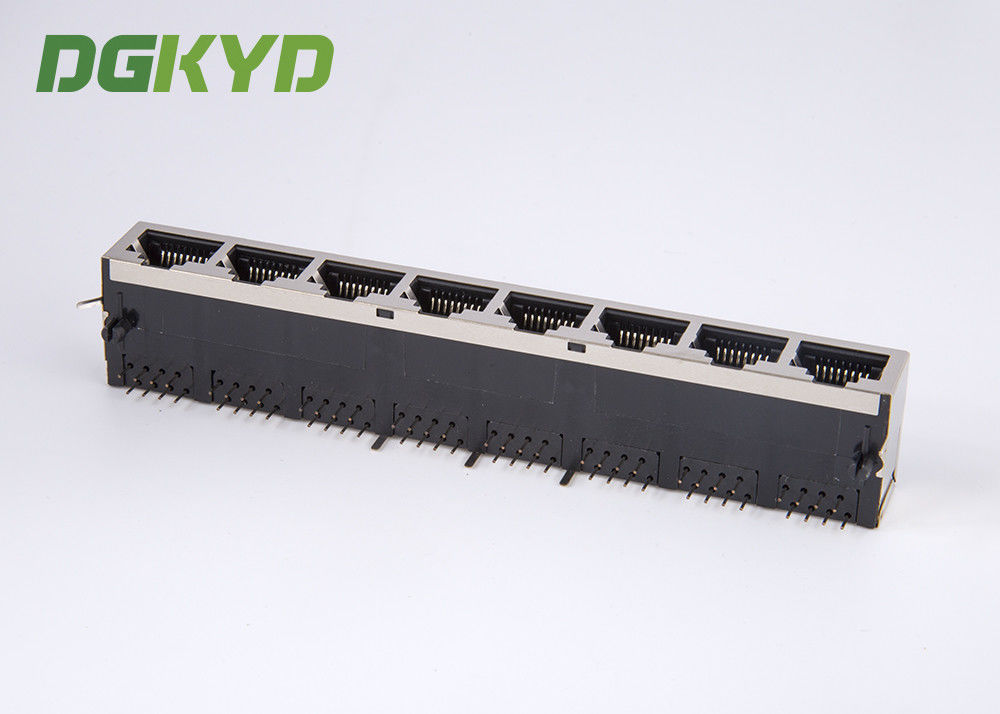

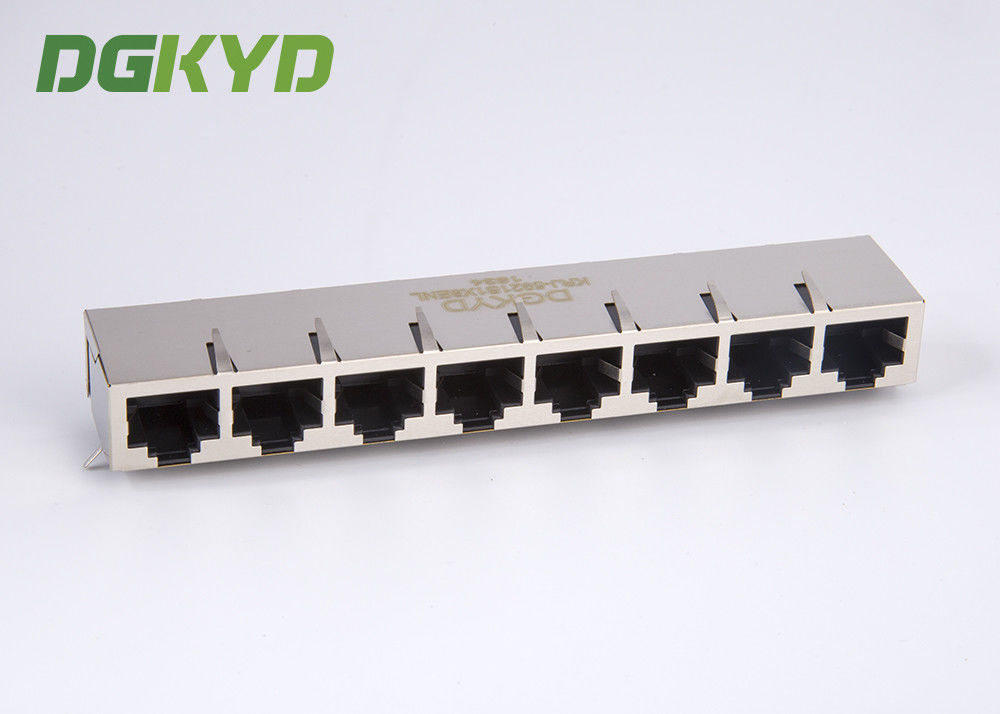

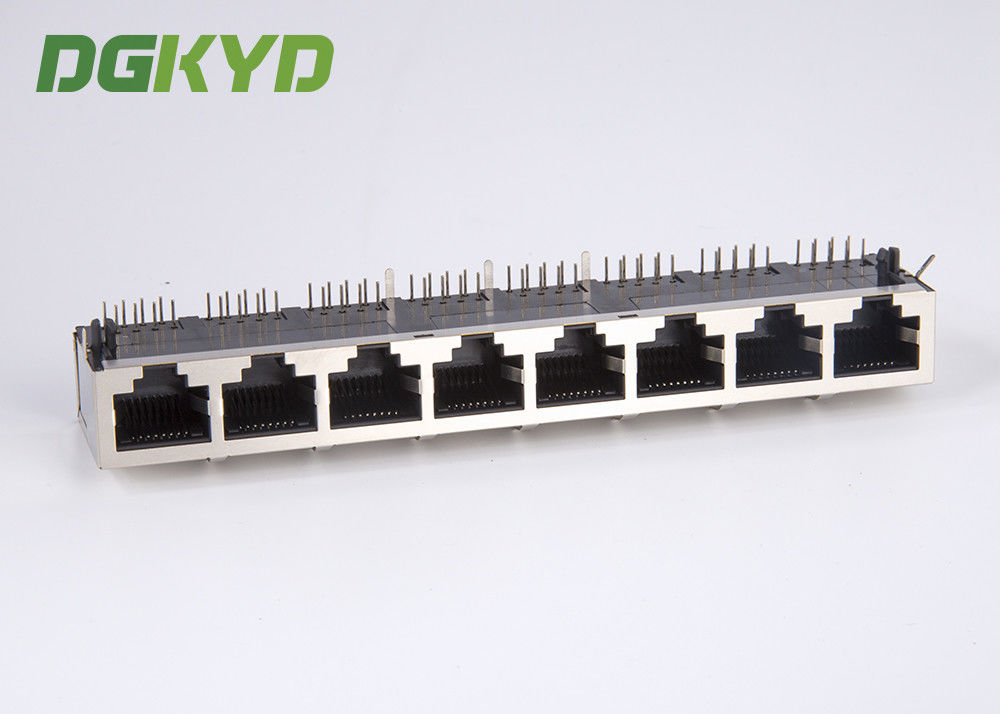

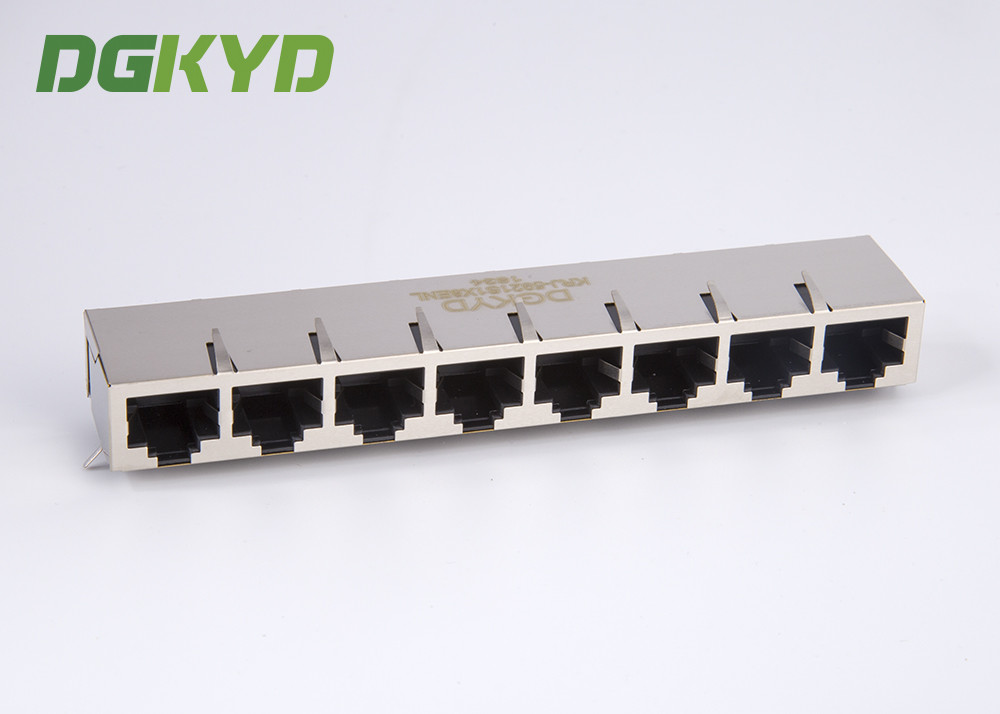

Large Image :  Shield Right Angle 1X8 Port Ganged RJ45 Multiple Port Connectors Black

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-5921S1X8ENL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Jack Type : RJ45 Jack Transformer: Without Transformer
Shielded : Yes PCB Mount: Yes
Performance: 10/100/1000 BASE-TX Connector Type : Connector Assembly

Shield right angle 1X8 port ganged Rj45 connector combo tab down ethernet scoket

Configuration Features

  • Port Configuration  Multiple

  • Jack Configuration  1 x 8

  • Number of Positions  8

Body Features

  • LED Color (Top Right)  n/a

  • Color  Black

  • Shield Material  Coppor alloy

  • LED Color (Top Left)  n/a

Contact Features

  • Solder Tail Contact Plating Material  Tin over Nickel

  • Contact Mating Area Plating Thickness  0.6 µin 

  • Contact Base Material  Phosphor Bronze

  • Number of Contacts Loaded  8

  • Contact Mating Area Plating Material  Gold

Termination Features

  • Termination Method to PC Board  Through Hole - Press-Fit

Mechanical Attachment

  • Panel Mount Retention  Without

  • PCB Mounting Style  Through Hole





► Product Drawing


Shield Right Angle 1X8 Port Ganged RJ45 Multiple Port Connectors Black
