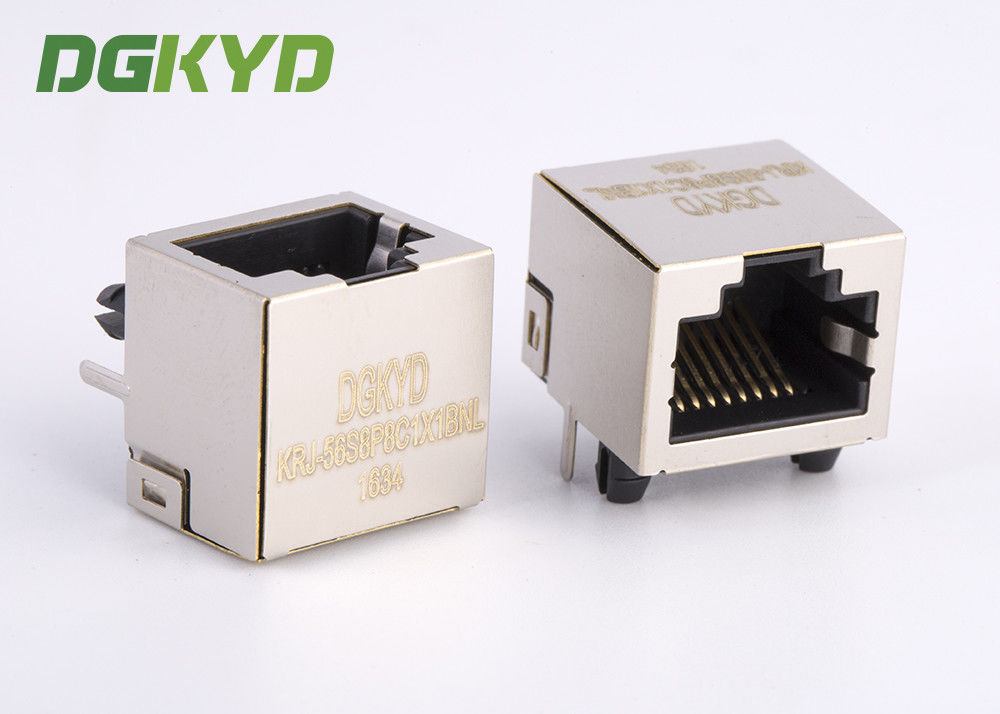

Single Port Side Entry 8P8C Ethernet RJ45 Shielded Connector RJ45 Modular Jack

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-56S8P8C1X1BNL

Detail Information

Modular Jack & Plug Interface Type: RJ45 Without Transformer Port Configuration: Single
Connector Style: Jack Gender: Female
Shielded: Metal Shielded Speed: 10/100/1000 Base-tx
Status Indicator: NONE Latch Orientation: LATCH UP

Product Description

Factory Customized Shield single port side entry 8P8C ethernet connector RJ45 modular jack

ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40℃ to +85℃
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION NONE
LATCH ORIENTATION LATCH UP
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK



















































  • Extensive temperature range between -40…+85 degrees C
  • Minimum product life requirement of 10 years
  • 260 degrees C PIP soldering reflow capability
  • Plating thickness 0,76µm [30µinch] gold over 1,27µm [50µinch] nickel



Applications:

  • Programmable Logic Controllers
  • IO Modules
  • Servo Drive
  • Industrial PC
  • All Industrial applications requiring Ethernet or RJ45 connectivity

► Product Drawing


Single Port Side Entry 8P8C Ethernet RJ45 Shielded Connector RJ45 Modular Jack
