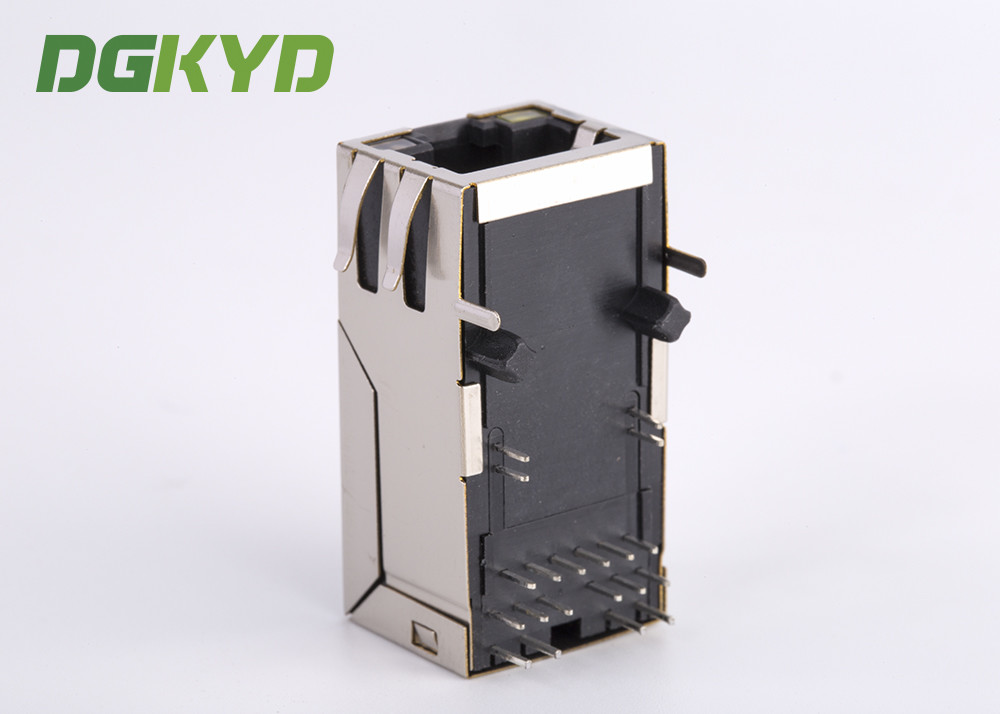

33mm length tab up 12 Pins 1000 BASE RJ45 Modular Jacks with gigabit transformer

China 33mm length tab up 12 Pins 1000 BASE RJ45 Modular Jacks with gigabit transformer supplier
33mm length tab up 12 Pins 1000 BASE RJ45 Modular Jacks with gigabit transformer supplier 33mm length tab up 12 Pins 1000 BASE RJ45 Modular Jacks with gigabit transformer supplier 33mm length tab up 12 Pins 1000 BASE RJ45 Modular Jacks with gigabit transformer supplier 33mm length tab up 12 Pins 1000 BASE RJ45 Modular Jacks with gigabit transformer supplier 33mm length tab up 12 Pins 1000 BASE RJ45 Modular Jacks with gigabit transformer supplier 33mm length tab up 12 Pins 1000 BASE RJ45 Modular Jacks with gigabit transformer supplier

Large Image :  33mm length tab up 12 Pins 1000 BASE RJ45 Modular Jacks with gigabit transformer

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-339KNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc Feature: Shielded RJ45 Network Port
OEM/ODM: Yes Type: Multi Pin Rj45 Magjack
Gender: Rj45 Receptacle Product Name: RJ45 Modular Jack

33.0mm 1000BASE 12 Pin RJ45 Modular Jacks with Led and EMI Fingers 12P8C



33mm length tab up 12 Pins 1000 BASE RJ45 Modular Jacks with gigabit transformer





Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

ELECTRICAL
Current Rating: 1.5A per pin
Voltage Rating: 125V AC
Contact Resistance: 50mΩ
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 1000V AC



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
